Electrical Component Locator: Grounds
GROUNDS LOCATION
| Component | Location |
|---|---|
| G100 | On right side of engine compartment, near fenderwell. |
| G101 (6.5L VIN F) | Near thermostat housing. |
| G101 (7.4L VIN J) | Near thermostat housing. |
| G102 | Engine harness, near generator bracket. |
| G102 (6.5L VIN F) | Near A/C compressor. |
| G103 (4.3L VIN W) | Engine harness, near generator bracket. |
| G103 (5.0L VIN M) | On rear of right cylinder head. |
| G103 (5.7L VIN R) | On rear of right cylinder head. |
| G103 (6.5L VIN F) | Engine harness, near generator bracket. |
| G103 (7.4L VIN J) | On rear of right cylinder head. |
| G104 | On right framerail, near front of engine. |

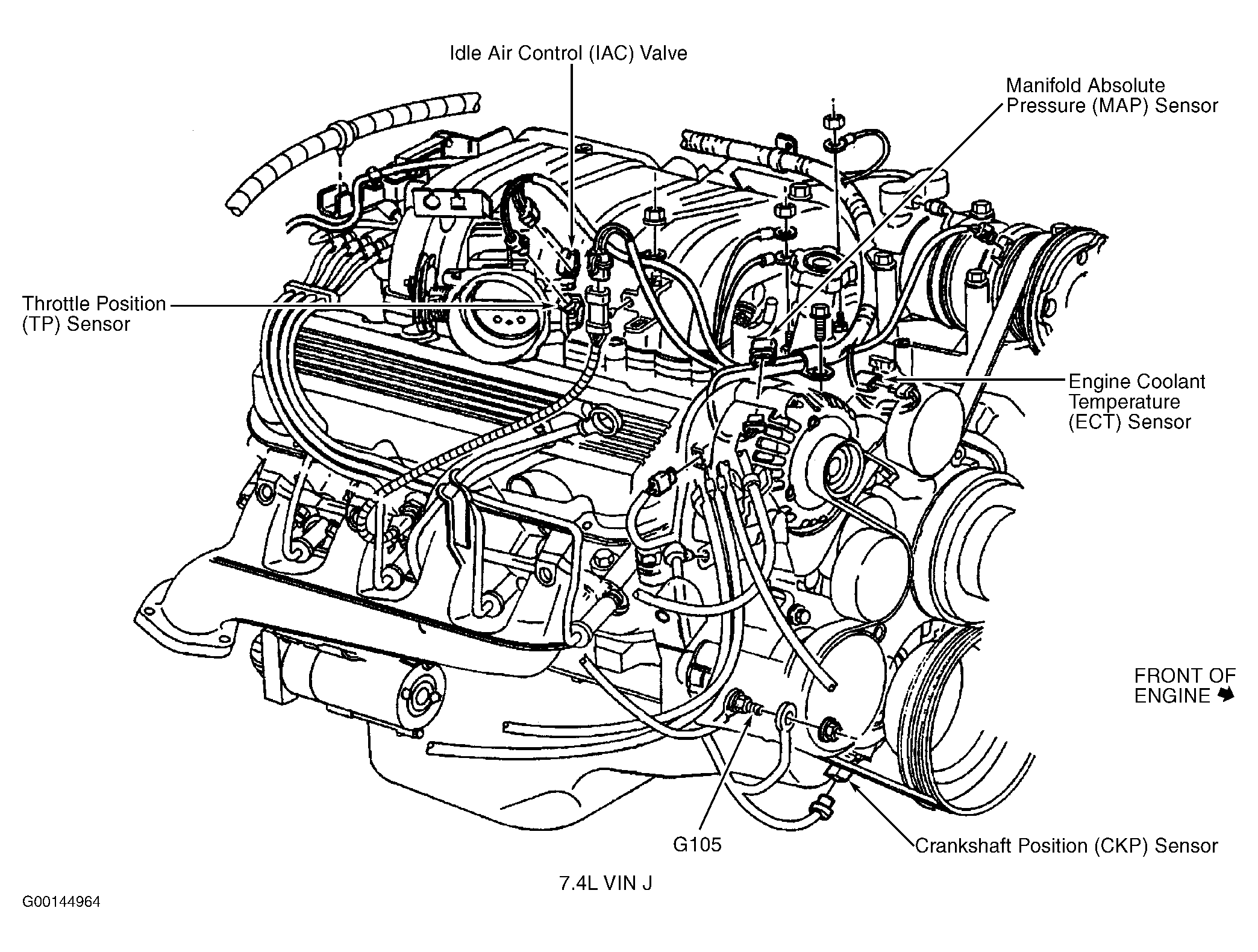

| G105 | On right lower front of engine. See Figure . |
| G108 | On left side of engine compartment, near fenderwell. |
| G109 | On right side of engine compartment, near fenderwell. |
| G110 | Next to battery. |
| G112 | Under brake master cylinder. |
| G200 | Behind left kick panel. |
| G201 | Behind left kick panel. |
| G202 | Behind left kick panel. |
| G300 | On left framerail, near auxiliary battery. |
| G400 | On left "D" pillar. |
| G401 | On right "D" pillar. |
| G402 | On right "D" pillar. |
