Park/Neutral Position Switch: Installation

1. Align the flats of the shift shaft with the switch. See Fig 1 . Install the PNP switch mounting bolts. Tighten the bolts to specification. See TORQUE SPECIFICATIONS  .
2. Ensure that the engine will only start in PARK or NEUTRAL position. Readjust the switch if the engine will start in any other position.

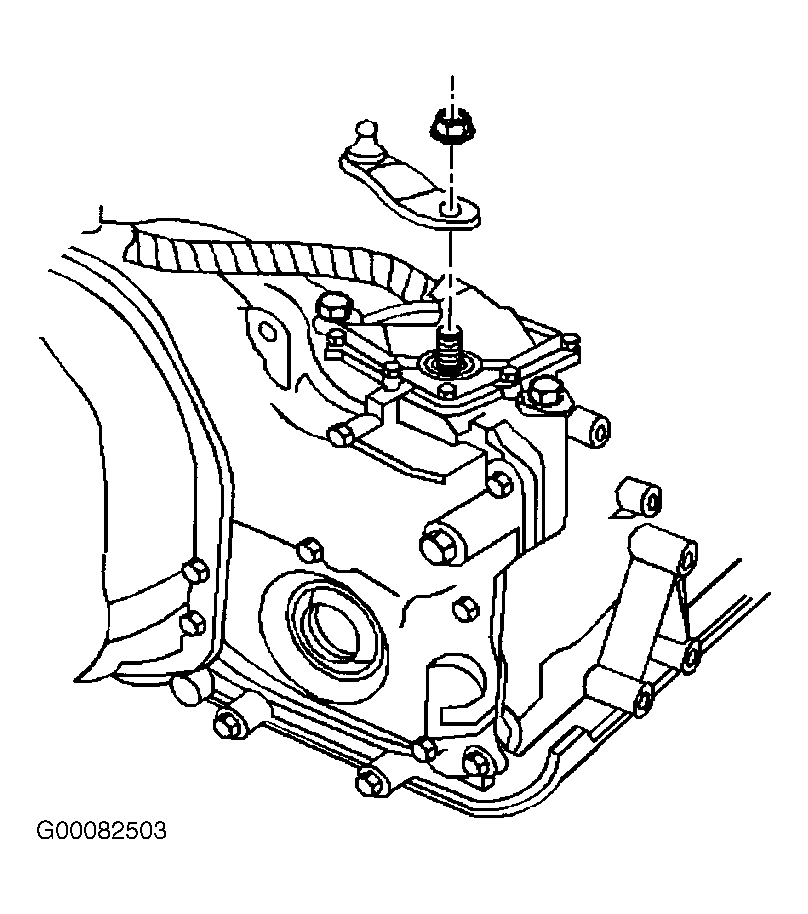

Fig 1: Removing & Replacing PNP Switch

Courtesy of GENERAL MOTORS CORP.
