Identification
>>
Instrument Panel Fuse Block (1998)
Instrument Panel Fuse Block (1998)
Fig 1: Locating Instrument Panel Fuse Block
Courtesy of GENERAL MOTORS CORP.

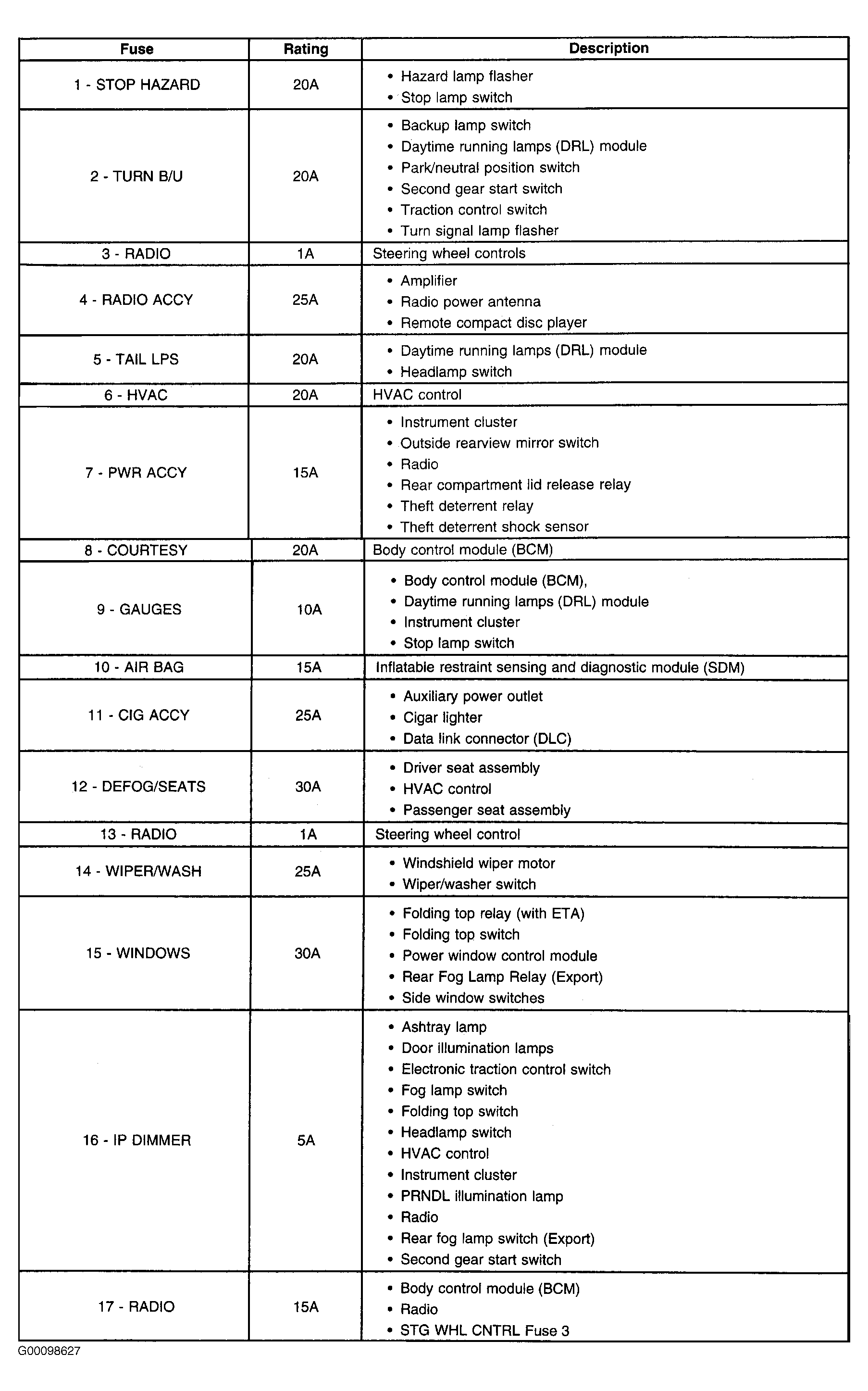

Fig 2: Identifying Instrument Panel Fuse Block Fuses
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
