DTC P0571: Cruise Brake Switch Circuit: Notes

NOTE: For circuit reference, refer to schematic. See Fig 1.

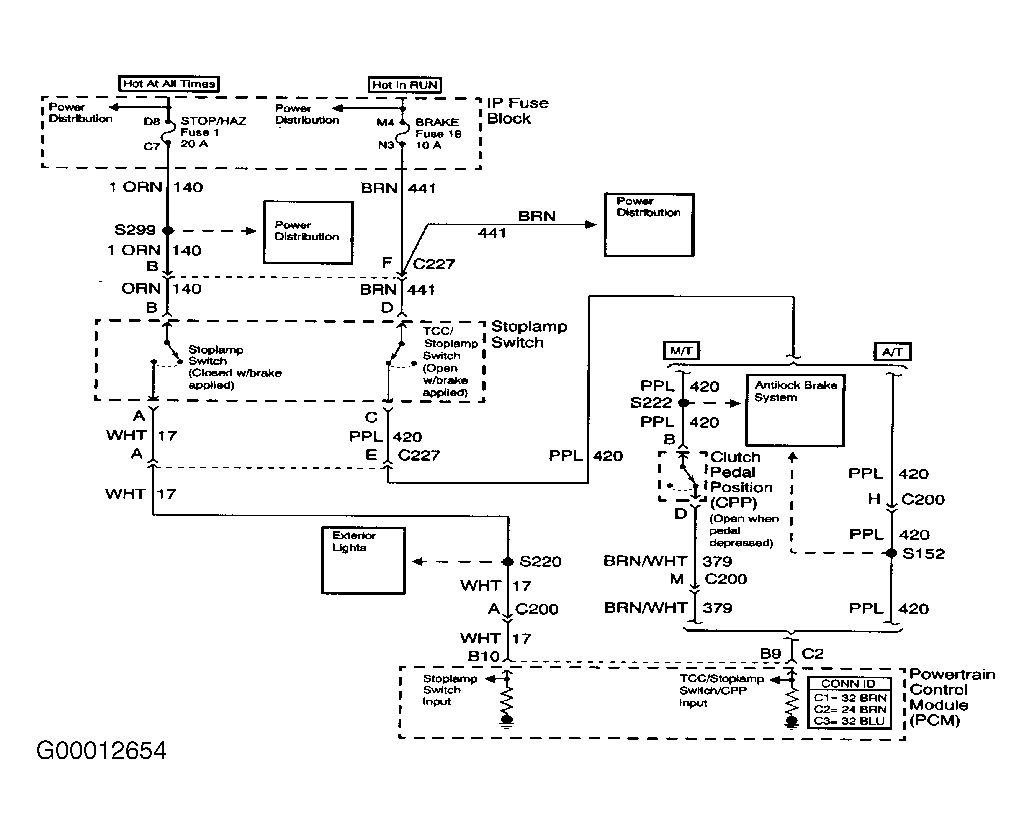

Fig 1: Cruise Control Brake Switch System Circuit Diagram
G00012654Courtesy of GENERAL MOTORS CORP.
