Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel cluster trim plate. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER in Instrument Panel, Gages, and Console.
  2. Remove the instrument panel cluster. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT in Instrument Panel, Gages, and Console.
  3. Disconnect the remote keyless entry antenna (1) from the receiver (2).
    Fig 1: Disconnecting Remote Keyless Entry Antenna From Receiver
    G01566587Courtesy of GENERAL MOTORS CORP.
  4. Remove the remote keyless entry antenna (1) from the carrier.
  5. Remove the remote keyless entry antenna from the vehicle.

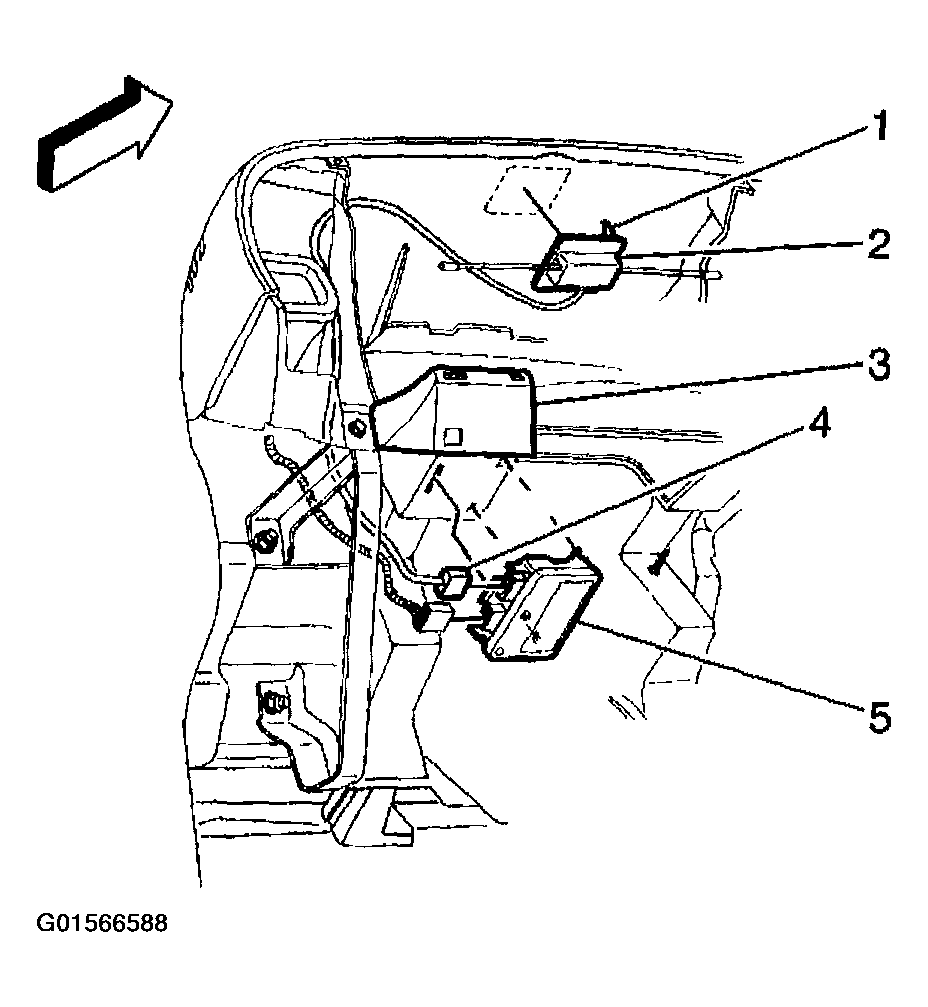

    Fig 2: Removing Remote Keyless Entry Antenna From Carrier
    G01566588Courtesy of GENERAL MOTORS CORP.
