Front Drive Axle Disassembled Views

WARNING: This page is about a different car, the 2003 GMC Safari, 2003 Chevrolet Astro, 2002 GMC Safari, and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

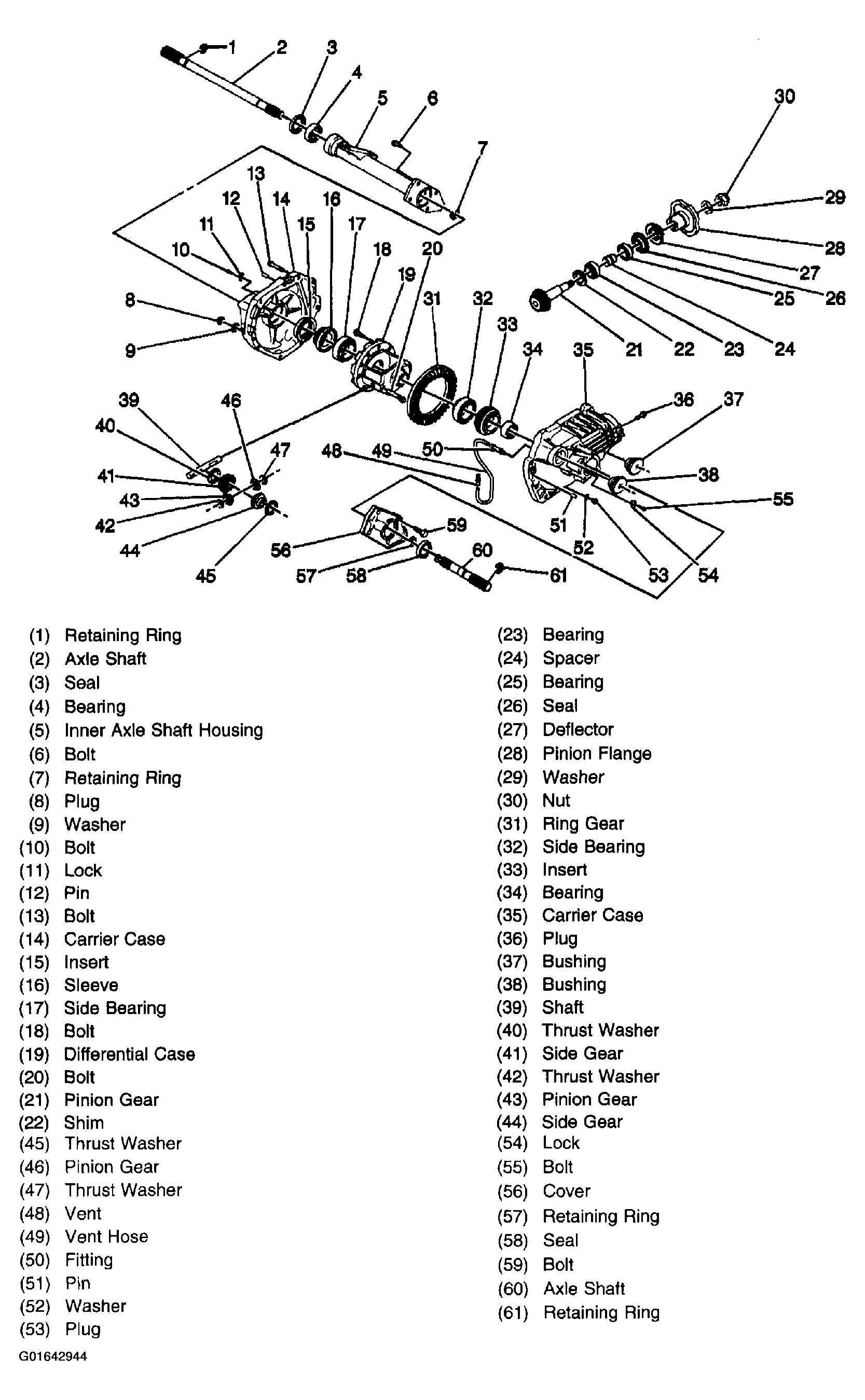

Fig 1: Exploded View Of Front Drive Axle
G01642944Courtesy of GENERAL MOTORS CORP.
