Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel extension trim plate. Refer to INSTRUMENT PANEL (I/P) EXTENSION TRIM PLATE REPLACEMENT in Instrument Panel, Gages, and Console.
  2. Squeeze the fasteners on both sides of the remote compact disc player.
  3. Pull out the remote compact disc player.
  4. Disconnect the electrical connectors.

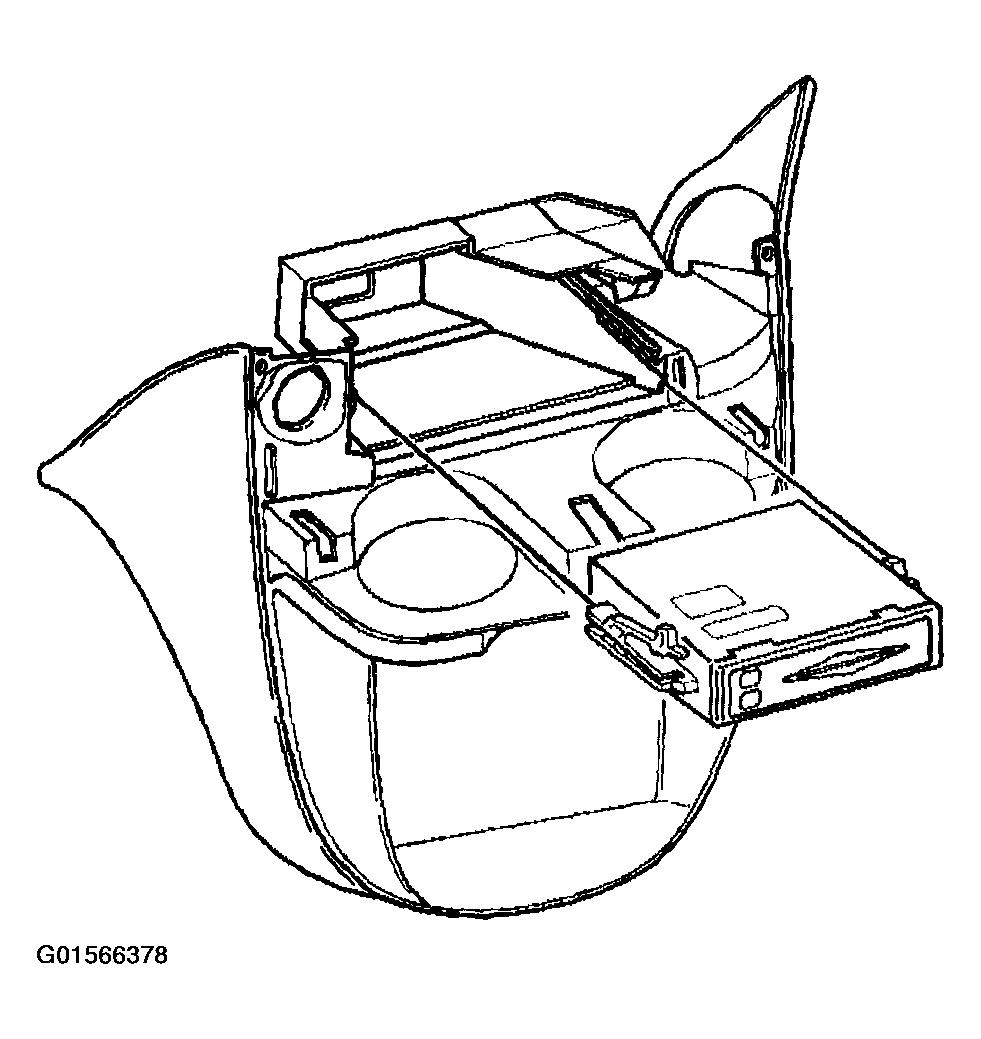

    Fig 1: Removing Remote Compact Disc Player
    G01566378Courtesy of GENERAL MOTORS CORP.
