Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel cluster trim plate. Refer to TRIM PANEL REPLACEMENT -- IP CLUSTER in Instrument Panel, Gages & Console.
  2. Remove the instrument panel cluster. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT in Instrument Panel, Gages & Console.
  3. Disconnect the remote keyless entry antenna (1) from the receiver (2).
  4. Remove the remote keyless entry antenna (1) from the carrier.
  5. Remove the remote keyless entry antenna from the vehicle.

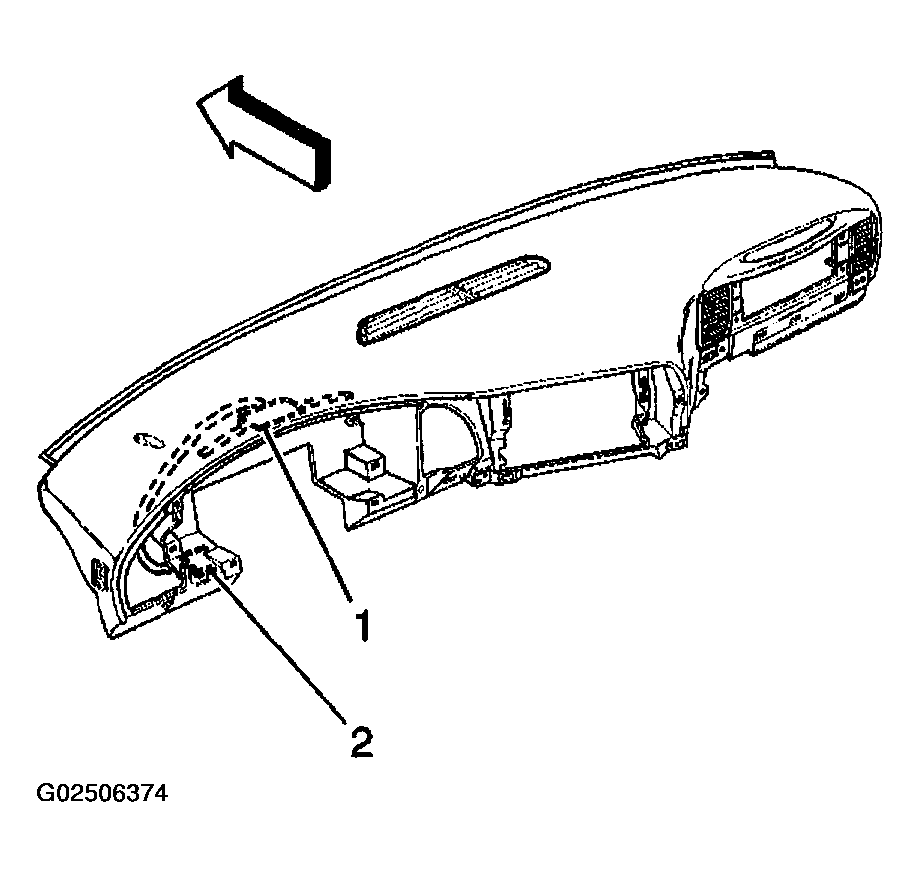

    6. Fig 1: Locating Remote Keyless Entry Antenna Connection At Receiver
    G02506374Courtesy of GENERAL MOTORS CORP.

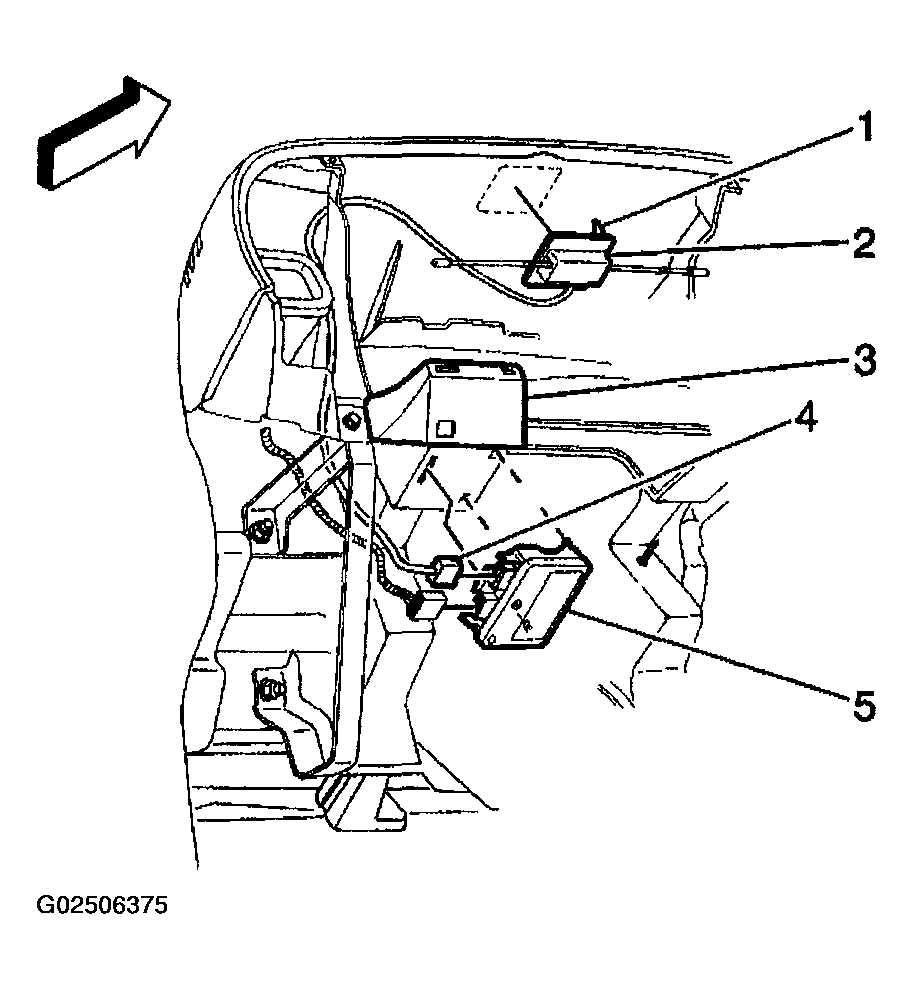

    Fig 2: Removing & Installing Keyless Entry Antenna
    G02506375Courtesy of GENERAL MOTORS CORP.
