Installation Procedure

  1. Install the step panel cover.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES.
  2. Install the step panel cover screws.

    Tighten

    Tighten the step panel cover screws to 2 N.m (18 in. lb.).

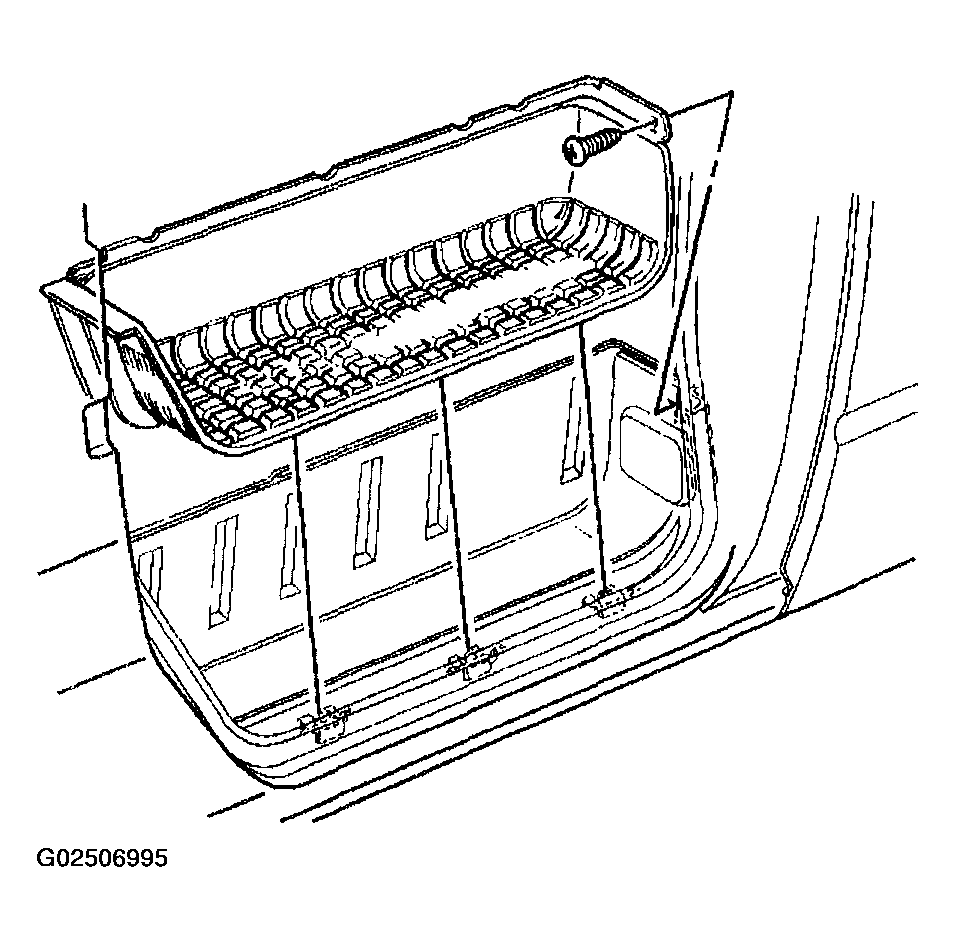

    Fig 1: Installing Step Panel Cover & Screws
    G02506995Courtesy of GENERAL MOTORS CORP.
