Removal Procedure

  1. Remove the instrument panel extension. Refer to INSTRUMENT PANEL, GAGES & CONSOLE .
  2. Remove the floor air outlet duct. Refer to MANUAL A/C-HEATER SYSTEMS .

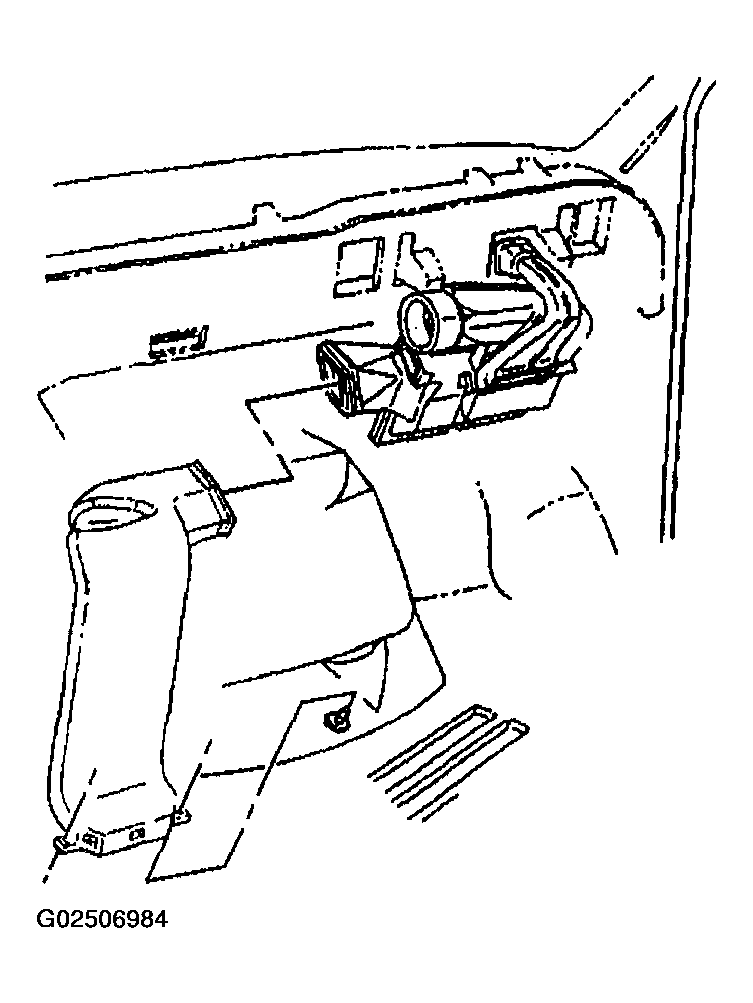

    Fig 1: Removing Floor Air Outlet Duct
    G02506984Courtesy of GENERAL MOTORS CORP.
  3. Remove the bolts from the brackets:
    1. 3.1. Loosen the bolt.
    2. 3.2. Rotate the bracket out of the way.
  4. Remove the latches.

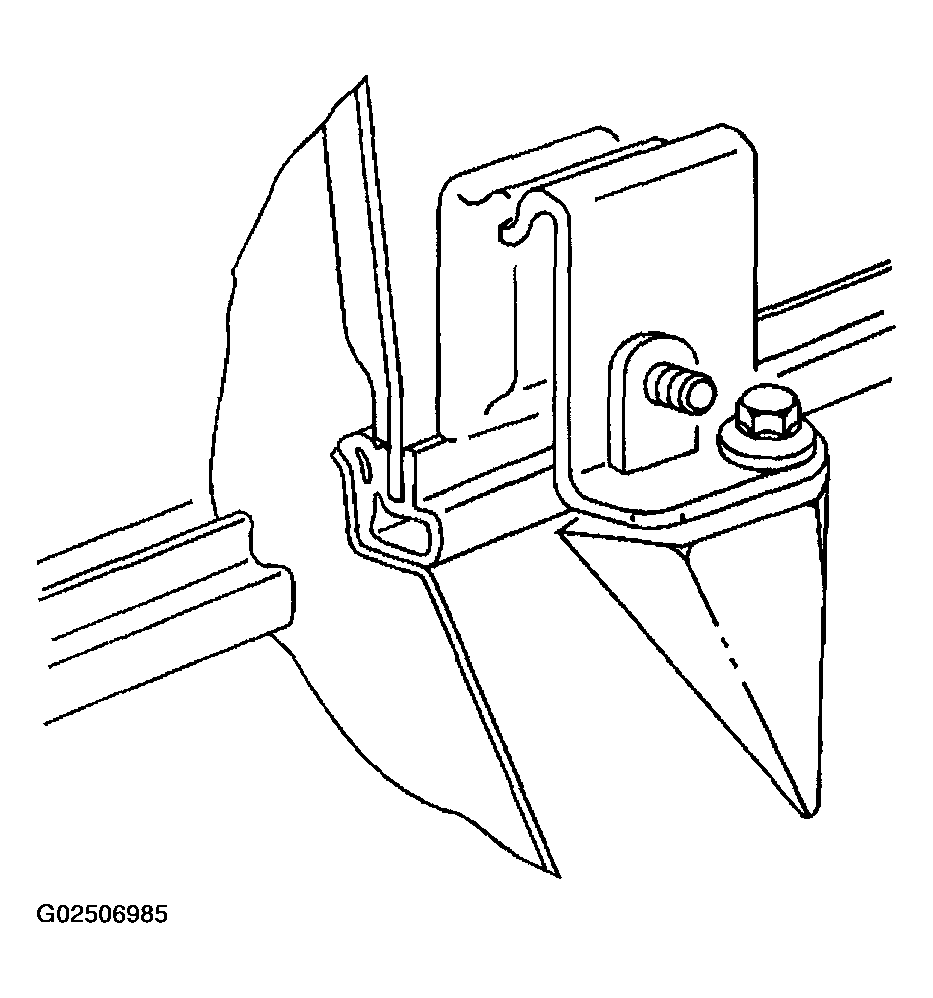

    Fig 2: Removing Latches
    G02506985Courtesy of GENERAL MOTORS CORP.
  5. Remove the screws.
    Fig 3: Removing Screws
    G02506986Courtesy of GENERAL MOTORS CORP.
  6. Remove the engine cover.

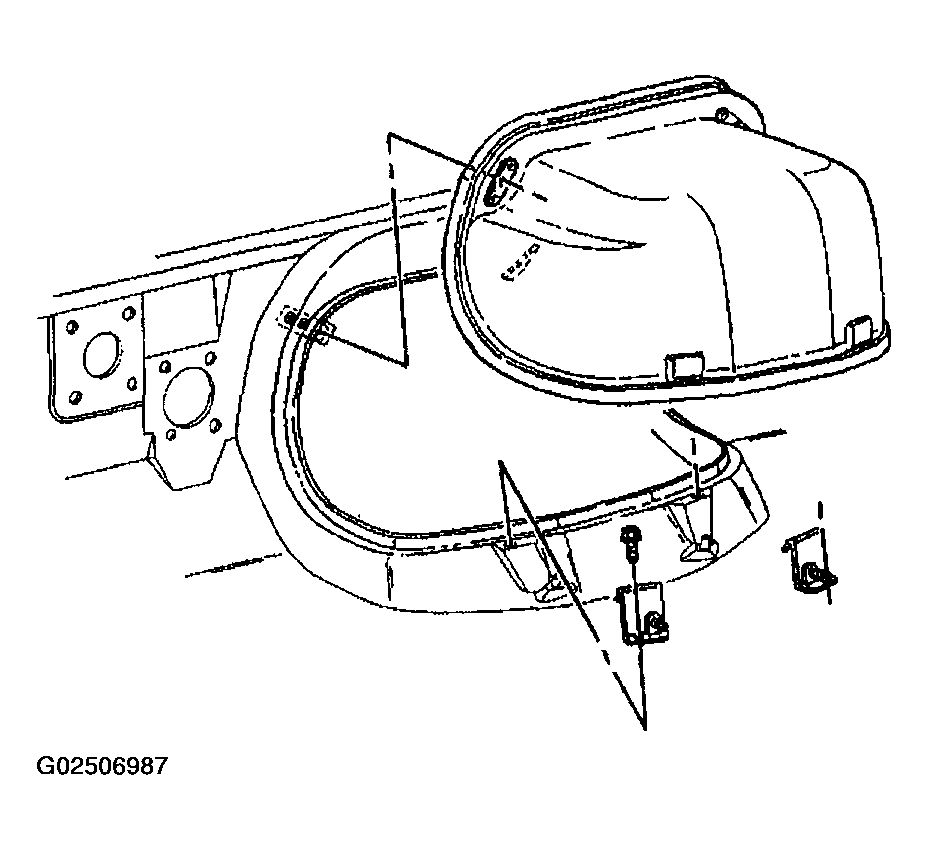

    Fig 4: Removing Engine Cover
    G02506987Courtesy of GENERAL MOTORS CORP.
