Removal & Installation

Disconnect negative battery cable. Remove radio. Remove heater control panel from instrument panel and move aside to access BCM. See Fig 1. Remove BCM from retainer. Disconnect BCM connectors as specified. To install, reverse removal procedure, reconnecting connectors as specified. To program BCM, see PROGRAMMING .

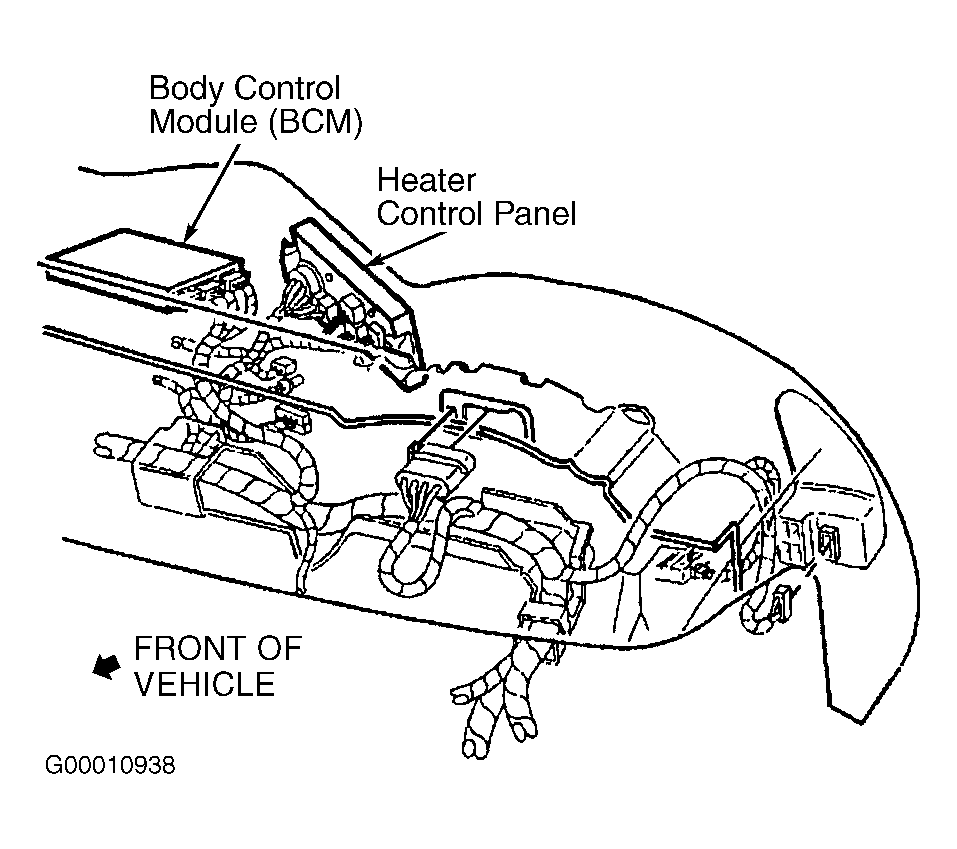

Fig 1: Identifying Body Control Module (BCM) Location

Courtesy of GENERAL MOTORS CORP.
