Removal Procedure

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 1998 GMC Yukon, 1998 GMC Suburban, 1998 GMC Pickup, 1998 GMC Cab & Chassis, and 1998 GMC C3500 HD. However, it is still accessible from the selected car via links, so may be relevant.

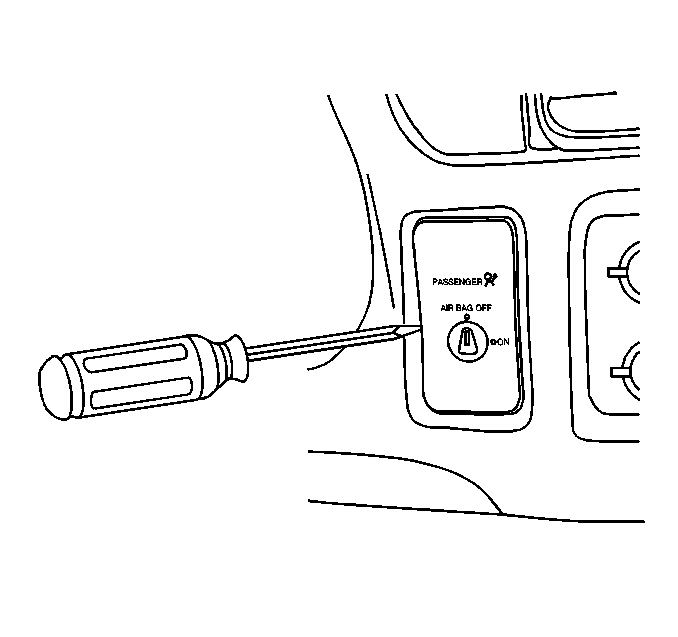

Fig 1: Prying Switch From Instrument Panel
GM378730Courtesy of GENERAL MOTORS COMPANY
CAUTION: Refer to SERVICE PRECAUTIONS
  1. Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM
  2. Use a flat-bladed tool in order to pry the switch from the instrument panel
    3. Fig 2: View Of Switch
    GM388332Courtesy of GENERAL MOTORS COMPANY
  3. Remove the switch from the instrument panel.
  4. Disconnect the electrical connections, as needed
