Connector Identification

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 1998 GMC Yukon, 1998 GMC Suburban, 1998 GMC Pickup, 1998 GMC Cab & Chassis, and 1998 GMC C3500 HD. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to illustrations to identify SIR connector terminals. See Fig 1-Fig 5 .
Fig 1: SDM Connector End View
G98D09766Courtesy of GENERAL MOTORS CORP.
Fig 2: Front-End Discriminating Sensor Connector End View
G98A13540Courtesy of GENERAL MOTORS CORP.
Fig 3: SIR Coil Connector End View
G98D09276Courtesy of GENERAL MOTORS CORP.
Fig 4: Passenger-Side Air Bag Connector End View
G98H09278Courtesy of GENERAL MOTORS CORP.

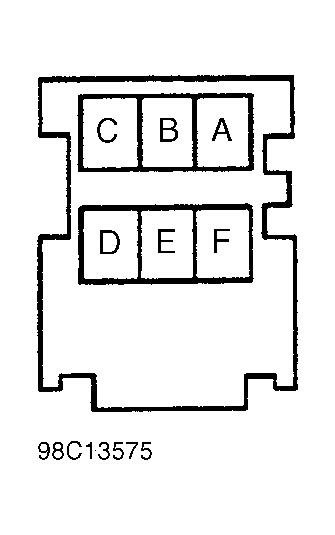

Fig 5: Passenger-Side Air Bag Module Enable Switch Connector End View
G98C13575Courtesy of GENERAL MOTORS CORP.
