PULLDOWN System Inoperative

NOTE: For references to Rear Compartment Lid Release System Check, see TROUBLE SHOOTING  .

To perform test, see Fig 1 and Fig 2 .

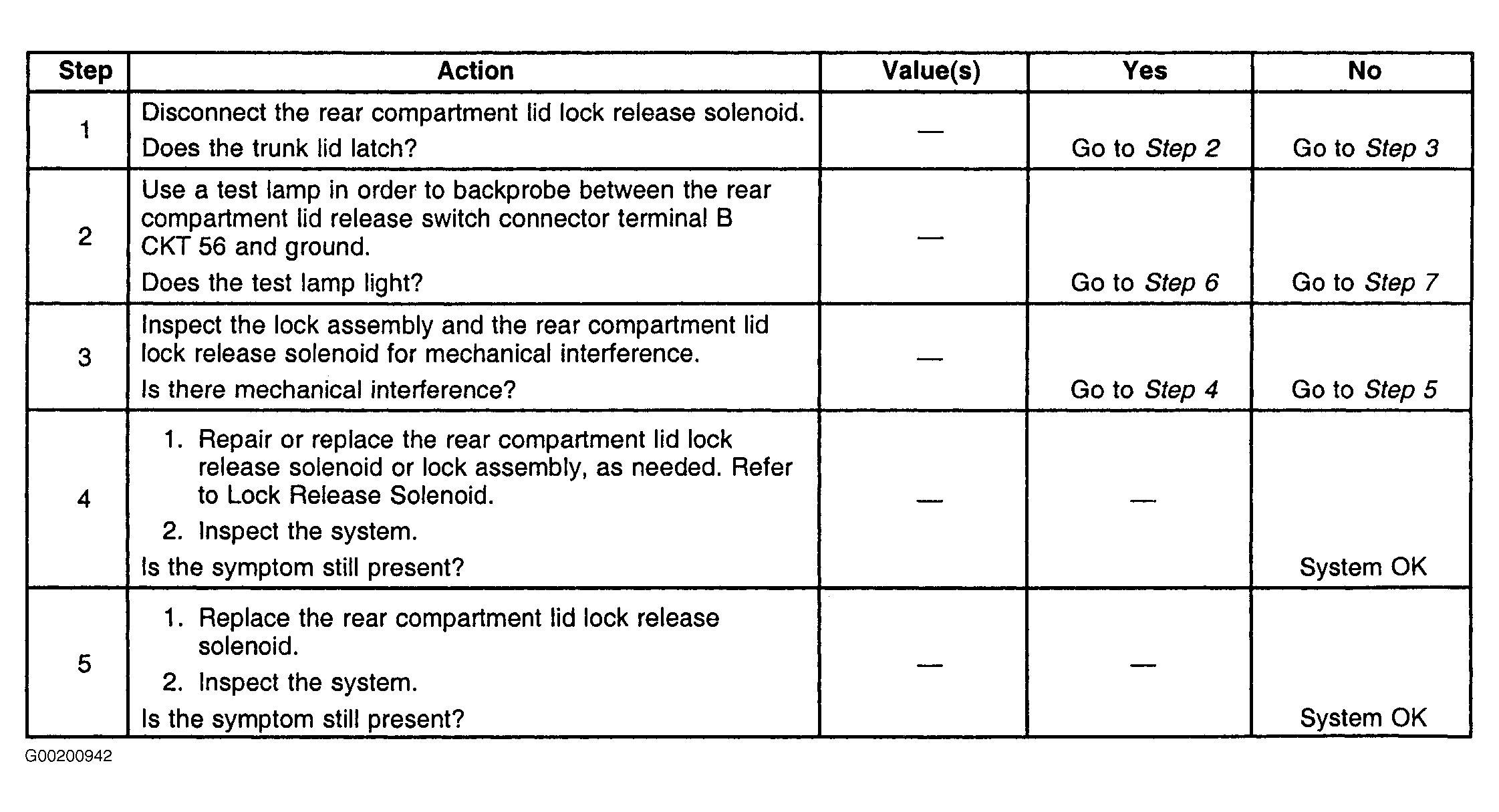

Fig 1: Pulldown System Inoperative (1 Of 2)
G00200942Courtesy of GENERAL MOTORS CORP.

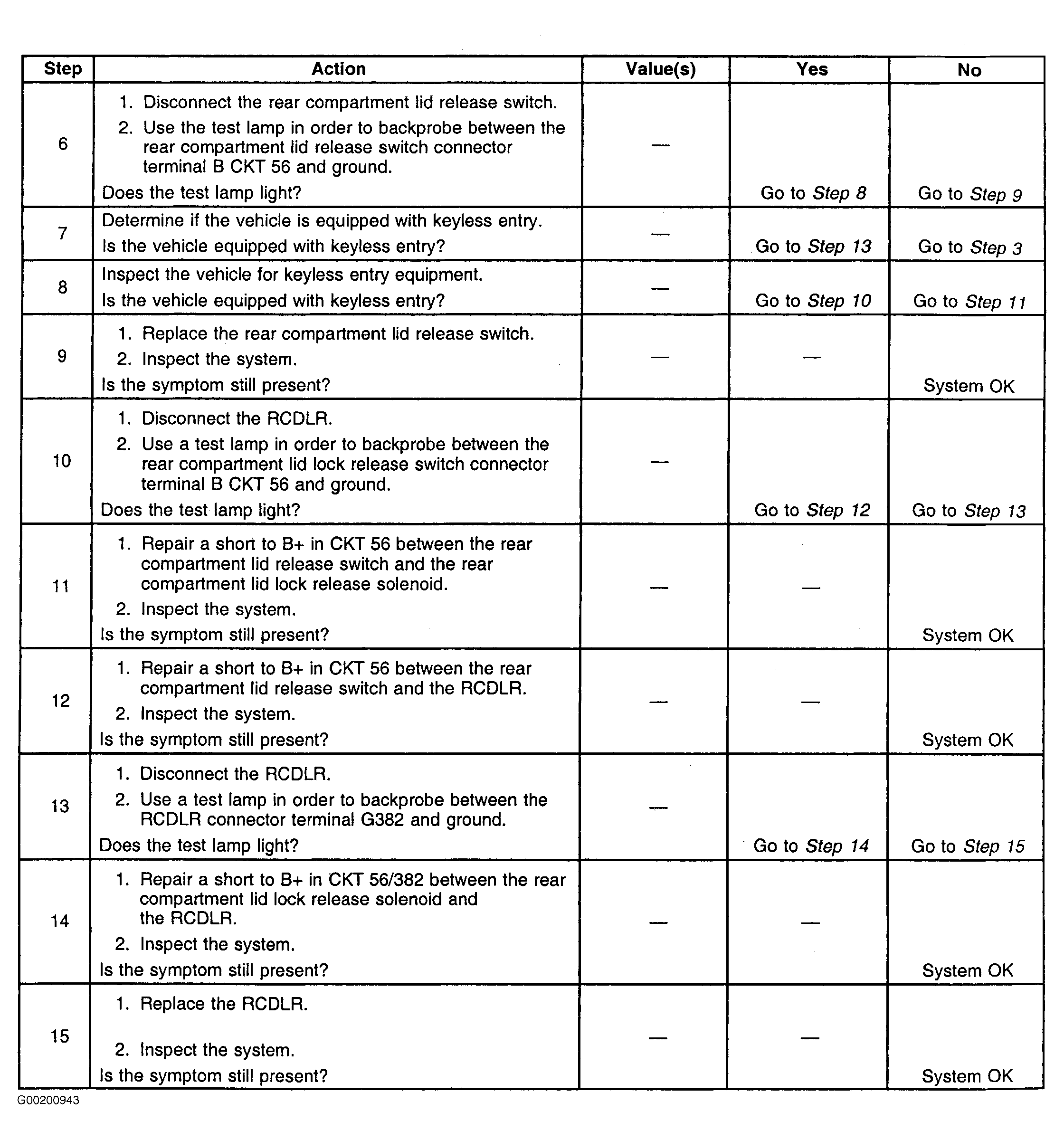

Fig 2: Pulldown System Inoperative (2 Of 2)
G00200943Courtesy of GENERAL MOTORS CORP.
