Installation Procedure

  1. Position the door trim panel on the inner belt molding and press down.

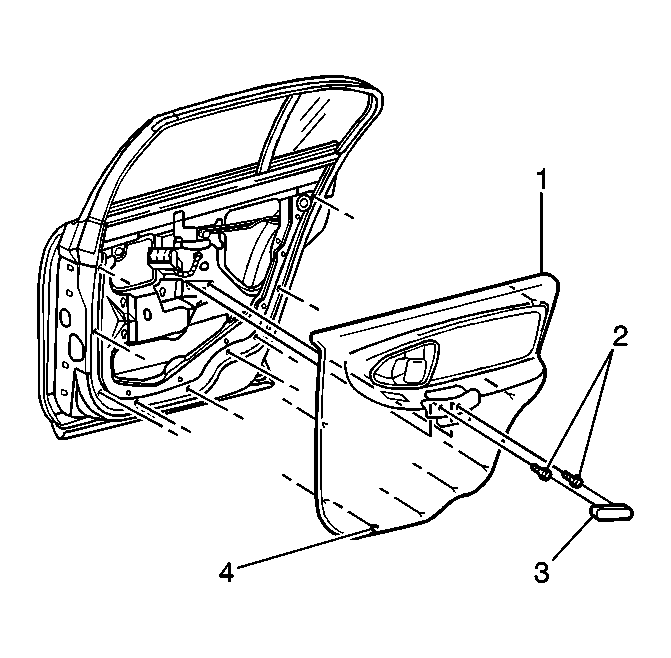

    2. Fig 1: Identifying Door Trim Panel Fasteners
    GM445132Courtesy of GENERAL MOTORS CORP.
  2. Install the front door trim panel to the door, pressing into place until the retainers are fully seated.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the door trim panel screws to the door trim panel.

    Tighten:  Tighten the screws to 1.8 N.m (16 lb in).

  4. Install the window regulator handle, if equipped.
  5. Install the inside door pull handle plug to the door trim panel, pressing until fully seated.
  6. Install the inside door handle bezel to the door trim panel. Refer to DOOR HANDLE BEZEL REPLACEMENT .
  7. Install the power accessory switch panel to the door trim panel.
  8. Install the front door trim panel insert to the door. Refer to TRIM PANEL INSERT REPLACEMENT - FRONT DOOR .
