Courtesy Lamps Inoperative With Transmitter

NOTE: For references to Remote Keyless Entry System Check, see TROUBLE SHOOTING  .

To perform test, see Fig 1 .

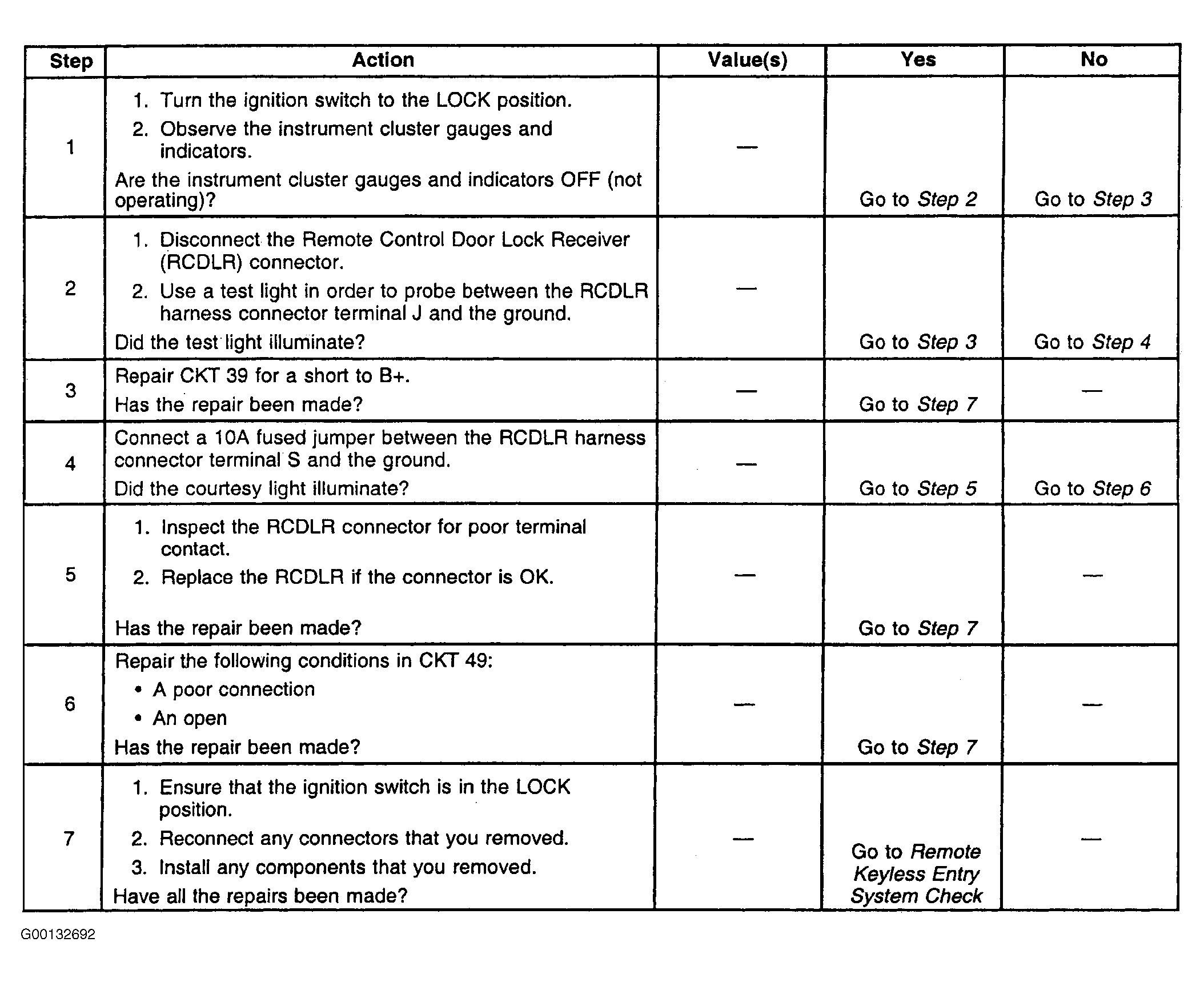

Fig 1: Courtesy Lamps Inoperative With Transmitter

Courtesy of GENERAL MOTORS CORP.
