Test F: One Power Door Lock Function Inoperative

For diagnostic procedure, see Fig 1 . For connector identification, see Figure .

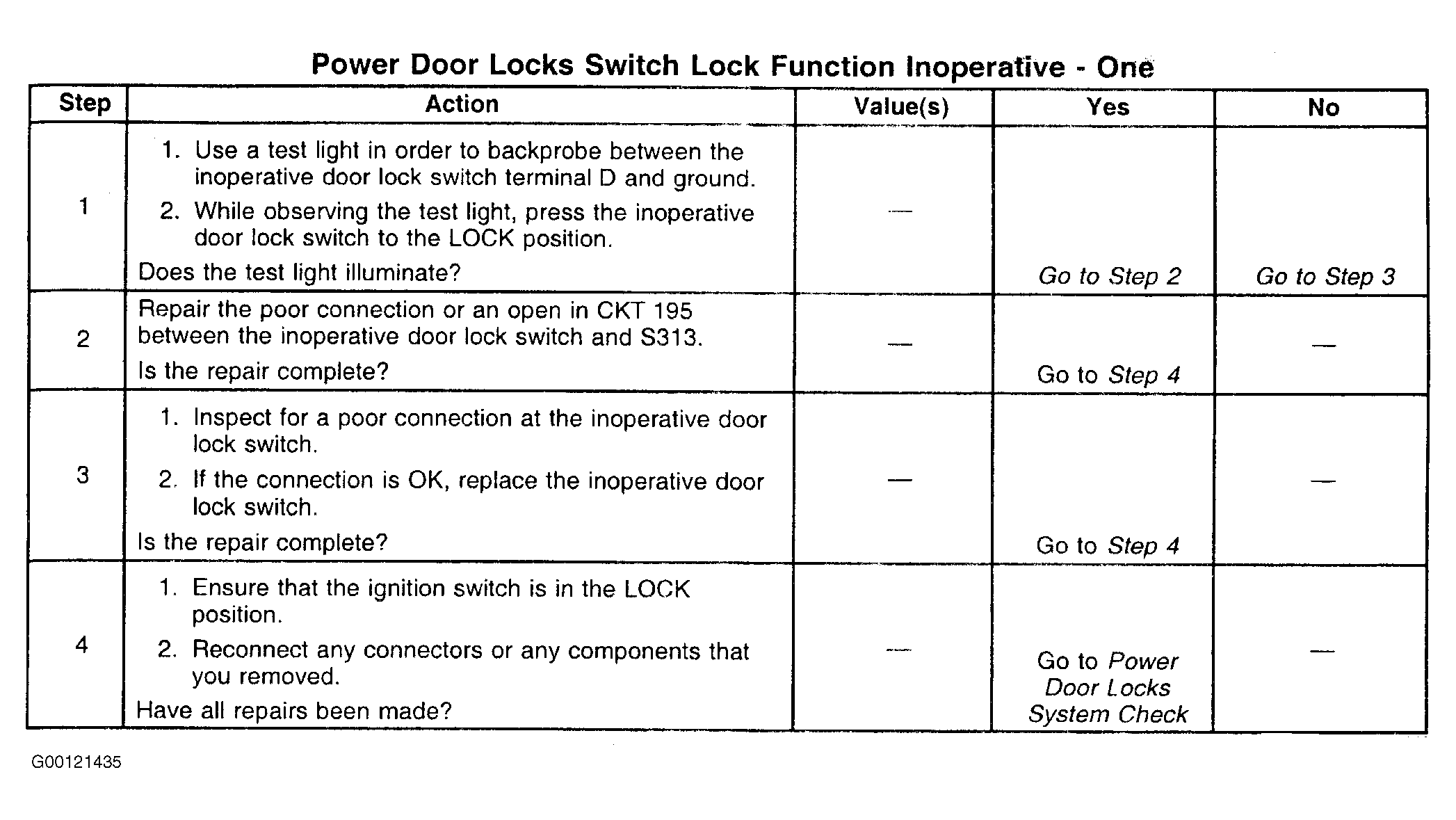

Fig 1: Test F: One Power Door Lock Function Inoperative

Courtesy of GENERAL MOTORS CORP.
