Connector Identification

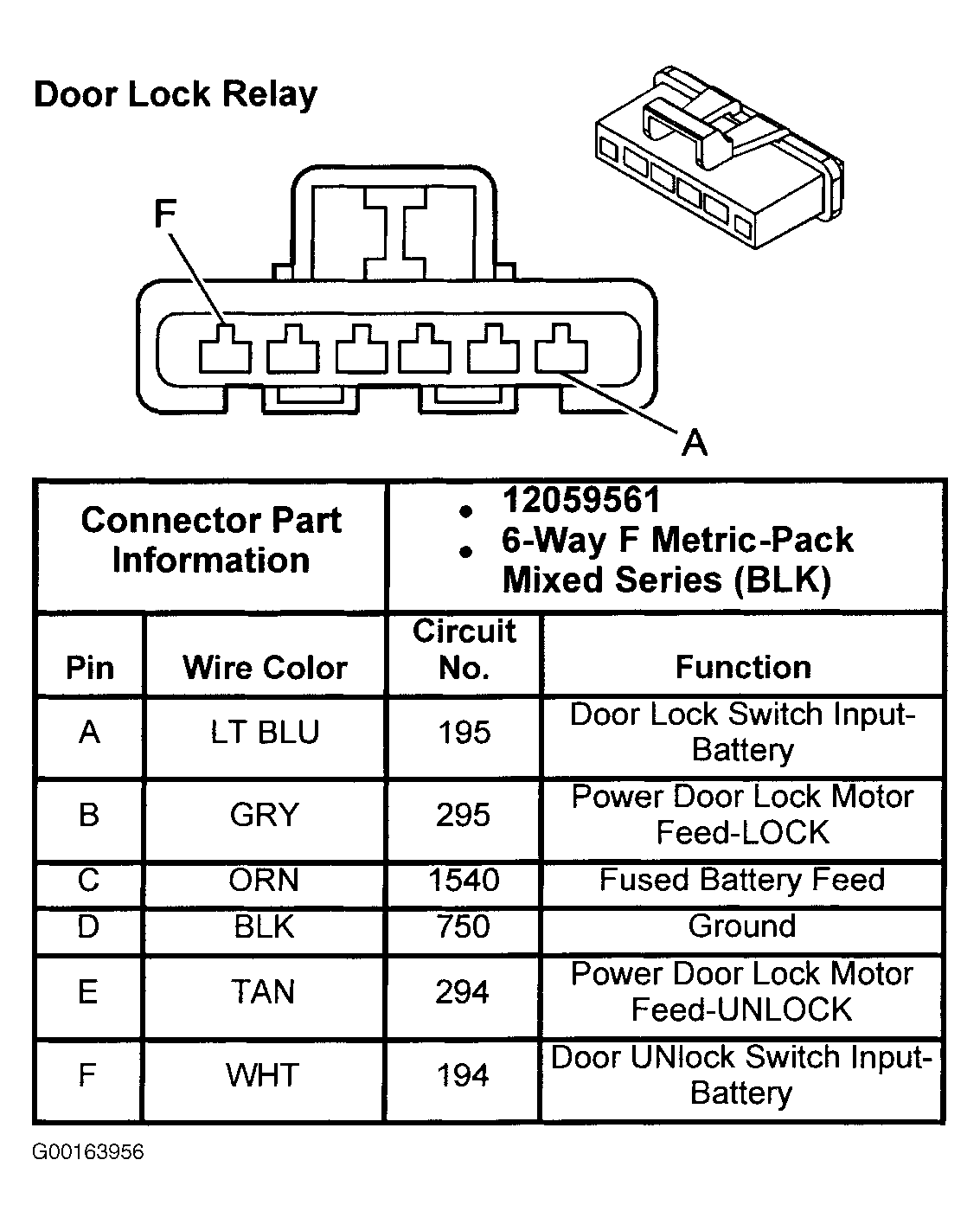

Fig 1: Identifying Door Lock Relay Connector Terminals
G00163956Courtesy of GENERAL MOTORS CORP.

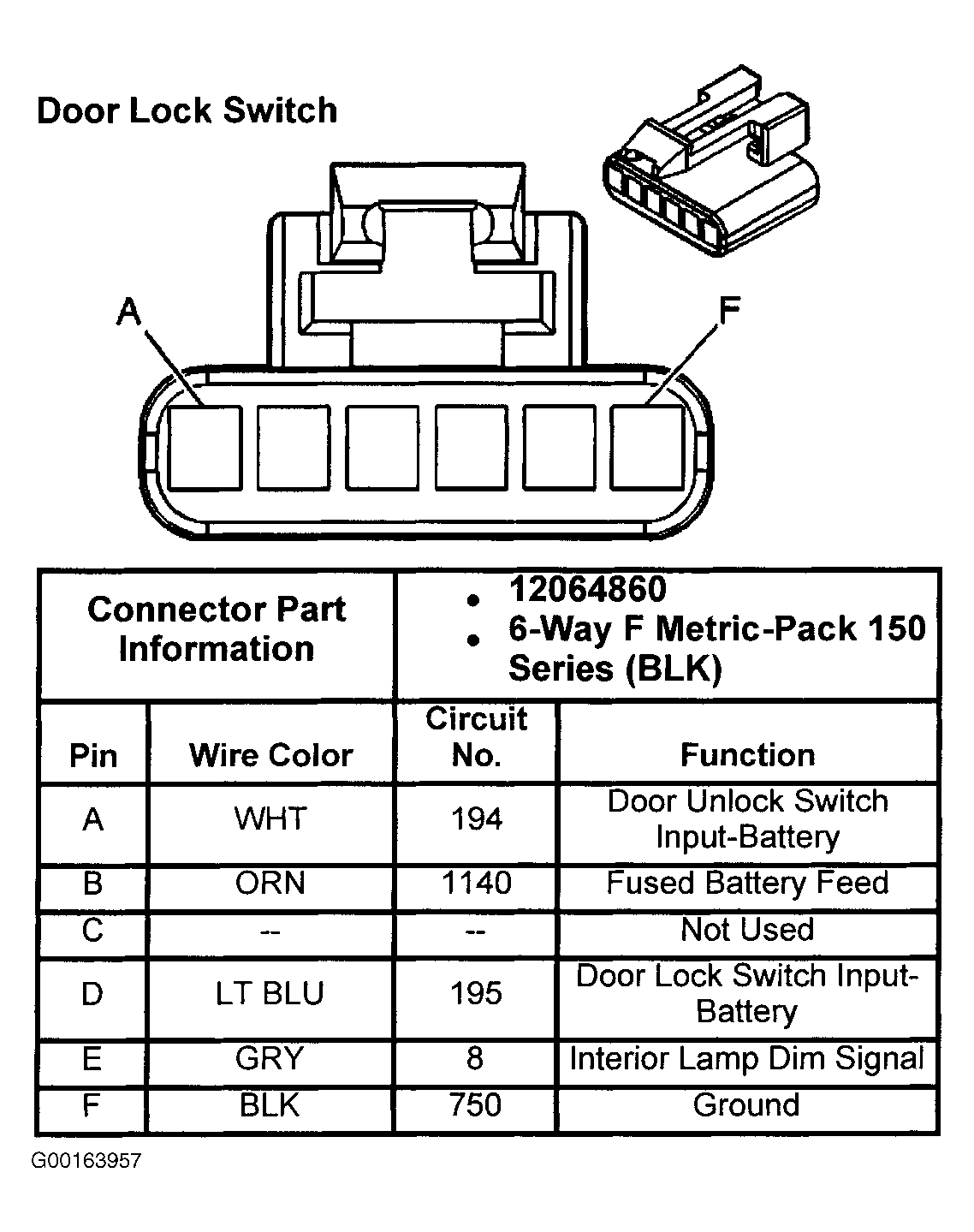

Fig 2: Identifying Door Lock Switch Connector Terminals
G00163957Courtesy of GENERAL MOTORS CORP.

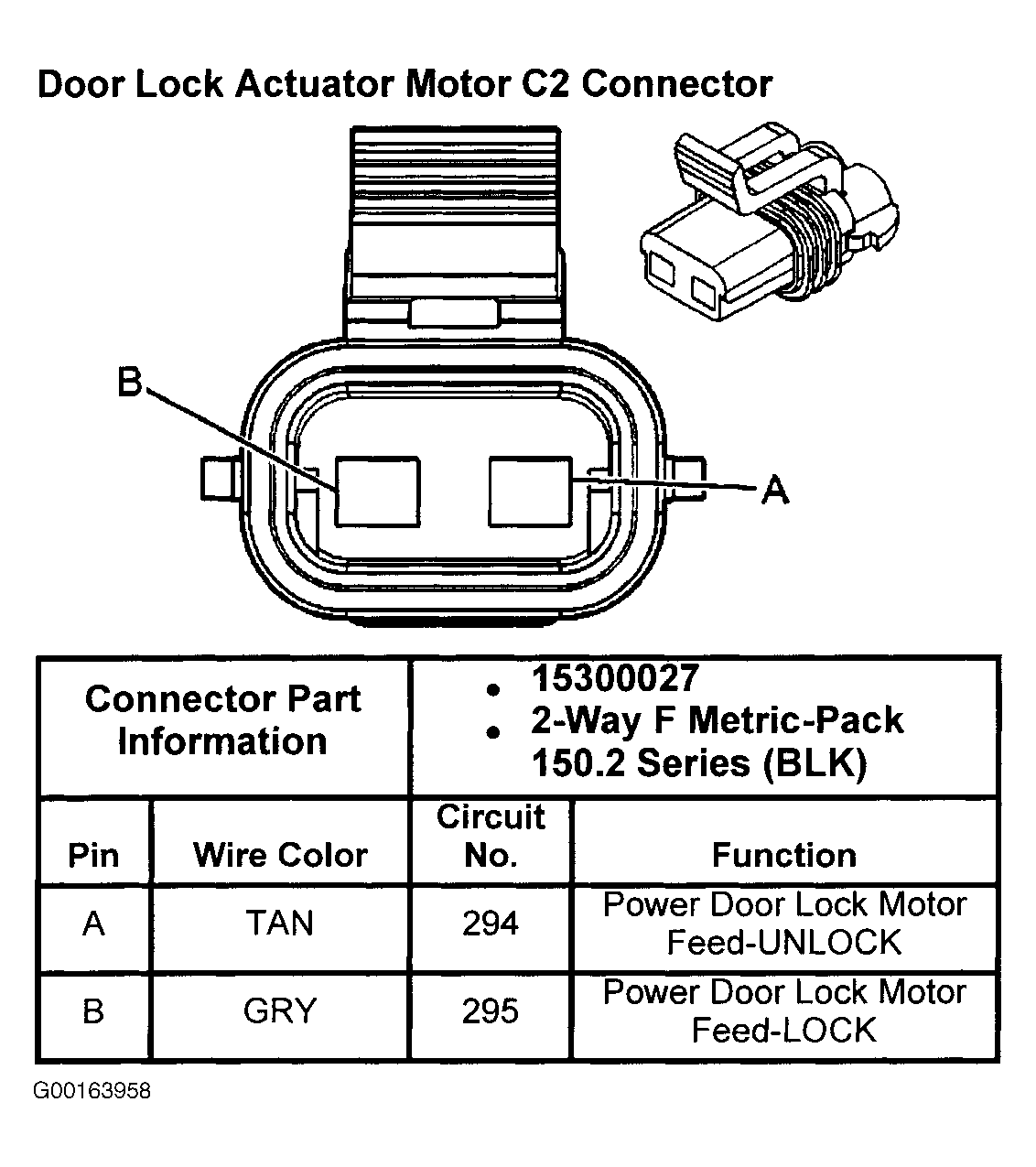

Fig 3: Identifying Door Lock Actuator C2 Connector Terminals
G00163958Courtesy of GENERAL MOTORS CORP.
