Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Door Lock Relay | Behind Right Side Of Instrument Panel, Above C200 |
| Door Lock Switch | Center Of Front Door |

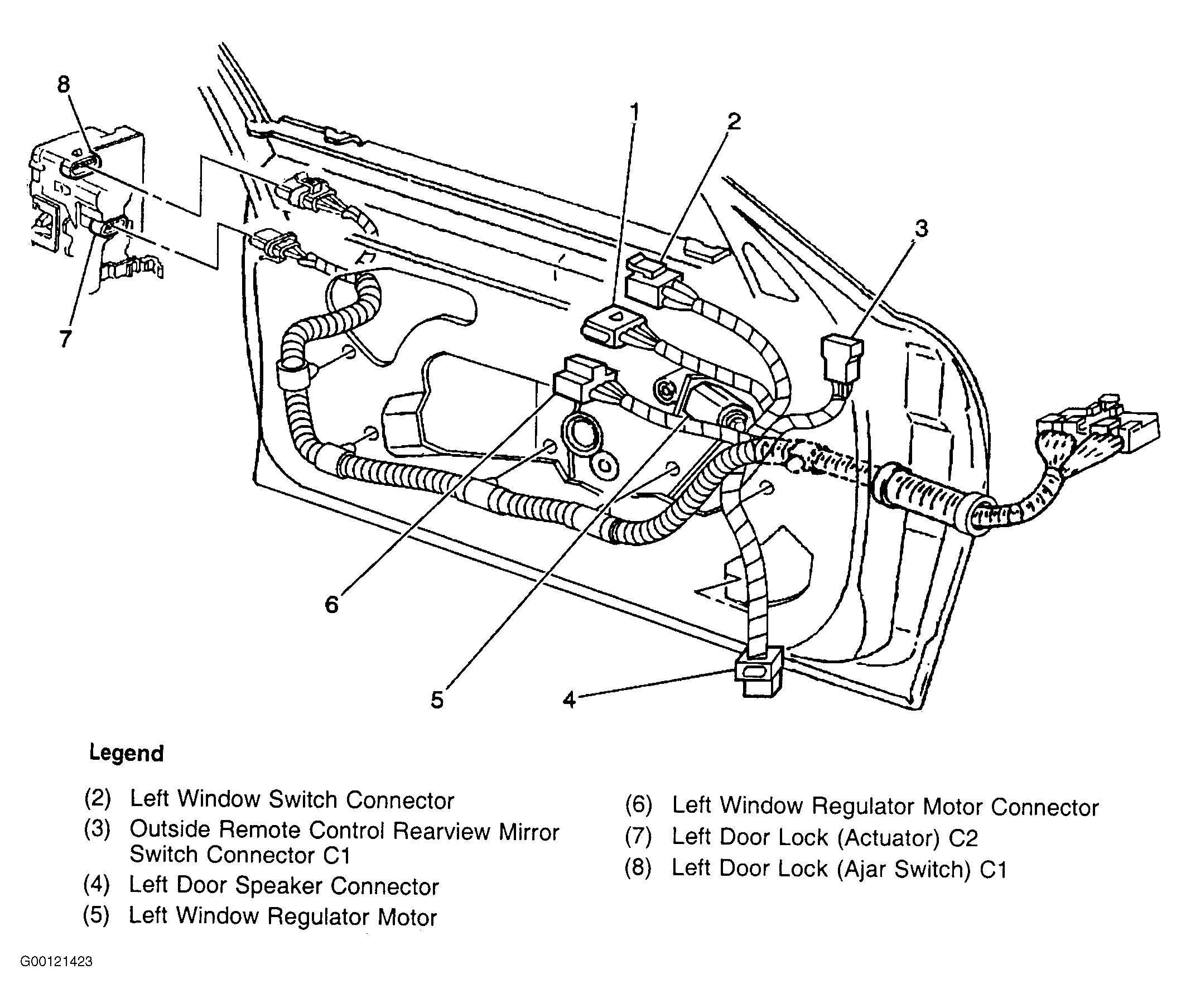

| Front Door Lock Actuator | Rear Edge Of Front Door. See Fig 1 |
| Fuse Block | Right Side Of Instrument Panel, In Right Front Door Opening |

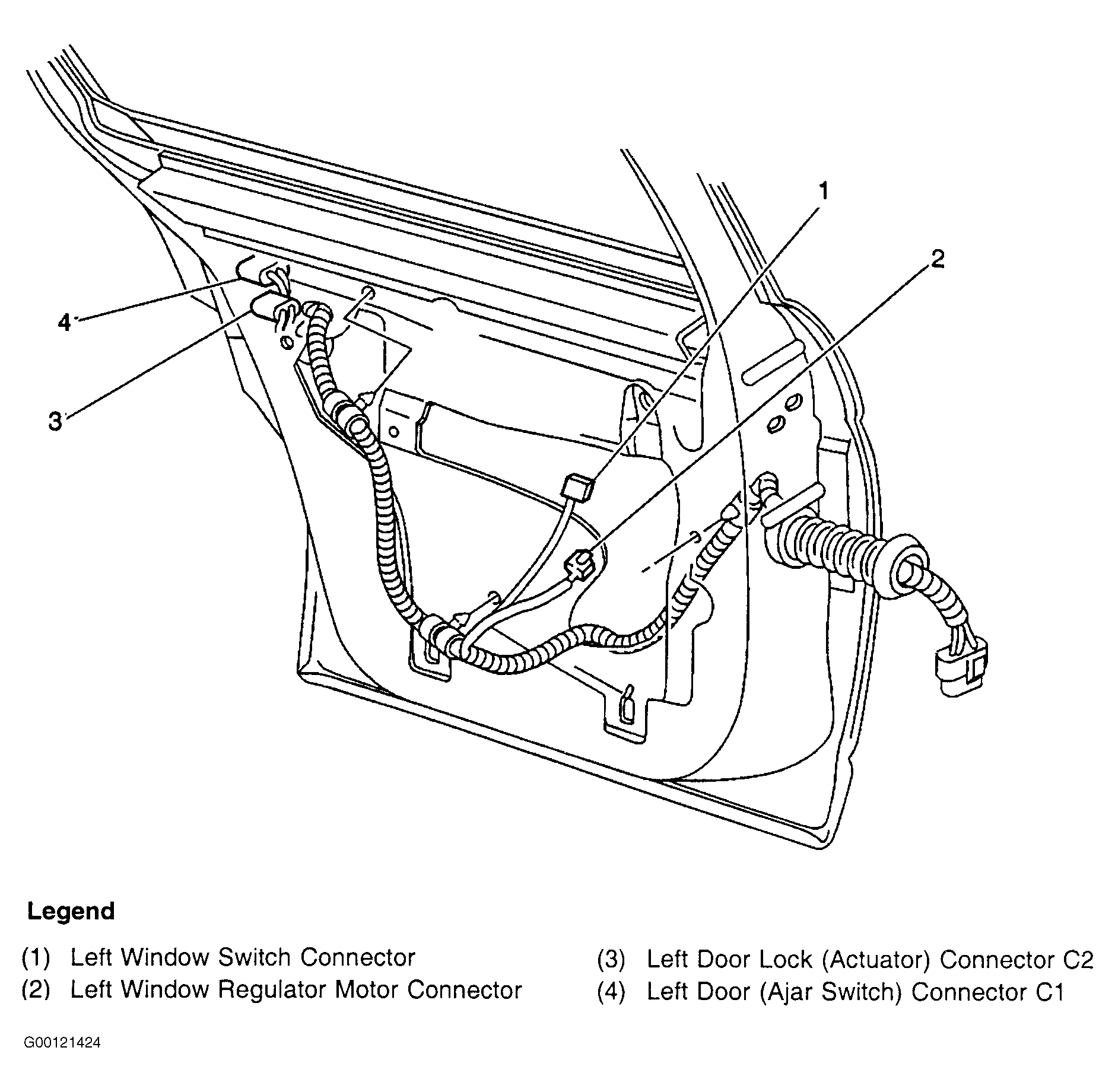

| Rear Door Lock Actuator (Monte Carlo) | Rear Edge Of Rear Door. See Fig 2 |
| Remote Control Door Lock Receiver (RCDLR) | Below Right Side Of Rear Window Trim Panel. See Fig 3 . |

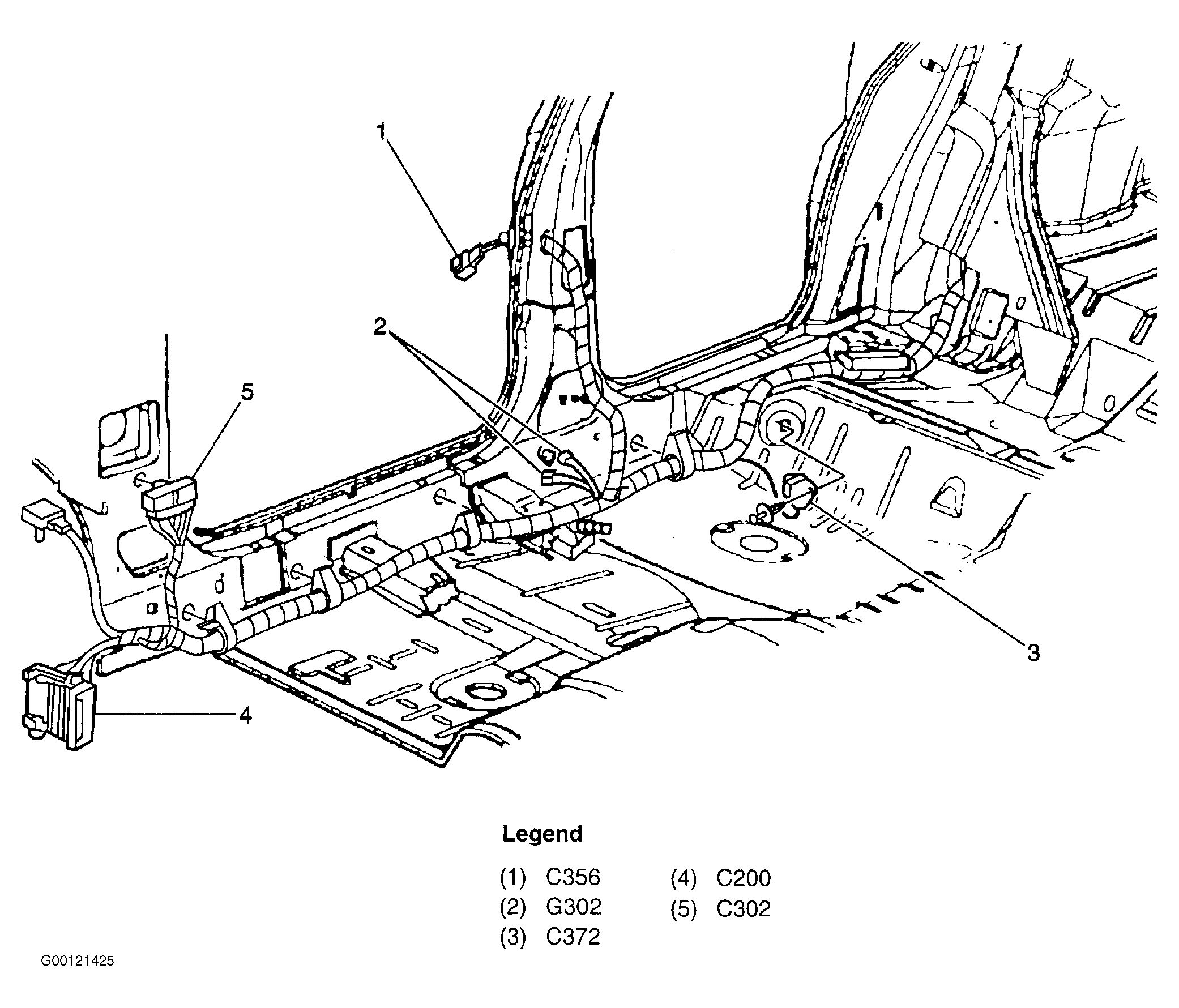

| C200 (102 cavities) | Instrument Panel Harness To Crossbody Harnesses, Mounted Behind Right Side Of Instrument Panel, Near Shroud. See Fig 4 |
| C301 (23 cavities) | Crossbody Harness To Left Front Door Harness, Mounted To Left A Pillar. See Fig 5 . |
| C302 (23 cavities) | Crossbody Harness To Right Front Door Harness, Mounted To Right A Pillar. See Fig 4 and Fig 5 |

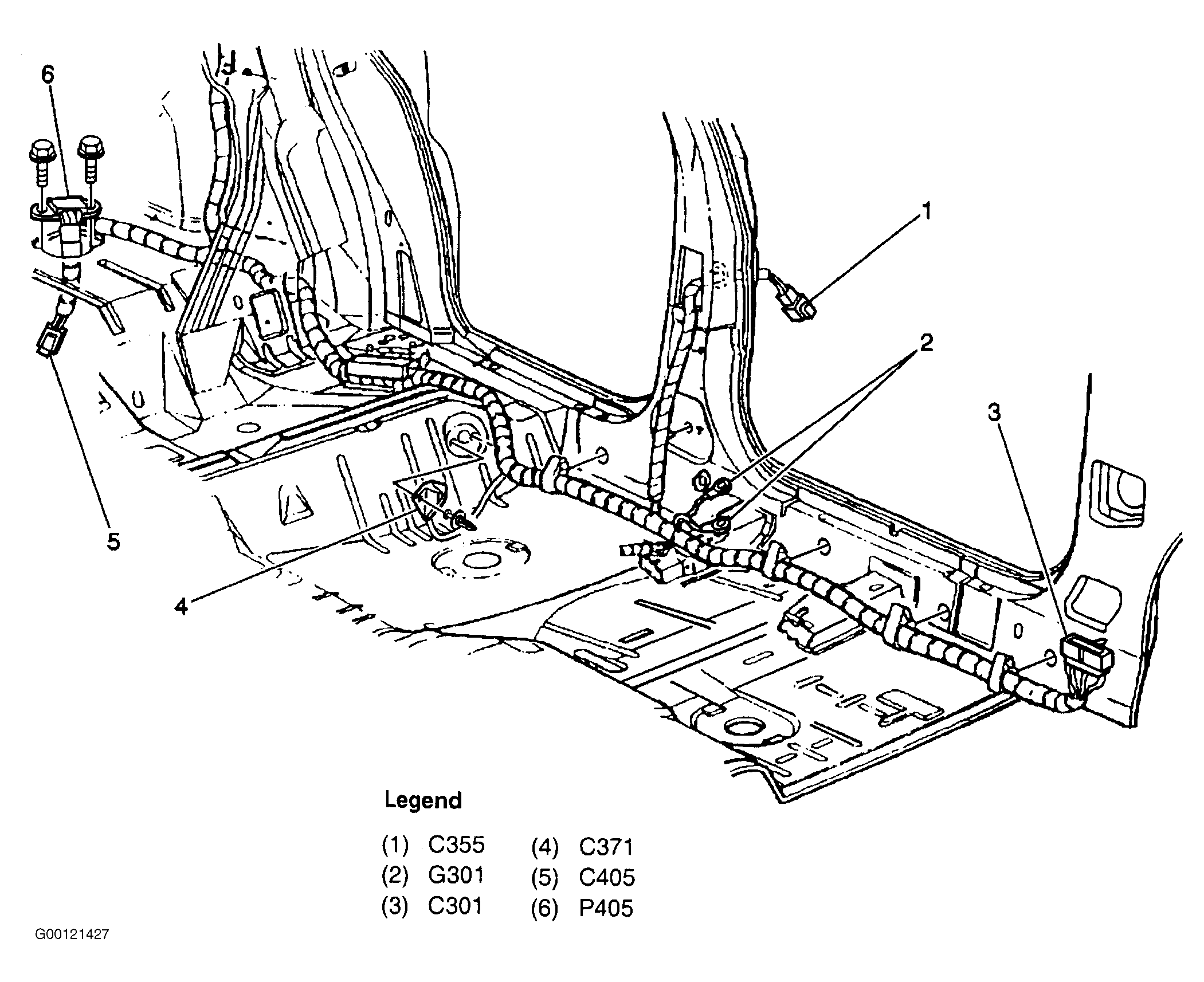

| C355 (8 cavities) | Crossbody Harness To Left Rear Door Harness, Mounted To Left B Pillar. See Fig 6 |
| C356 (8 cavities) | Crossbody Harness To Right Rear Door Harness, Mounted To Right Sunshade. See Fig 4 |
| G302 | At Base Of Right B Pillar. See Fig 4 |

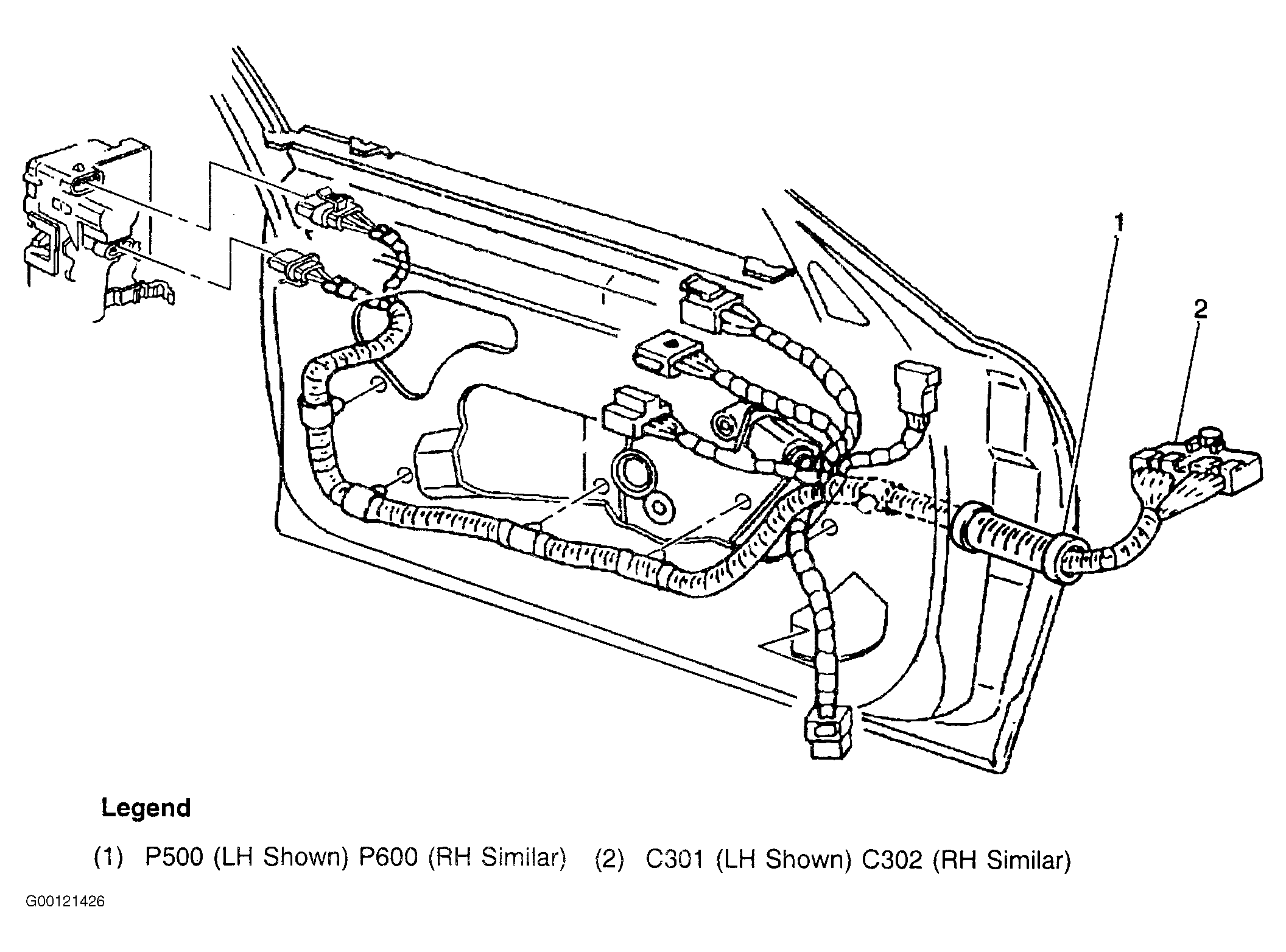

| P500 | Left A Pillar. See Fig 5 |
| P600 | Right A Pillar. See Fig 5 |

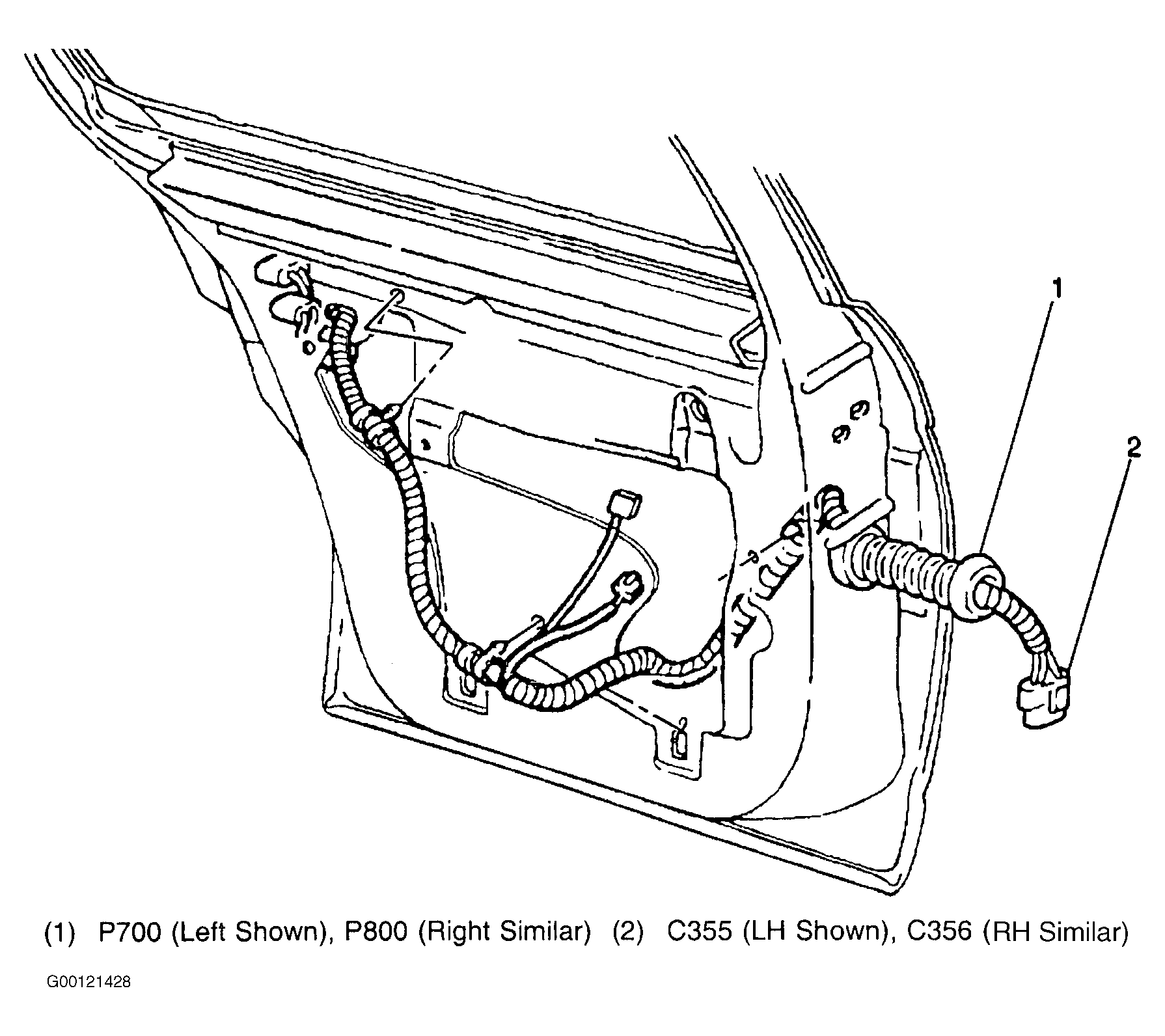

| P700 | Left B Pillar. See Fig 7 |
| P800 | Right B Pillar. See Fig 7 |
| S303 | In Crossbody Harness, Below Right Front Seat Approximately 7" (17 cm) From G302 Breakout |
| S306 | In Crossbody Harness, Below Right Front Seat Approximately 26" (66 cm) From G302 Breakout |
| S307 | In Crossbody Harness, Below Right Front Seat Approximately 28" (70 cm) From G302 Breakout |
| S308 | In Crossbody Harness, In Right A Pillar Approximately 4" (10 cm) From C302 Breakout |
| S312 | In Crossbody Harness, Below Right Front Seat Approximately 14" (36 cm) From C302 Breakout |
| S313 | In Crossbody Harness, Below Right Front Seat Approximately 17" (43 cm) From C302 Breakout |
| S314 | In Crossbody Harness, Below Right Front Seat Approximately 4" (10 cm) From C302 Breakout |
| S315 | In Crossbody Harness, Below Right Front Seat Approximately 12" (30 cm) From C302 Breakout |
| S318 | In Crossbody Harness, Between Front Seats Approximately 3" (7 cm) From Seat Belt Switch Breakout |
| S501 | In Left Front Door Harness, Approximately 2" (4 cm) From Window Regulator Motor Breakout |
| S504 (Monte Carlo) | In Left Front Door Harness, Approximately 5" (12 cm) From Window Switch Breakout |
| S504 (Lumina) | In Left Front Door Harness, Approximately 5" (12 cm) From Window Switch Breakout |
| S604 | In Right Front Door Harness, Approximately 5" (12 cm) From Window Switch Breakout |
