Installation (Left Front, Coupe)

  1. Snap the driver side front door power window switch into the mounting plate. See Fig 2 .
  2. Connect the electrical connector.
  3. Snap the Driver's side switch plate assembly into the front door inner trim panel. See Fig 1 .

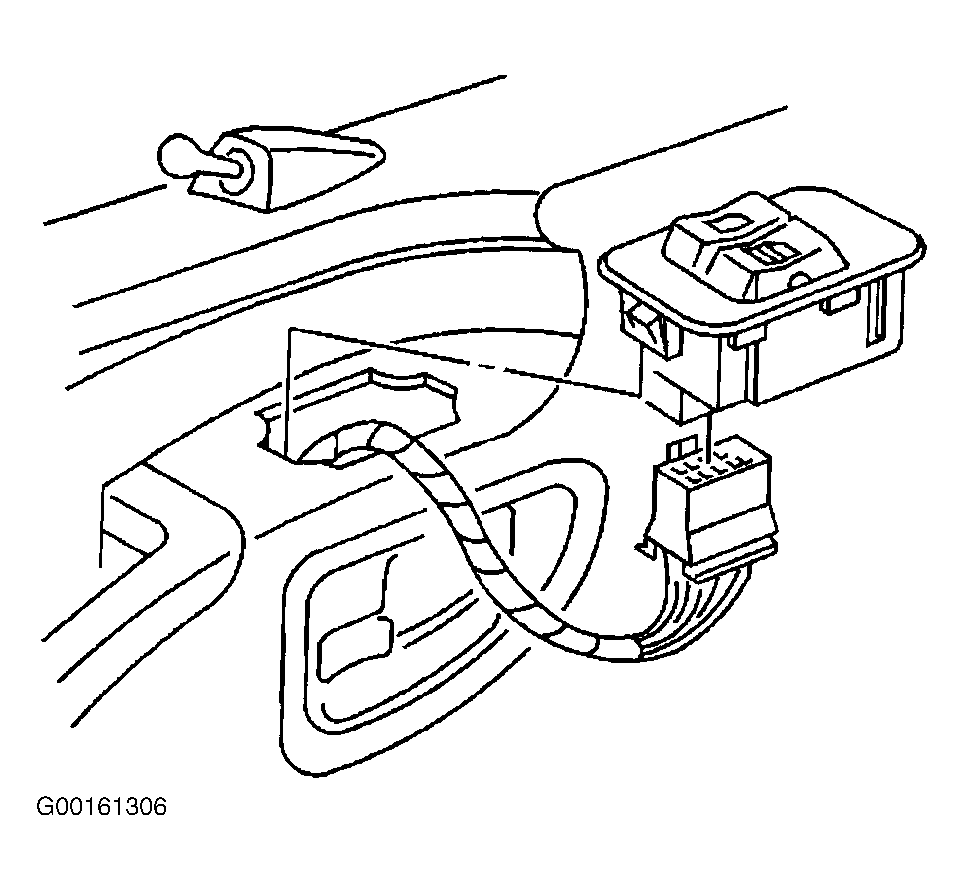

Fig 1: Removing Driver's Side Door Switch From Door Panel
G00161306Courtesy of GENERAL MOTORS CORP.

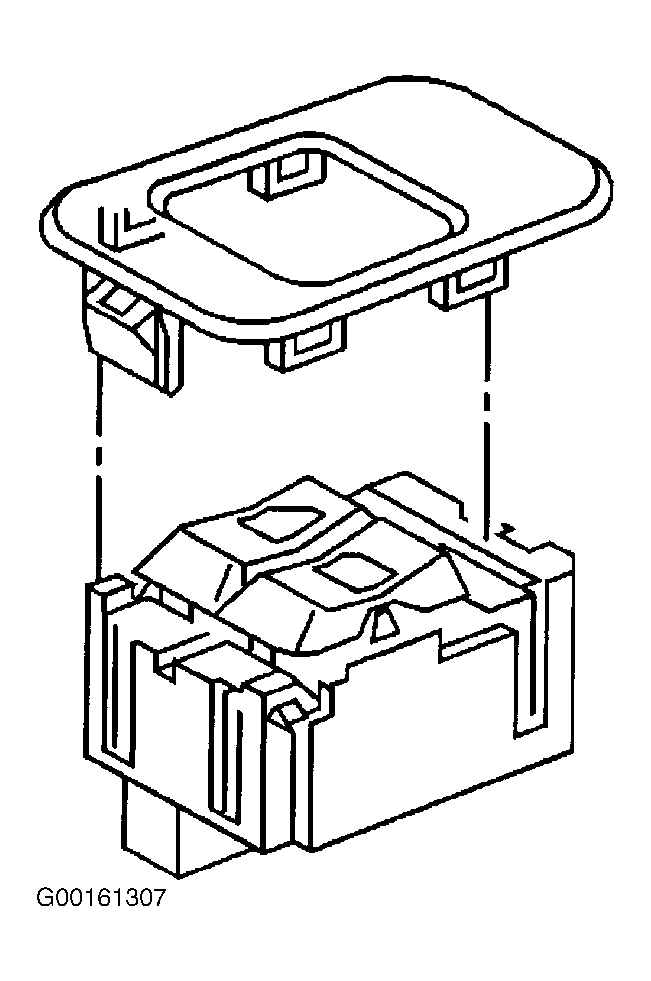

Fig 2: Removing Driver's Side Switch From Mounting Plate
G00161307Courtesy of GENERAL MOTORS CORP.
