Installation (Power)

Position the mirror (1) to the door. See Fig 1 .
On sedan only, tuck the front edge of the mirror under the channel. Slide the mirror forward as far as possible so the mirror is flush with the belt molding.
Install the electric mirror attaching nuts (8). Start at the lower left nut. Tighten in a clockwise direction. Tighten the electric mirror attaching nuts to 89 INCH Lbs. (10 N.m).
Install the mirror reinforcement cover.
Connect the electrical connectors (4).
Install the trim panel. See DOOR TRIM PANEL .

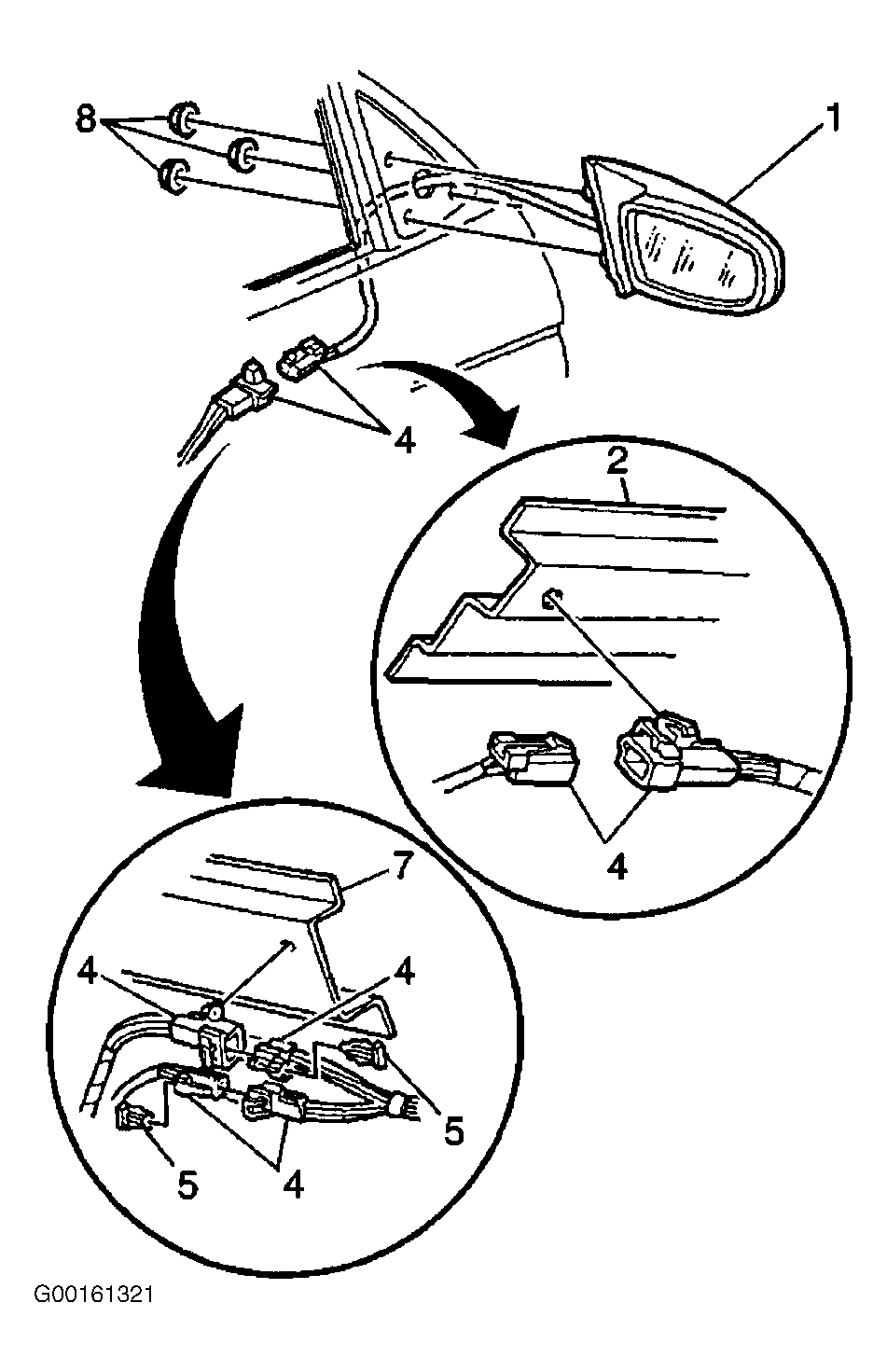

Fig 1: Removing Outside Mirror (Power)

Courtesy of GENERAL MOTORS CORP.
