Front Door Window Weatherstrip: Installation

1. Position the front door window weatherstrip (1) into the door. See Fig 1 .
2. Rotate the legs inboard. Push the weatherstrip inward.
3. Install the front door window weatherstrip bolts (2). Tighten the door window weatherstrip to inner panel bolts to 89 INCH Lbs. (10 N.m). See Fig 1 .
4. Install the door window. See SIDE DOOR WINDOW  .
5. Install the outer belt sealing strip. See OUTER BELT SEALING STRIP  .
6. Install the inner belt sealing strip. See INNER BELT SEALING STRIP  .
7. Install the water deflector. See WATER DEFLECTOR  .
8. Install the energy absorber pad. See FRONT INNER ENERGY ABSORBER PAD  .
9. Install the door speaker. See SPEAKER  .
10. Install the trim panel. See DOOR TRIM PANEL  .

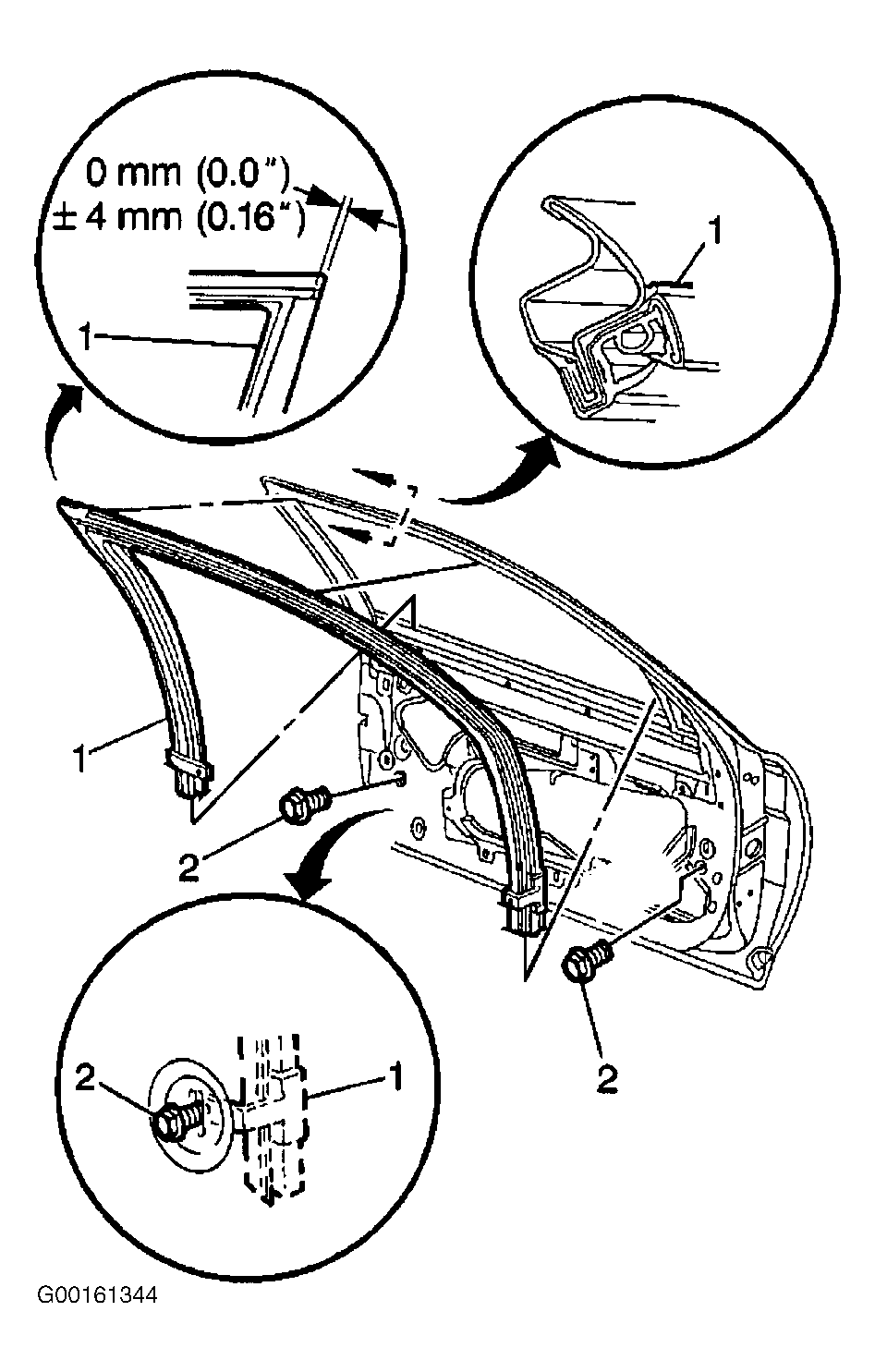

Fig 1: Removing Front Window Weatherstrip

Courtesy of GENERAL MOTORS CORP.
