Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Express Down Module | Included As Part Of The Left Front Window Switch. See Fig 1 |
| Front Window Regulator Motor | In Center Of Front Door. See Fig 1 |
| Fuse Block | On Right Side Of Instrument Panel, In The Right Front Door Opening. |
| Front Window Switch | In Center Of Left Front Door Panel. See Fig 1 |

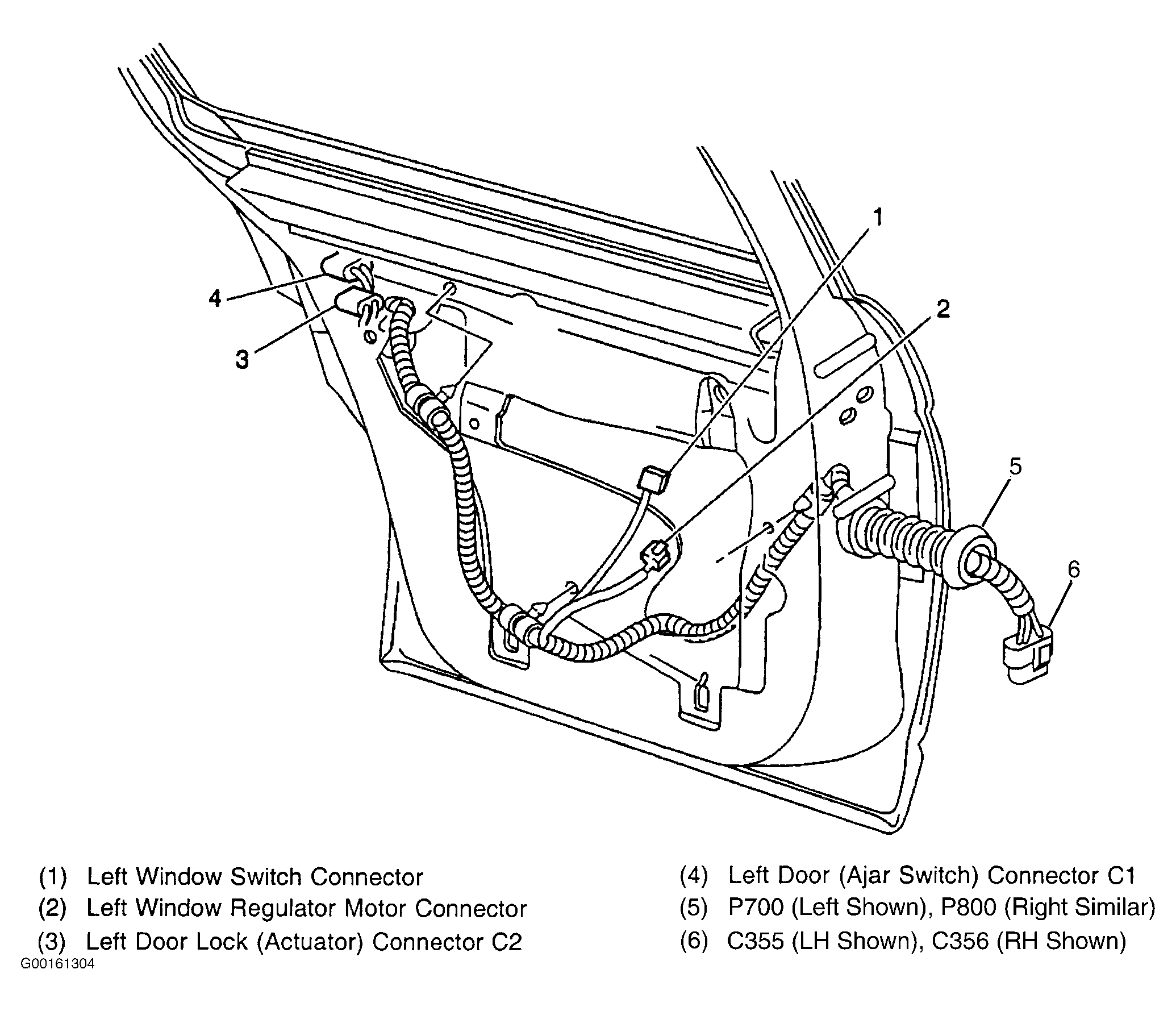

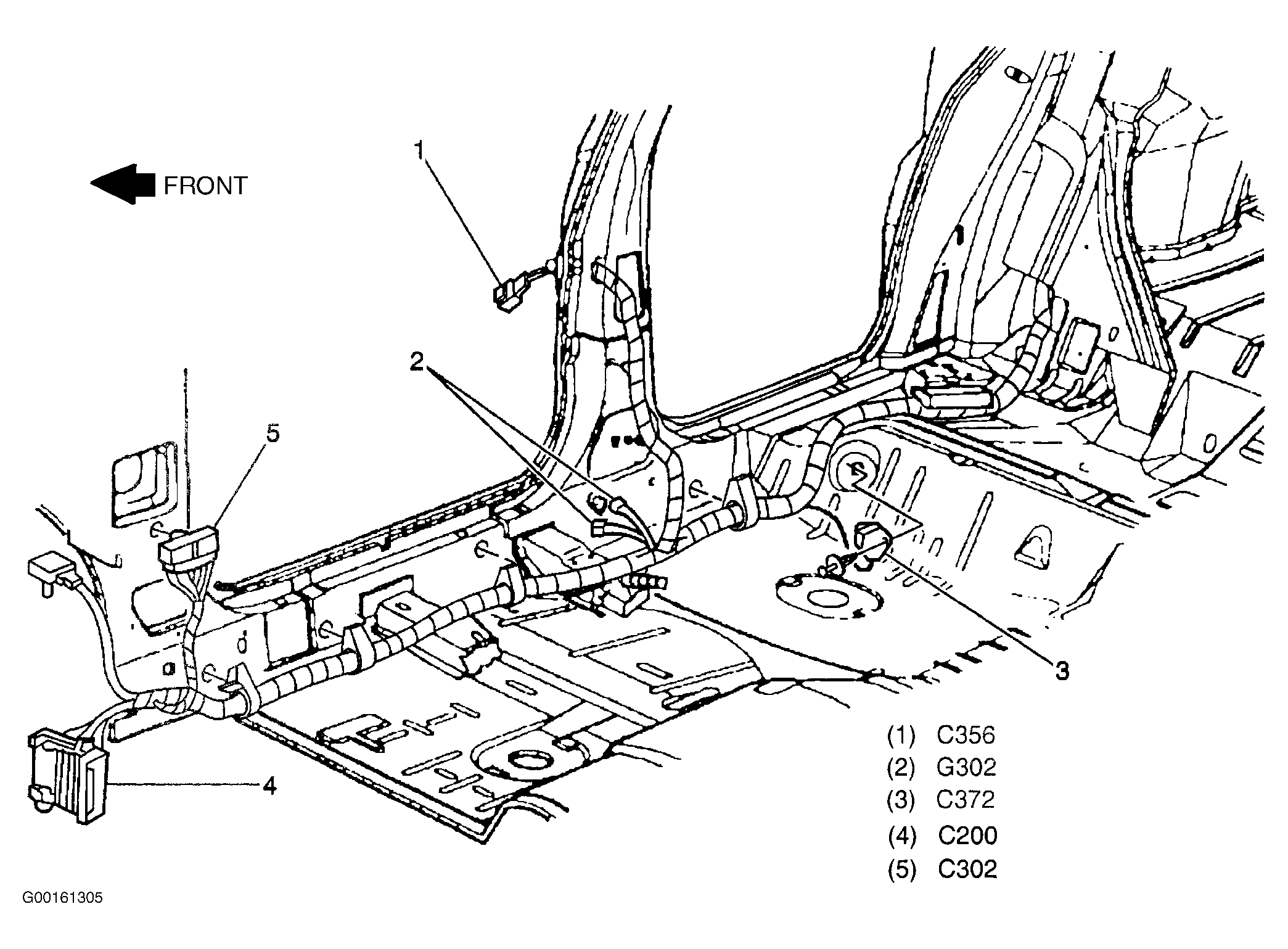

| Rear Window Regulator Motor | In Center Of Rear Door. See Fig 2 |
| Rear Window Switch | In Center Of Rear Door Panel. See Fig 2 |
| C200 (56 Cavities) | In Instrument Panel Wiring Harness To Body Wiring Harness, Behind The Right Side Of The Instrument Panel Near Shroud. See Fig 3 |
| C301 (16 Cavities) | In Body Wiring Harness To Left Front Door Wiring Harness, Behind The Trim At Base Of The A-Pillar. See Fig 1 |
| C302 (16 Cavities) | In Body Wiring Harness To Right Front Door Wiring Harness, Behind The Trim At Base Of The A-Pillar. See Fig 3 |
| C355 (8 Cavities) | In Body Wiring Harness To Left Rear Door Wiring Harness, Behind The Trim At Base Of The B-Pillar. See Fig 2 |
| C356 | In Crossbody Harness to Right Rear Door Harness, Mounted To The Right Sunshade. See Fig 2 |
| G302 | At The Base Of The Right B-Pillar. See Fig 3 |
| P500 | At Left A-Pillar. See Fig 1 |
| P600 | At Right A-Pillar. See Fig 1 |
| P700 | At Left B-Pillar. See Fig 2 |
| P800 | At Right B-Pillar. See Fig 2 |
| S303 | In Crossbody Harness, Below The Right Front Seat Approximately 17 cm (7 in) From The G302 Breakout |
| S307 | In Crossbody Harness, Below The Right Front Seat Approximately 70 cm (28 in) From The G302 Breakout |
| S504 | Left Front Door Wiring Harness, Approximately 12 cm (5 in) From The Window Switch Breakout |
| S604 | Right Front Door Wiring Harness, Approximately 12 cm (5 in) From The Window Switch Breakout |

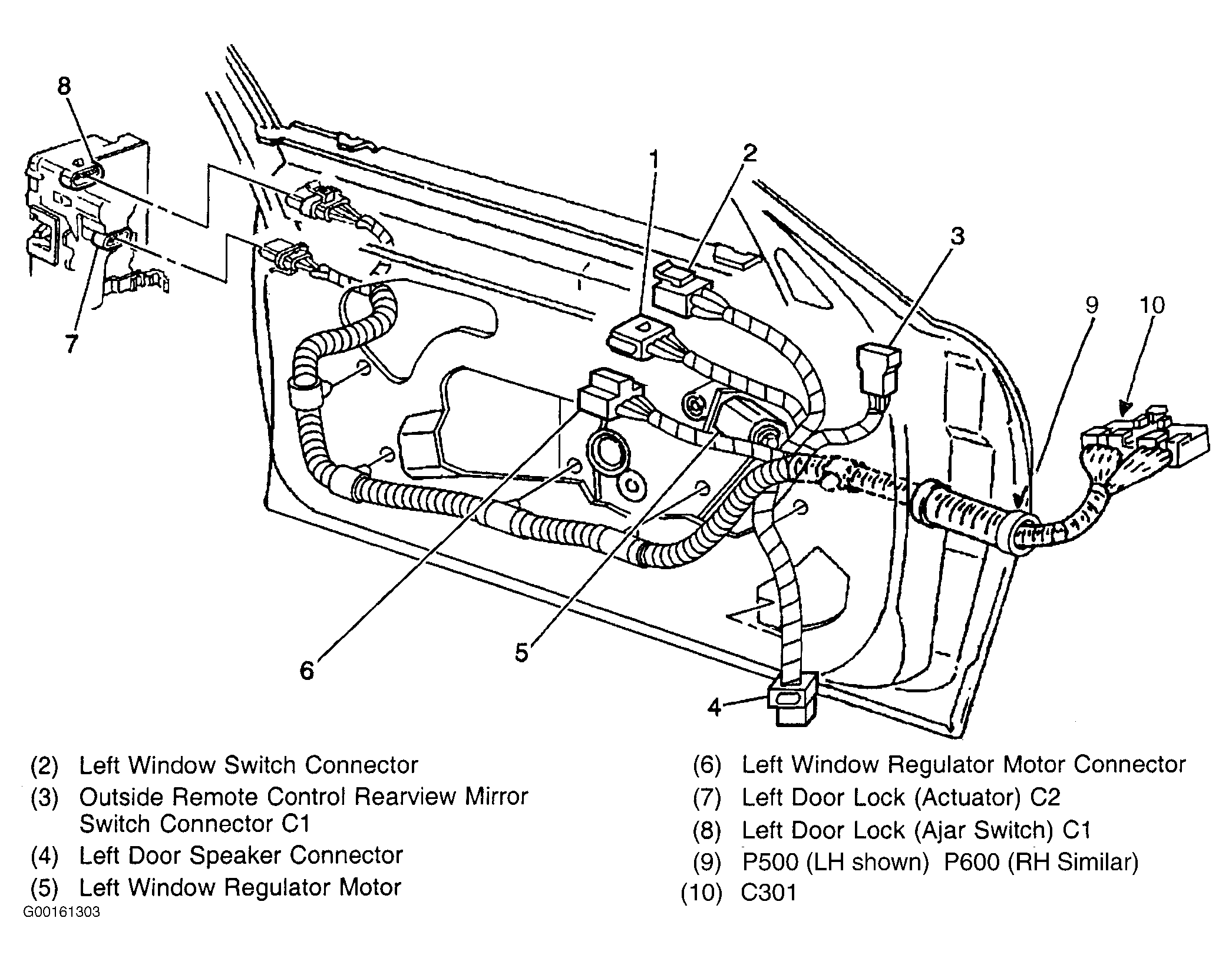

Fig 1: Locating Front Window Switch, Front Window Regulator Motor, Connector C301 & Grommet P500 & P600
