Wiring Diagrams

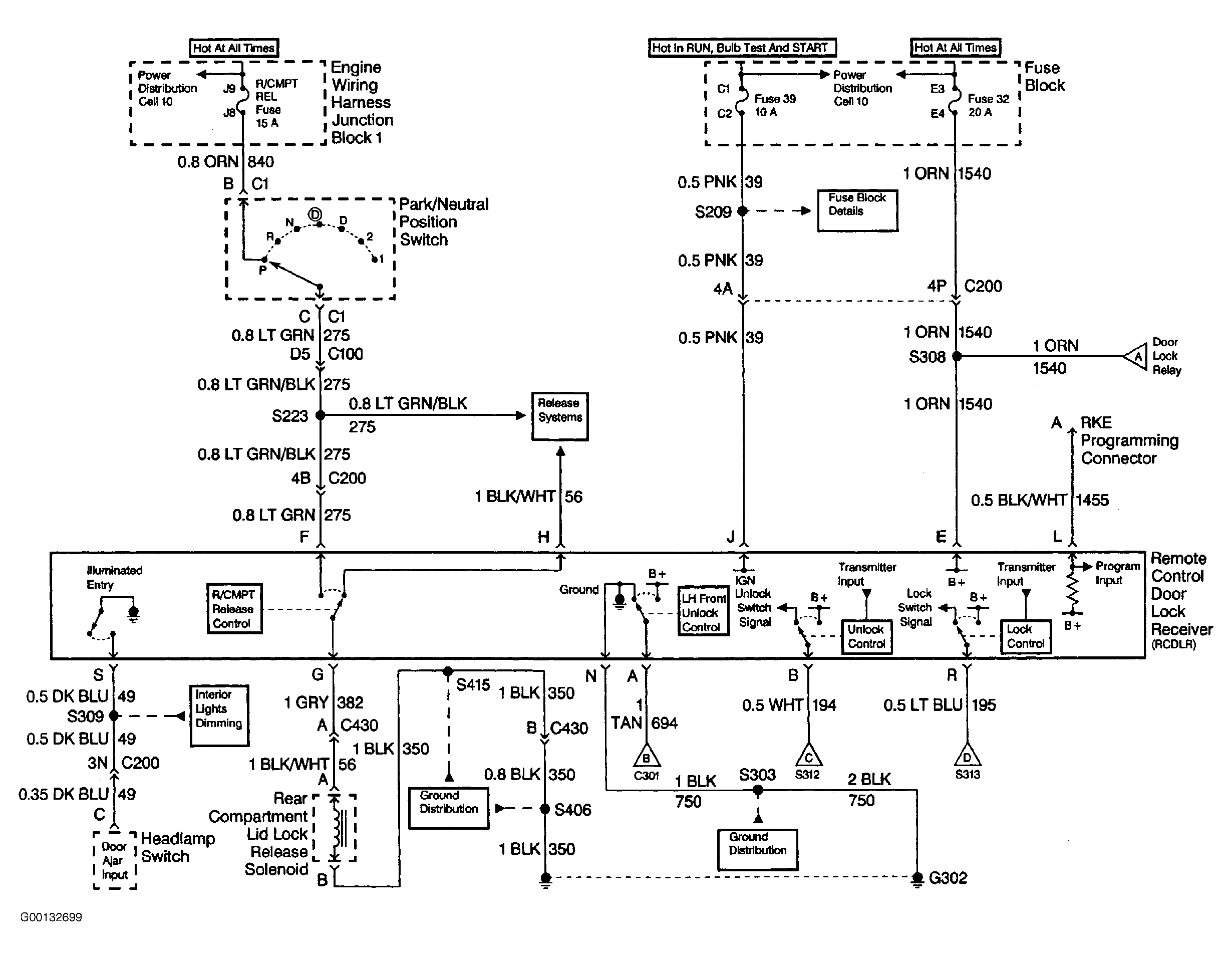

Fig 1: Remote Keyless Entry Schematic (1 Of 2)

G00132699

Courtesy of GENERAL MOTORS CORP.

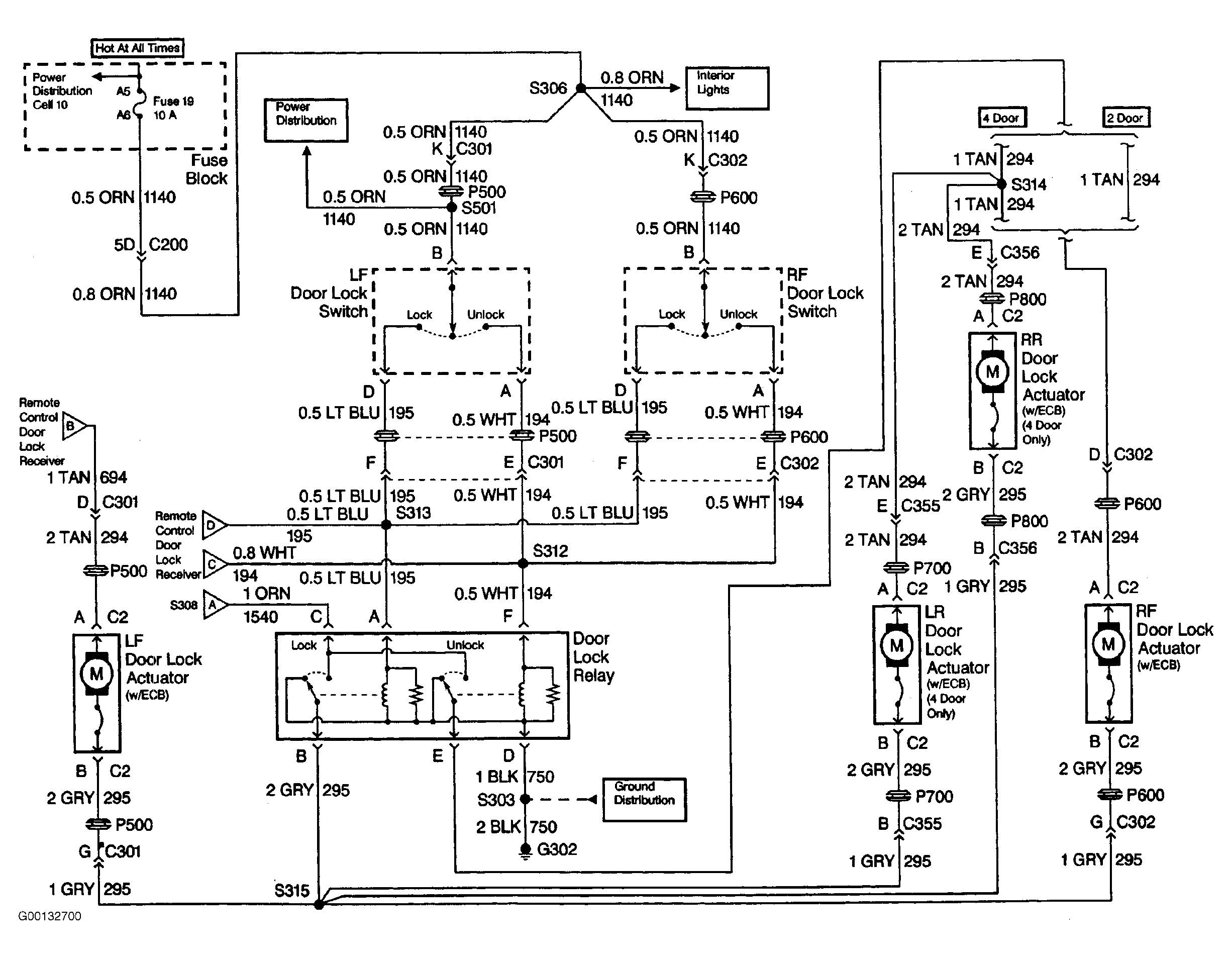

Fig 2: Remote Keyless Entry Schematic (2 Of 2)

G00132700

Courtesy of GENERAL MOTORS CORP.
