Rear Compartment Lid Release System Check

To perform rear compartment lid release system check, see Fig 1 .

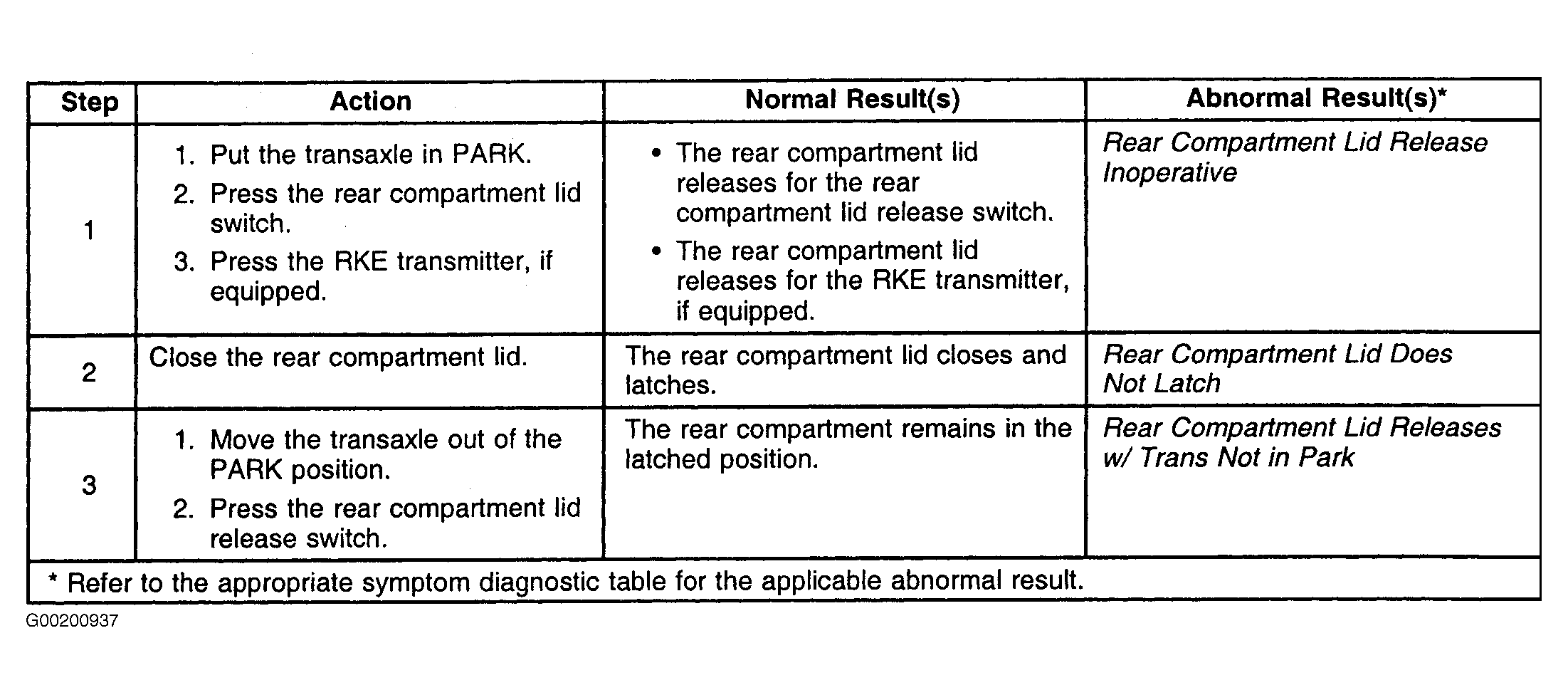

Fig 1: Rear Compartment Lid Release System Check
G00200937Courtesy of GENERAL MOTORS CORP.
