Remote Keyless Entry System Inoperative

NOTE: For references to Remote Keyless Entry System Check, see TROUBLE SHOOTING  .

To perform test, see Fig 1 and Fig 2 .

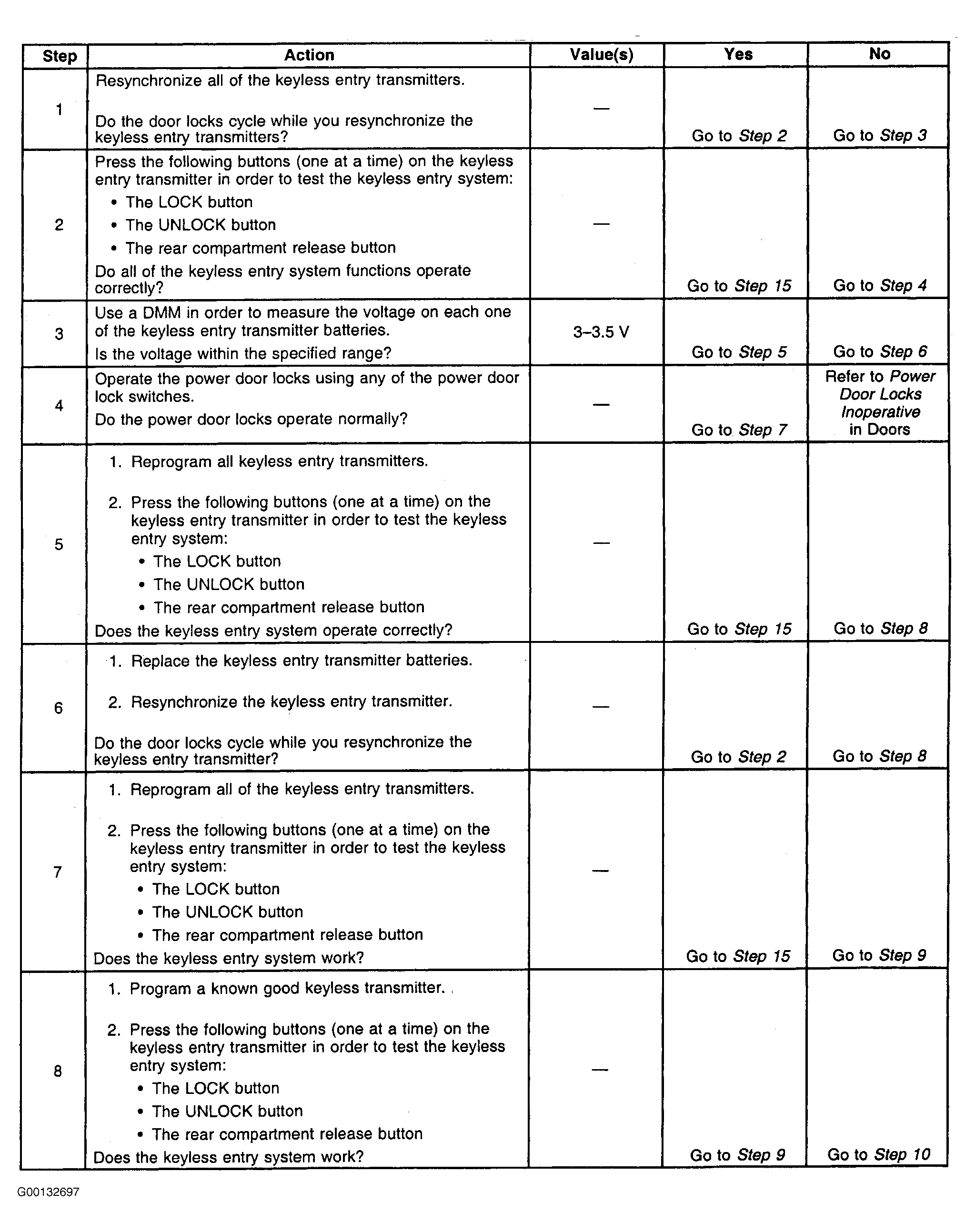

Fig 1: Remote Keyless Entry System Inoperative (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

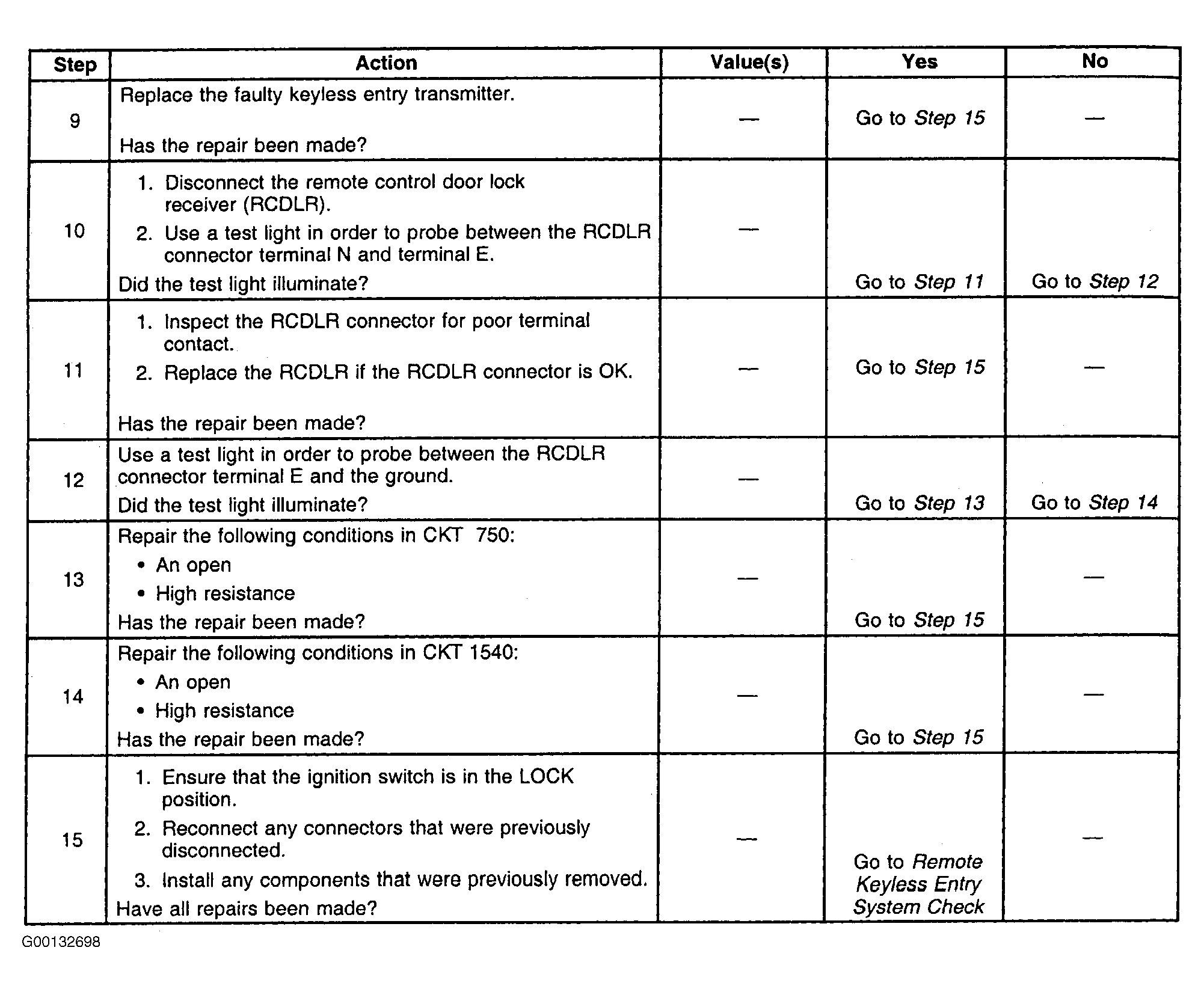

Fig 2: Remote Keyless Entry System Inoperative (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
