Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Door Lock Relay | Behind Right Side Of Instrument Panel, Above C200. |
| Door Lock Switch | At Center Edge Of Front Door. |
| Door Lock Actuator (Front) | At Rear Edge Of Front Door. |
| Door Lock Actuator (Rear) | At Rear Edge Of Front Door. |

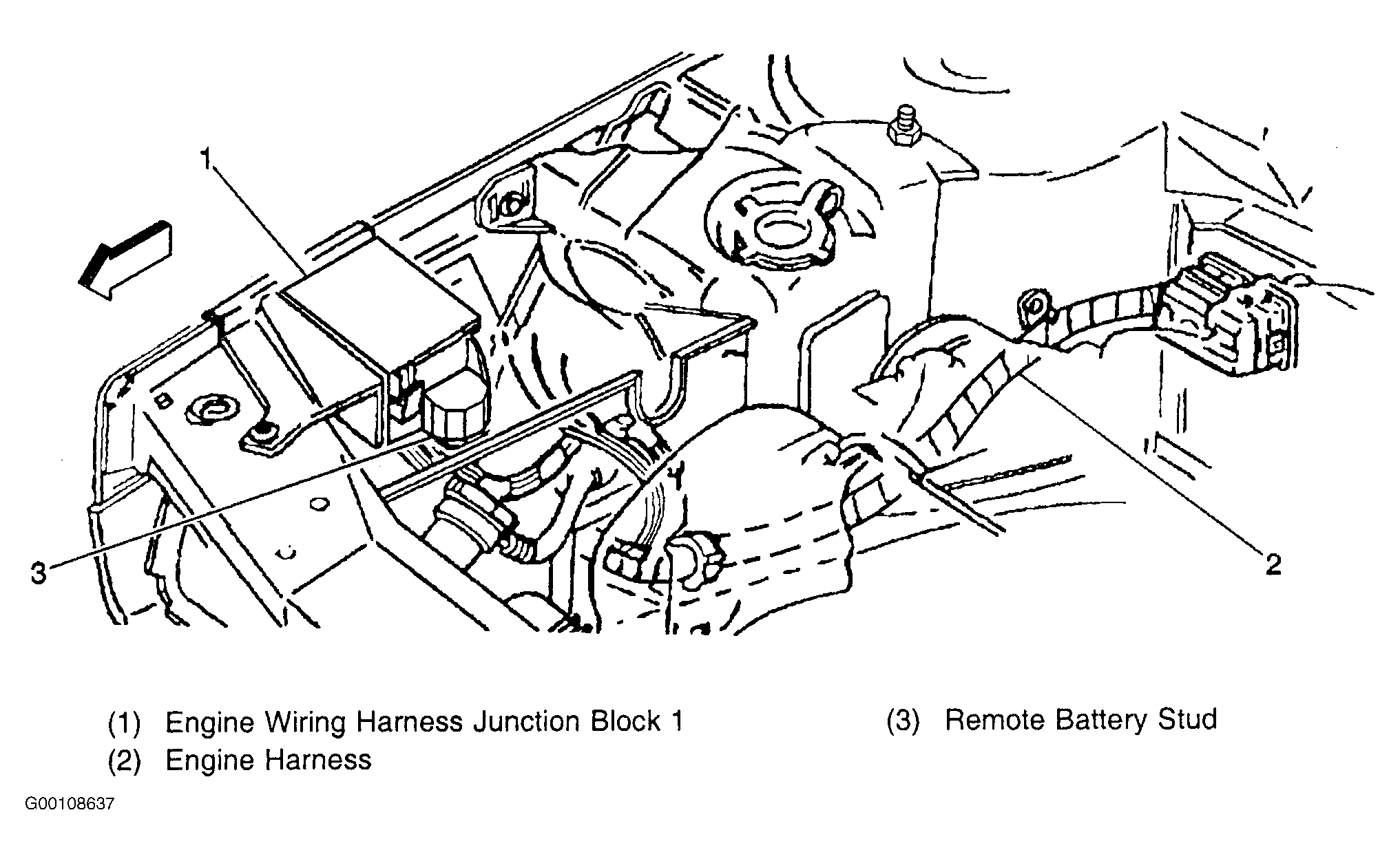

| Engine Wiring Harness, Junction Block 1 | At Right Side Of The engine Compartment Forward Of Strut Tower. See Fig 1 |
| Fuse Block | At Right Side Instrument Panel, In The Right Front Door Opening. |
| Headlamp Switch | At Left Side Of Instrument Panel, To The Left Side Of Steering Column. |
| Rear Compartment Lid Lock Release Solenoid | At Center Of Rear Compartment Lid. |

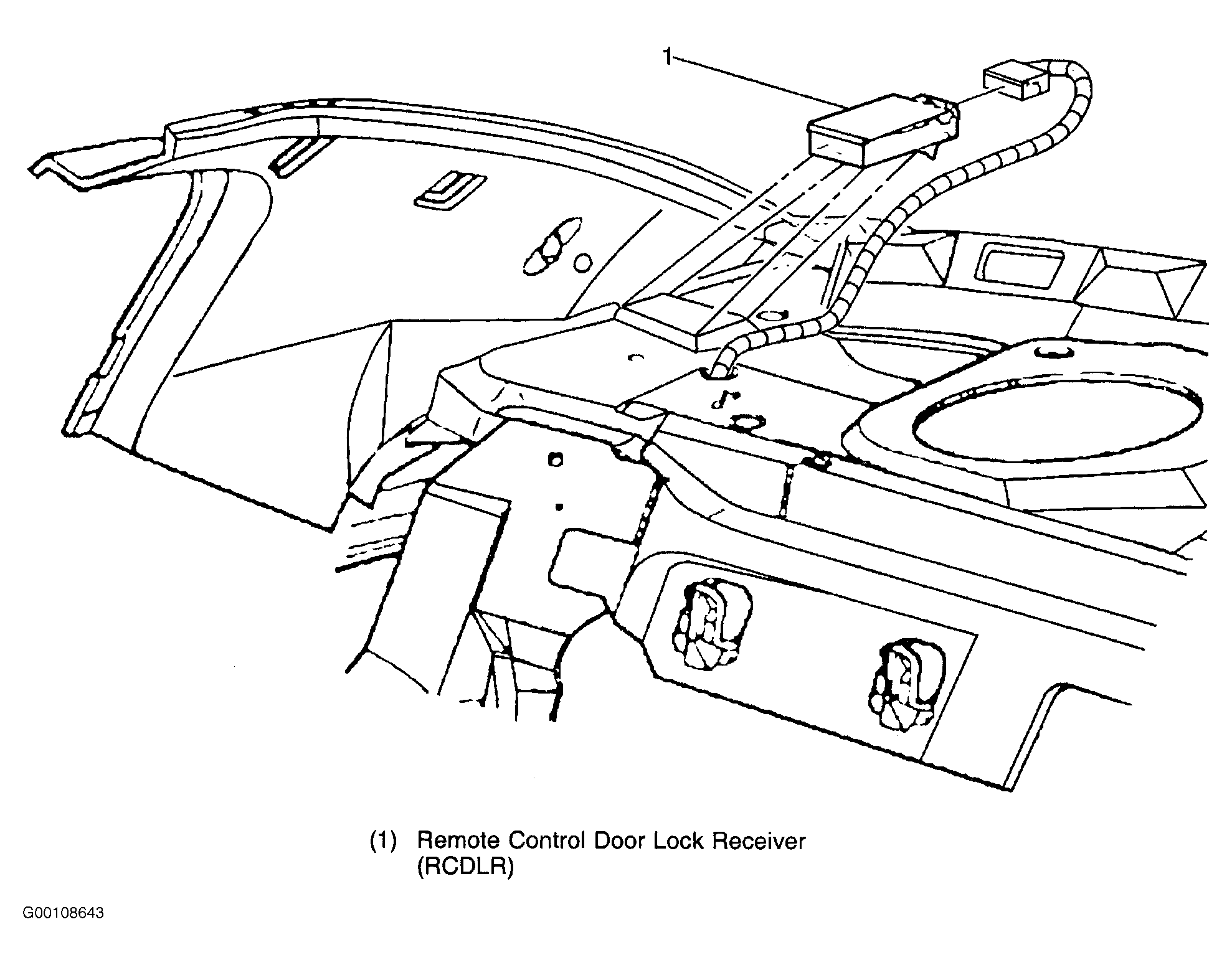

| Remote Control Door Lock Receiver (RCDLR) | Below Right Rear Window Trim Panel. See Fig 2 |

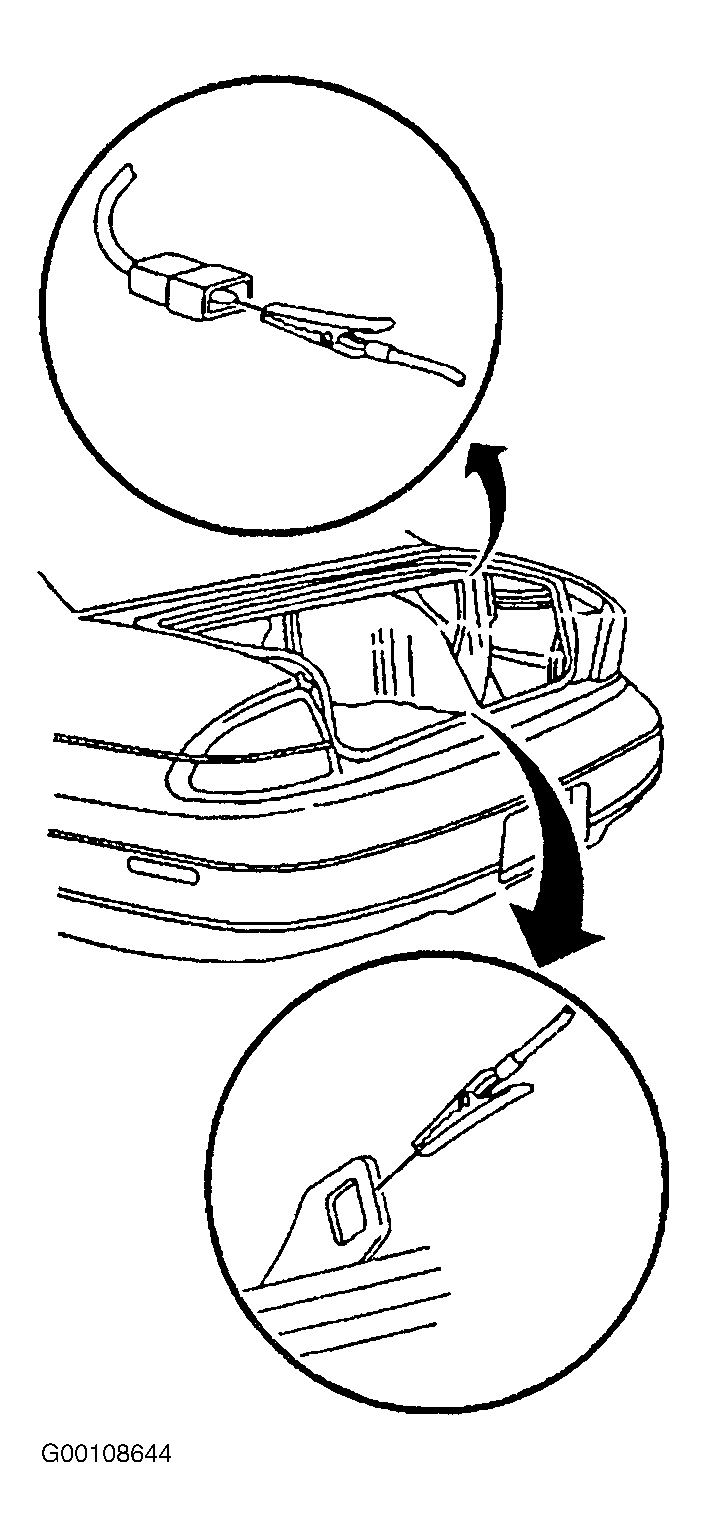

| RKE Programming Connector | In The right Side Of The Rear Compartment, Taped To Harness, Near Antenna Mast. See Fig 3 |

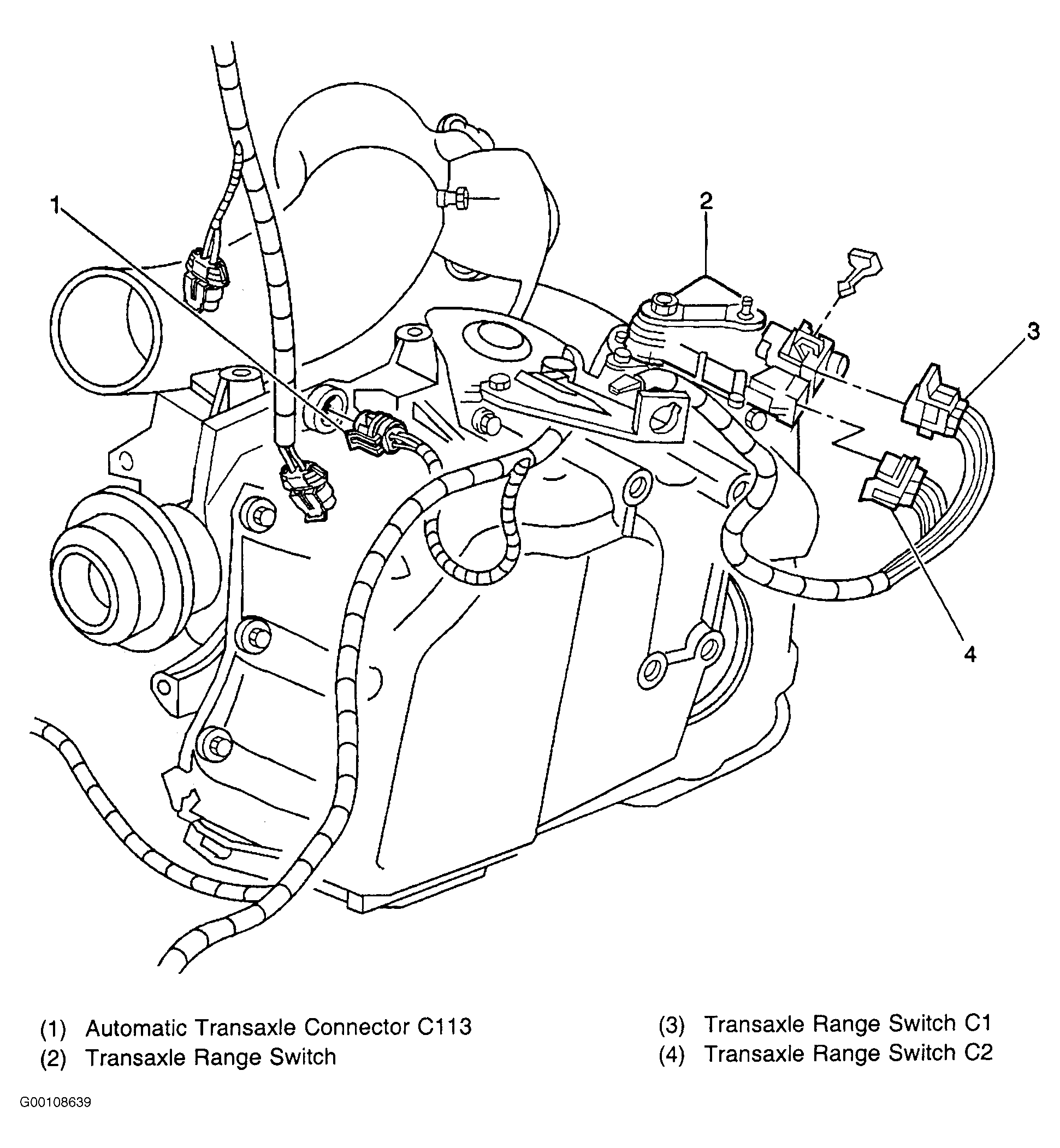

| Transmission/Transaxle Range Switch (VIN K) | In Left Side Of Engine, On The Transmission/Transaxle. See Fig 4 |

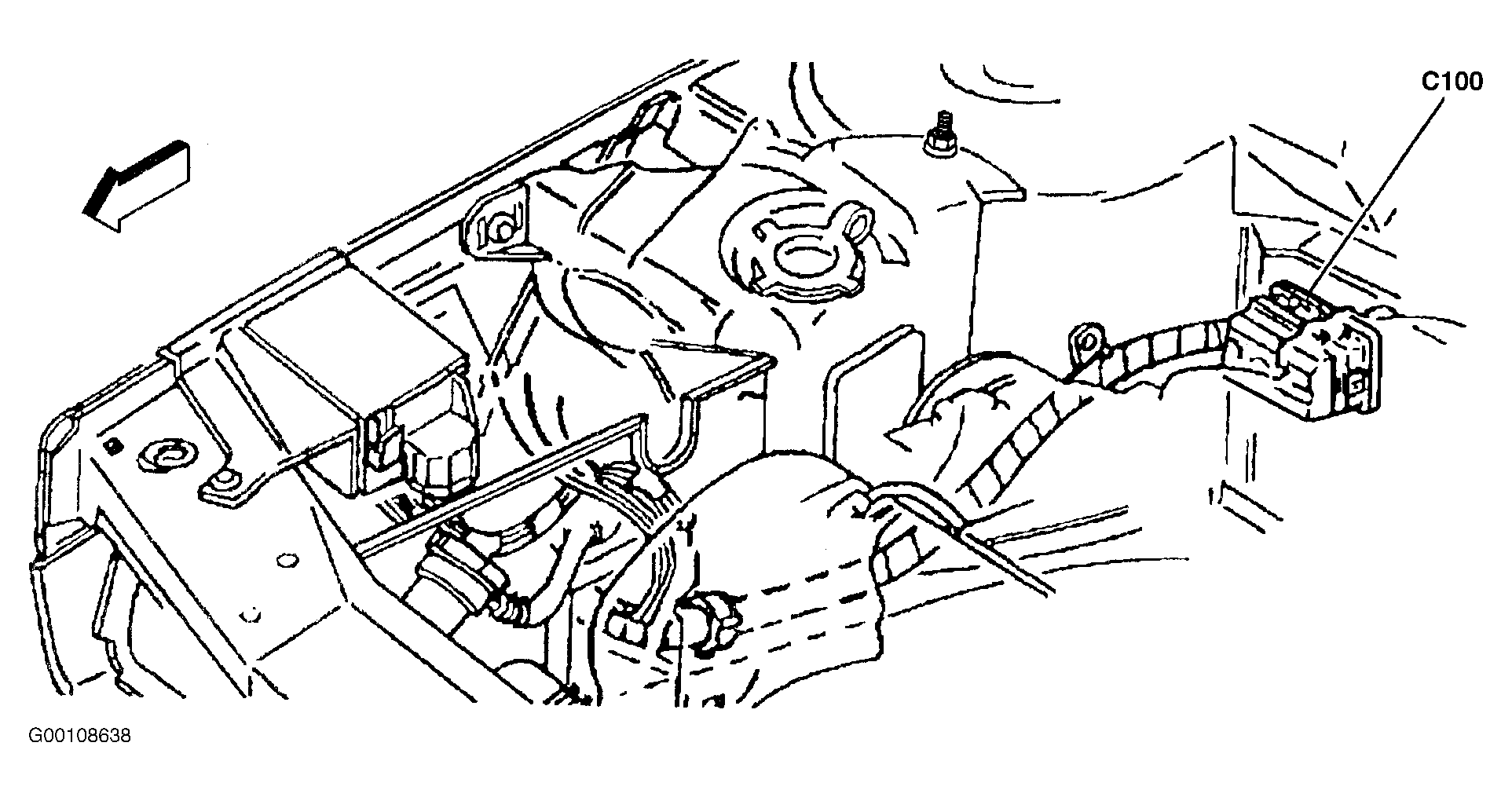

| C100 (36 Cavities) | In Engine Harness To The Instrument Panel Harness, In The Right Side Of The Dash, Near The Strut Tower. See Fig 5 |

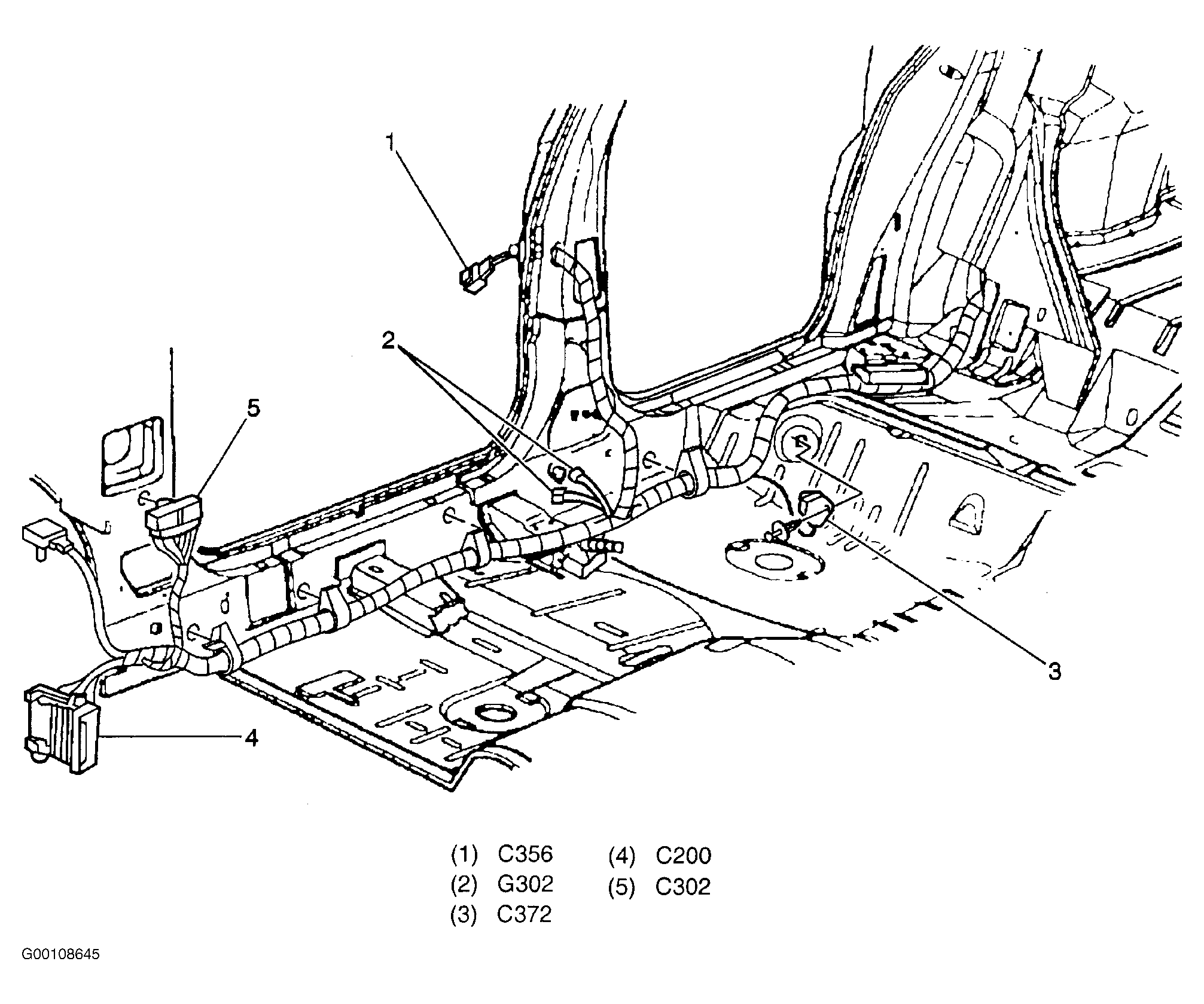

| C200 (102 Cavities) | In Instrument Panel Harness To the Crossbody Harness, Mounted Behind The Right Side Of The Instrument Panel, Near The Shroud. See Fig 6 |

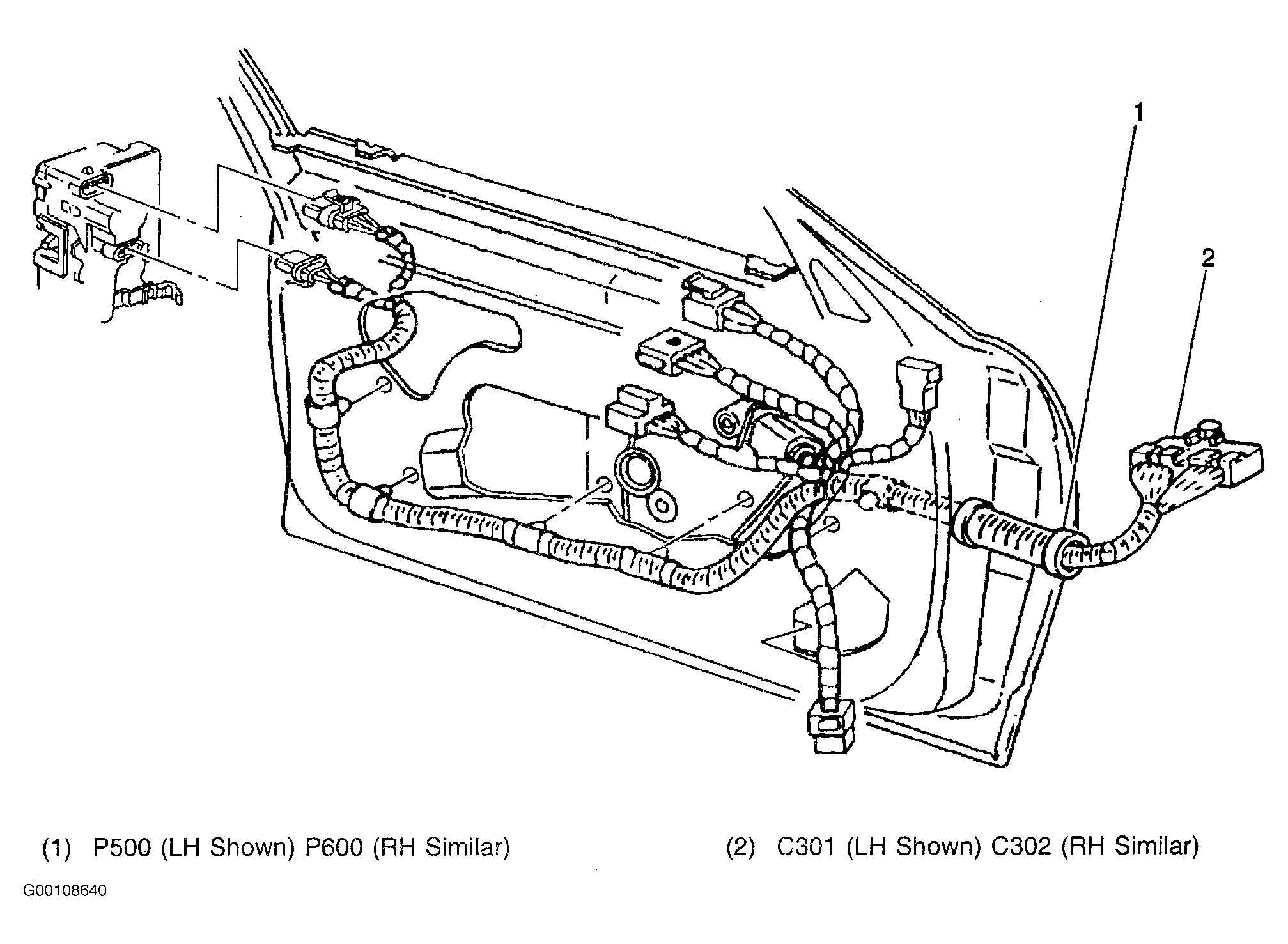

| C301 (1 Cavity) | In Crossbody Harness To The Left Front Door Harness, Mounted To The Left A Pillar. See Fig 7 |
| C302 (23 Cavities) | In Crossbody Harness To The Right Front Door Harness, Mounted To The Right A Pillar. See Fig 6 |

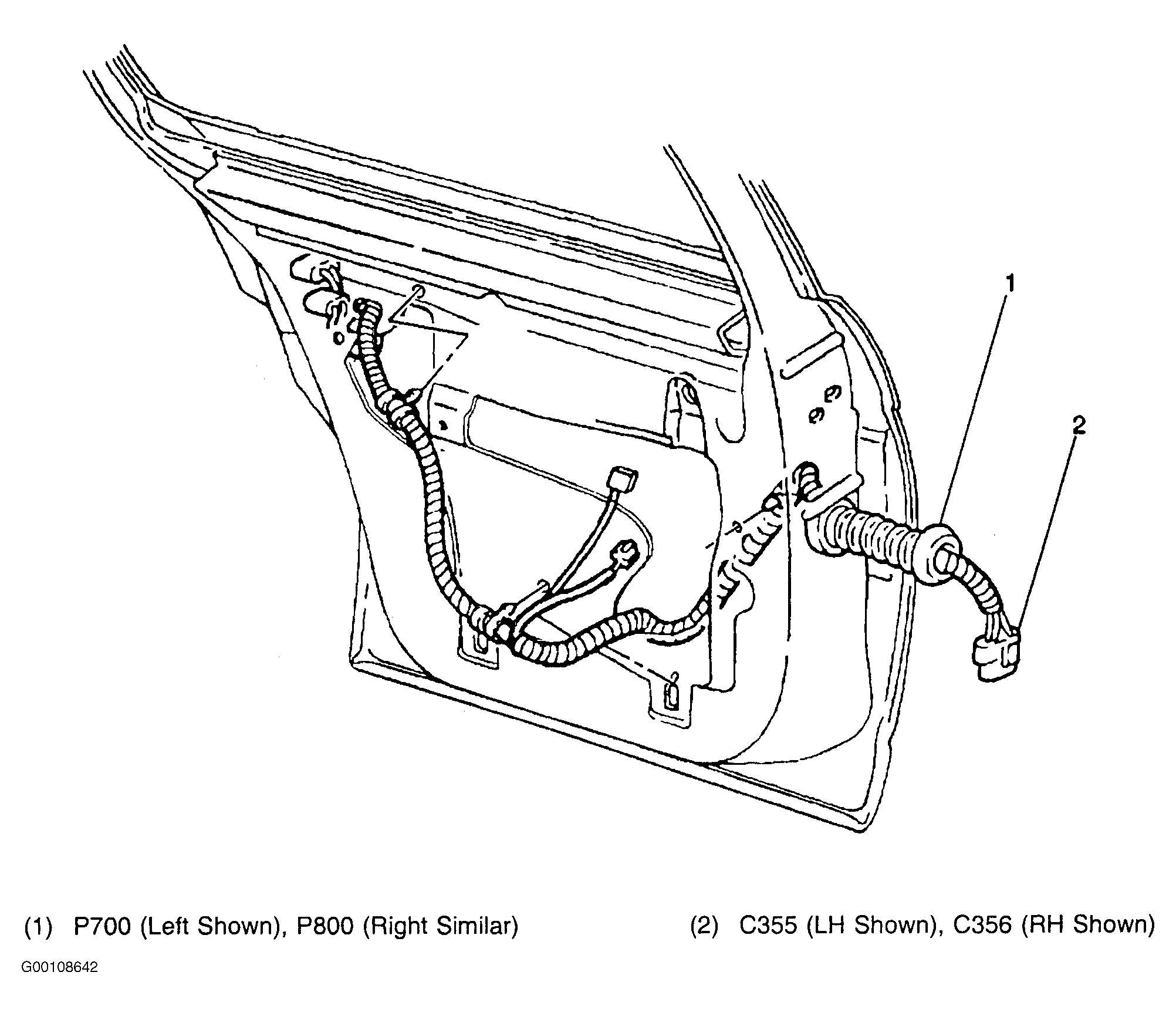

| C355 (8 Cavities) | In Crossbody Harness To The Left Rear Door Harness, Mounted To The Left B Pillar. See Fig 8 |
| C356 (8 Cavities) | In Crossbody Harness To the Right Rear Door Harness, Mounted To The Right Sunshade. See Fig 8 |

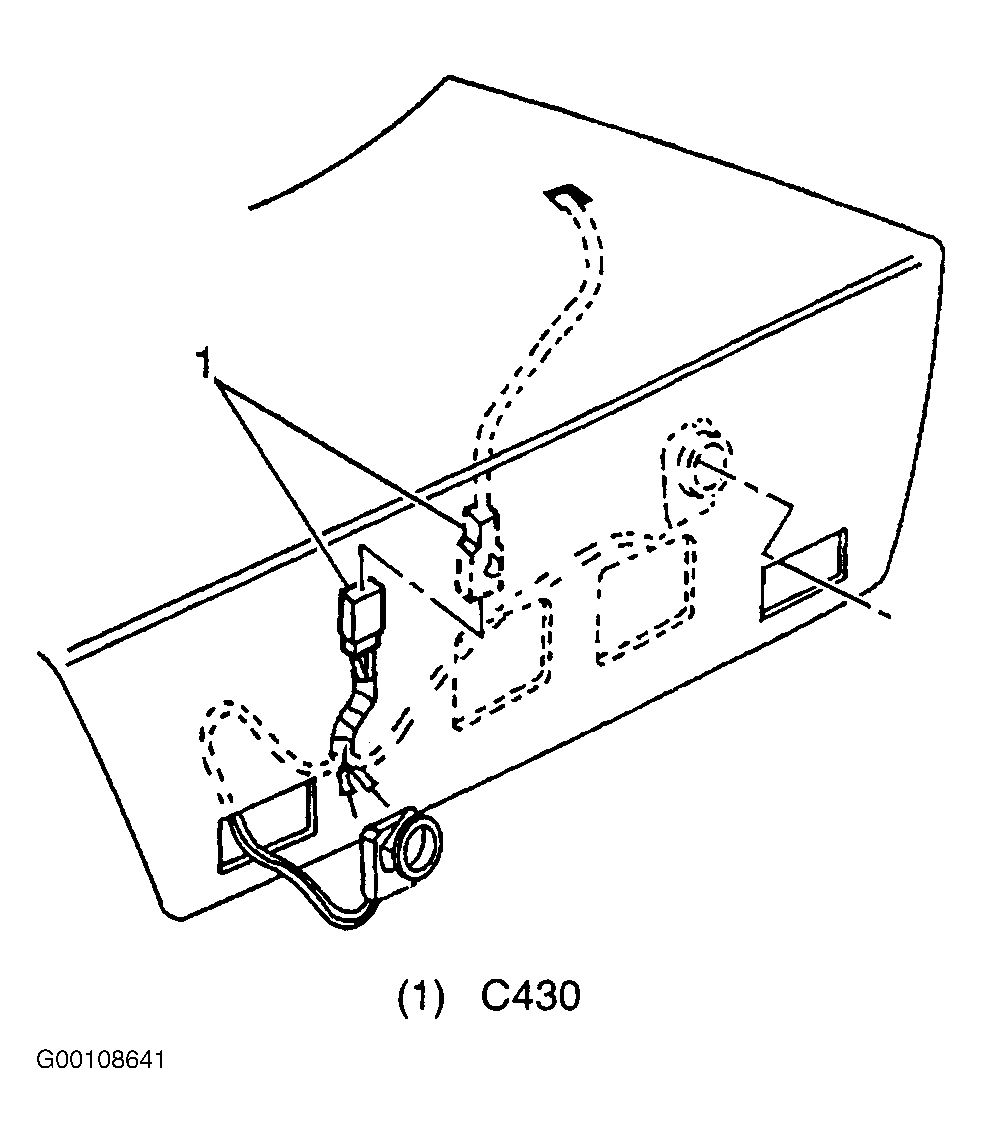

| C430 (4 Cavities) | At Center Rear Of The Rear Compartment Lid. See Fig 9 |
| G302 | At The Base Of Right B Pillar. See Fig 6 |
| P500 | At Left A Pillar. See Fig 7 |
| P600 | At Right A Pillar. |
| P700 | At Left B Pillar. See Fig 8 |
| P800 | At Right B Pillar. |
| S209 | In Instrument Panel Harness, Behind The Right Side OF The Driver Knee Bolster About 5 Cm (2 in) from the C201 Breakout. |
| S223 | In Instrument Panel Harness, Below The Instrument Panel Compartment About 8 Cm (3 In) from the C100 Breakout. |
| S303 | In Crossbody Harness, Below The Right Front Seat About 17 cm (7 in) From The G302 Breakout. |
| S306 | In Crossbody Harness, Below The Right Front Seat About 66 cm (26 in) From The G302 Breakout. |
| S308 | In Crossbody Harness, In The Right A Pillar About 10 Cm (4 in) From The C302 Breakout. |
| S309 | In Crossbody Harness Below The Right Front Seat About 10 cm (4 in) From The C302 Breakout. |
| S312 | In Crossbody Harness, Below The Right Front Seat About 36 cm (14 in) From The C302 Breakkout. |
| S313 | In Crossbody Harness, Below Right Front Seat About 42 cm (17 in) From The C302 Breakout. |
| S314 | In Crossbody Harness, Below Right Front Seat About 10 cm (4 in) From The C302 Breakout. |
| S315 | In Crossbody Harness, Below The Right Front Seat About 30 cm (12 in) From The C302 Breakout. |
| S406 | In Crossbody Harness, In The Rear Compartment Under The Rear Package Shelf About 15 cm (6 in) From The Left Rear Radio Speaker Breakout. |
| S415 | In Backup Lamp Harness, In the Rear Compartment Lid About 4 cm (2 in) From The Right Backup Lamp Breakout. |
| S501 | In Left Front Door Harness, About 4 cm (2 in) From The Window Regulator Motor Breakout. |
