Seat Control Module (SCM) C3

WARNING: This page is about a different car, the 1997 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

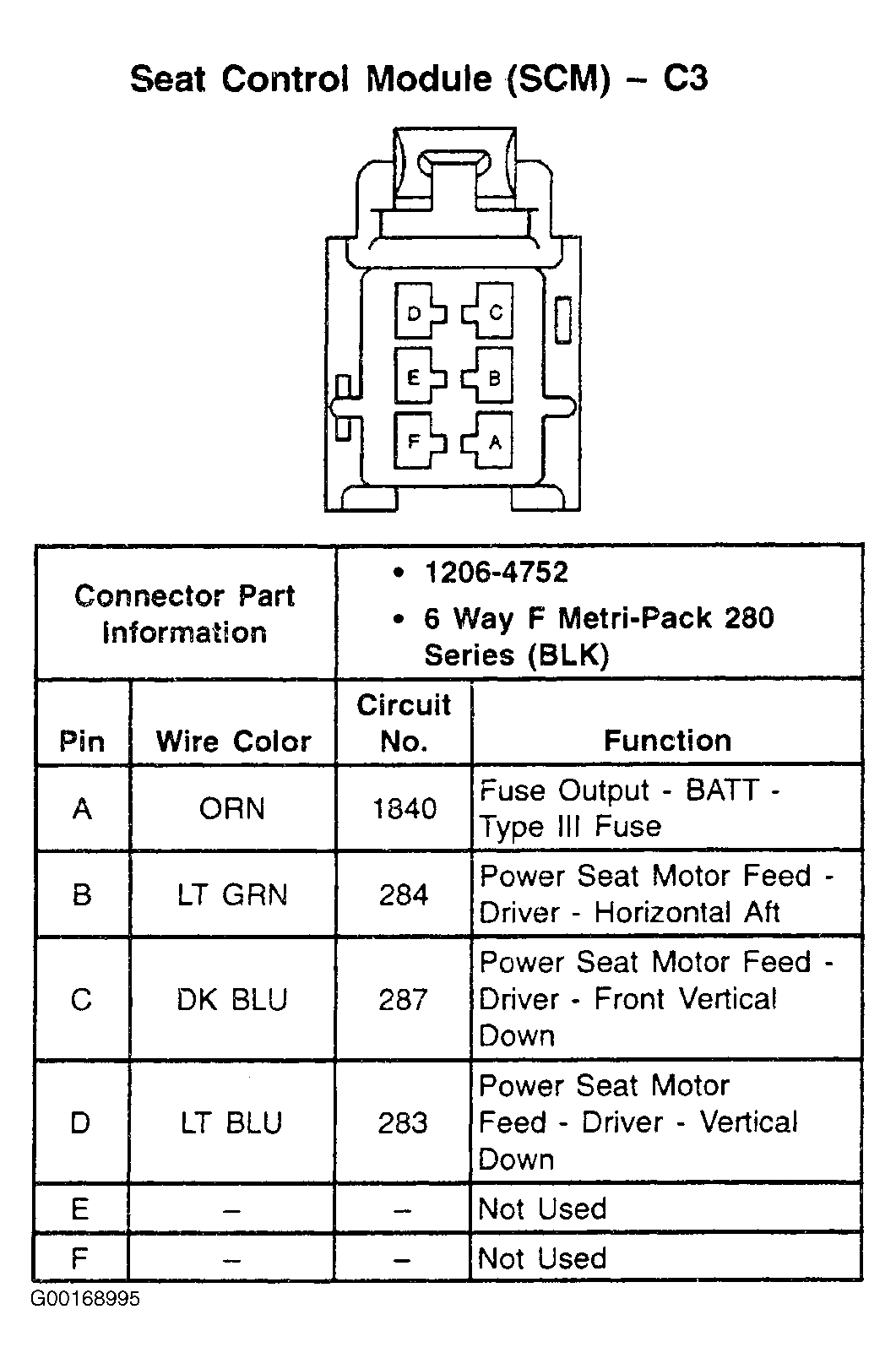

Fig 1: Seat Control Module (SCM) C3 - 6-Pin Connector (Black)
G00168995Courtesy of GENERAL MOTORS CORP.
