Seat Control Module (SCM) C2

WARNING: This page is about a different car, the 1997 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

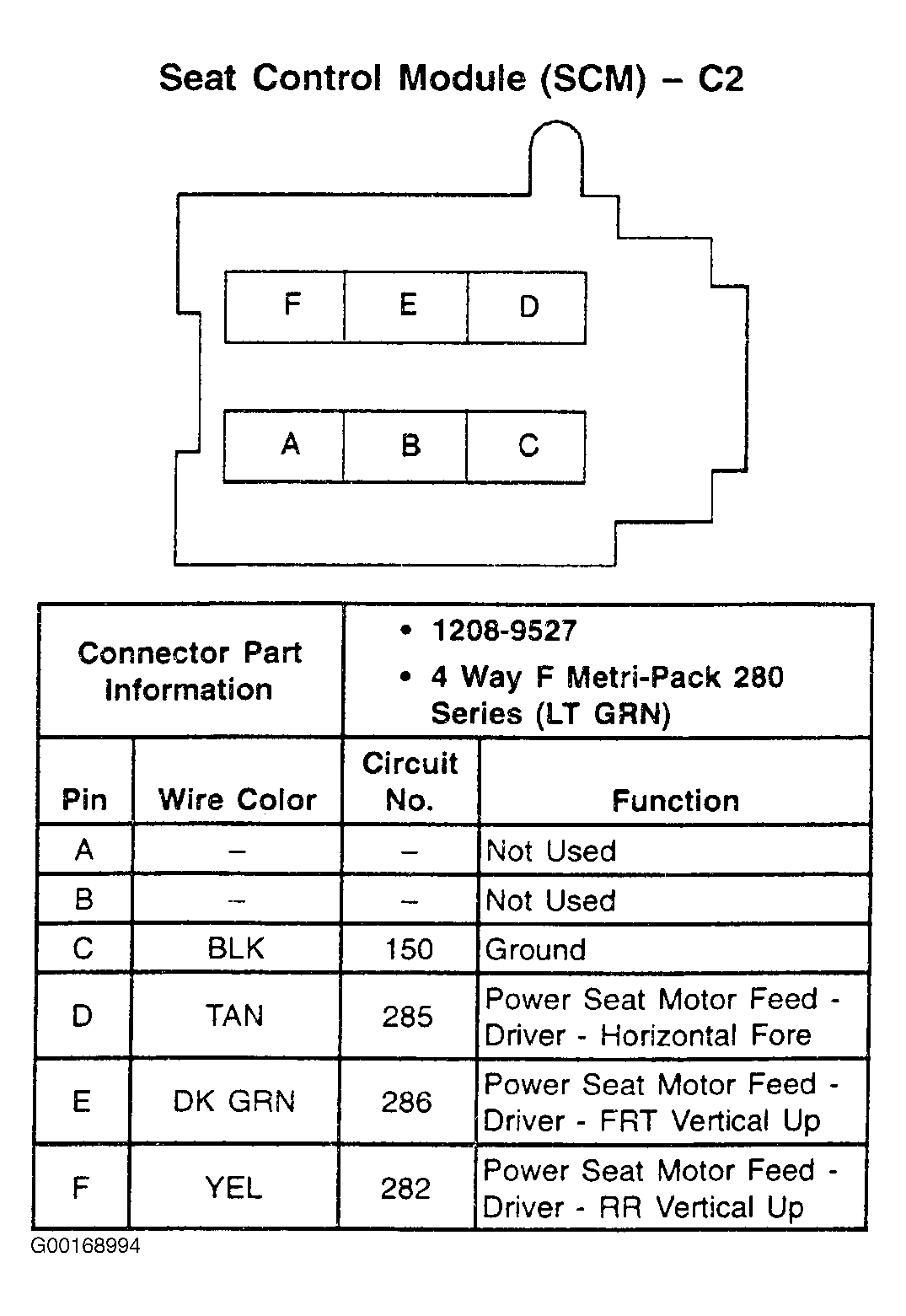

Fig 1: Seat Control Module (SCM) C2 - 6-Pin Connector (Light Green)
G00168994Courtesy of GENERAL MOTORS CORP.
