Body Control Module C1

WARNING: This page is about a different car, the 1997 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

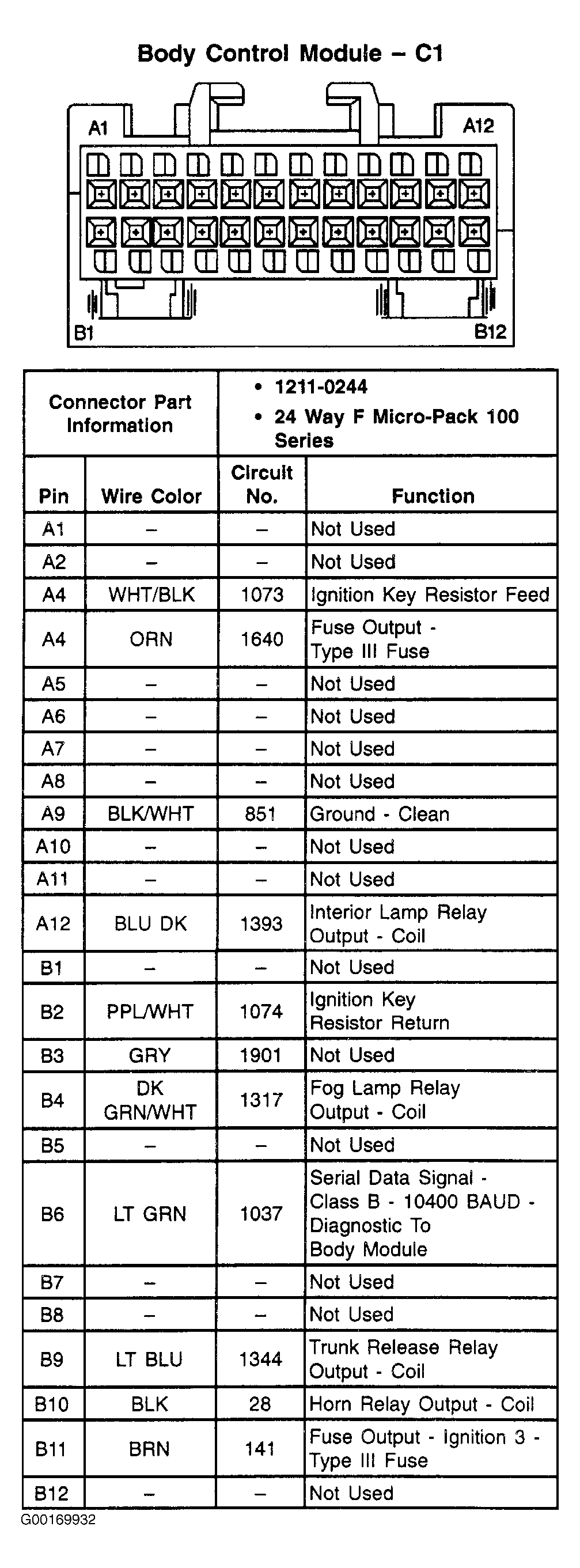

Fig 1: Body Control Module C1 - 24-Pin Connector
G00169932Courtesy of GENERAL MOTORS CORP.
