Driveline Disassembled Views

WARNING: This page is about a different car, the 2005 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

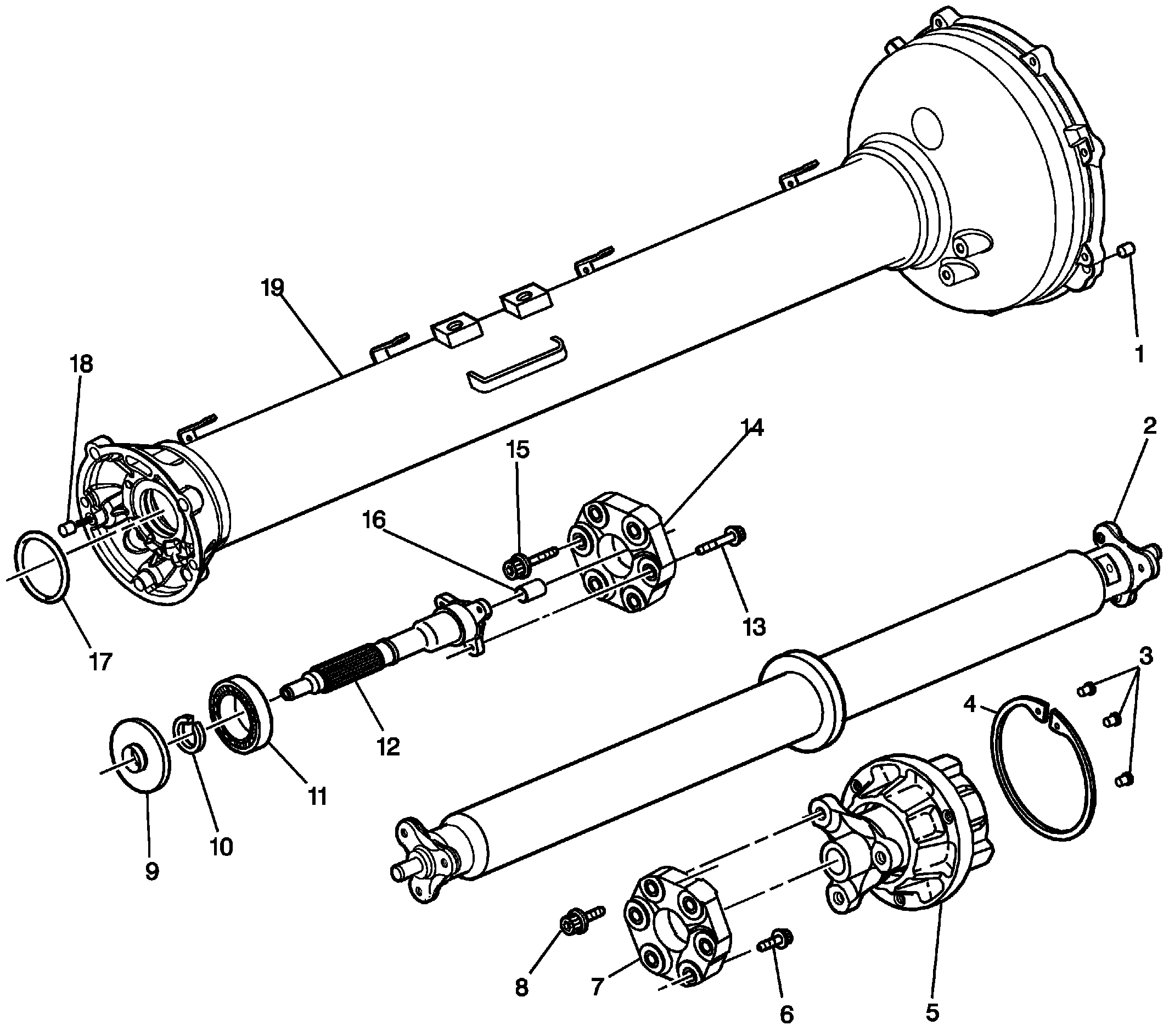

Fig 1: Driveline Assembly Component View - Manual Transmission

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Dowel Pin
2	Propeller Shaft
3	Plugs
4	Snap Ring
5	Bearing Housing Assembly
6	Bolt
7	Coupling
8	Bolt
9	Slinger Washer
10	Snap Ring
11	Bearing
12	Input Shaft
13	Bolt
14	Coupling
15	Bolt
16	Bushing
17	O-Ring
18	Dowel Pin
19	Driveline Tube

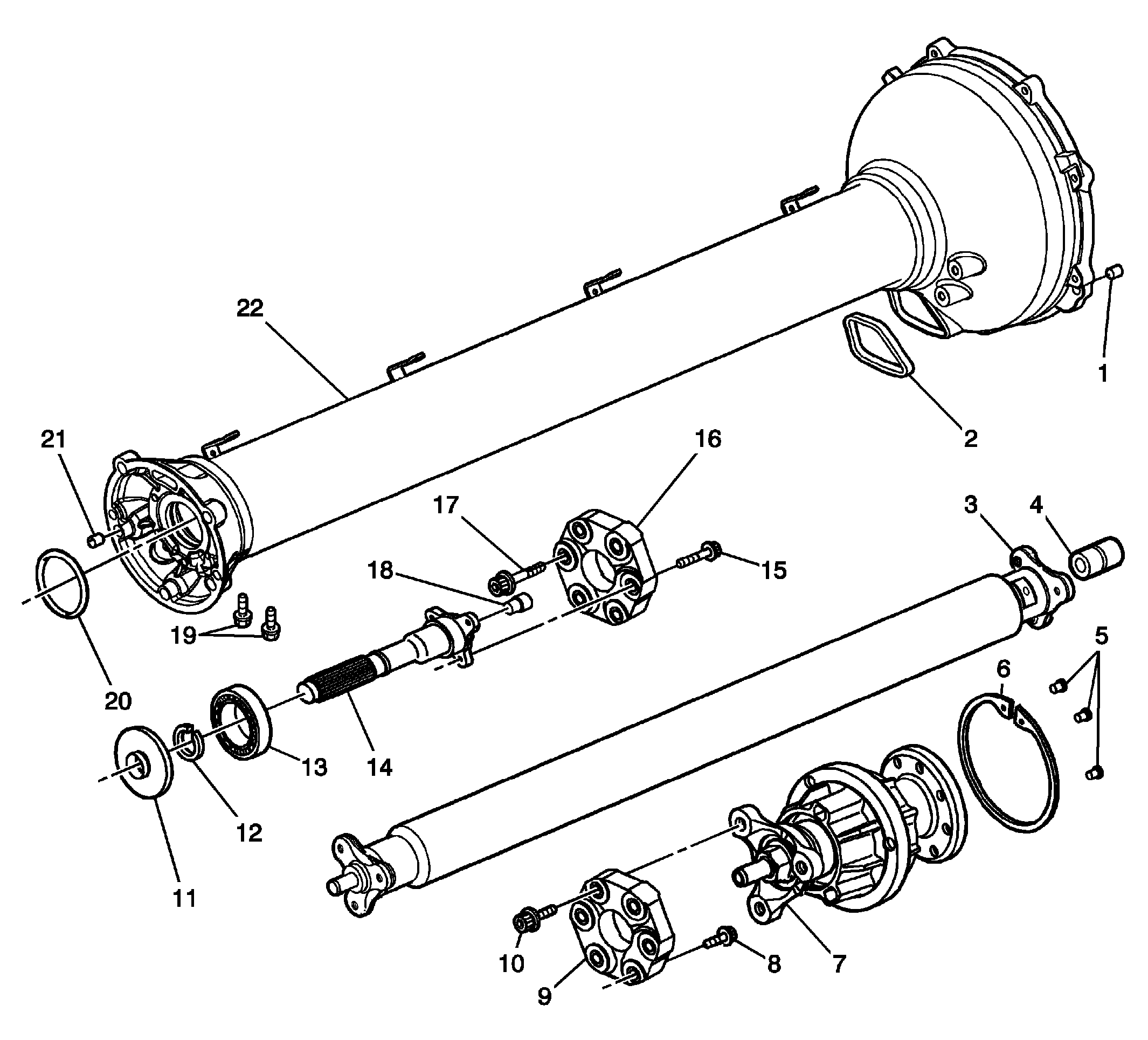

Fig 2: Driveline Assembly - Automatic Transmission

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Dowel Pin
2	Access Hole Plug
3	Propeller Shaft
4	Bushing
5	Plugs
6	Snap Ring
7	Bearing Housing Assembly
8	Bolt
9	Coupling
10	Bolt
11	Slinger Washer
12	Snap Ring
13	Bearing
14	Input Shaft
15	Bolt
16	Coupling
17	Bolt
18	Bushing
19	Plug
20	O-Ring
21	Dowel Pin
22	Driveline Tube

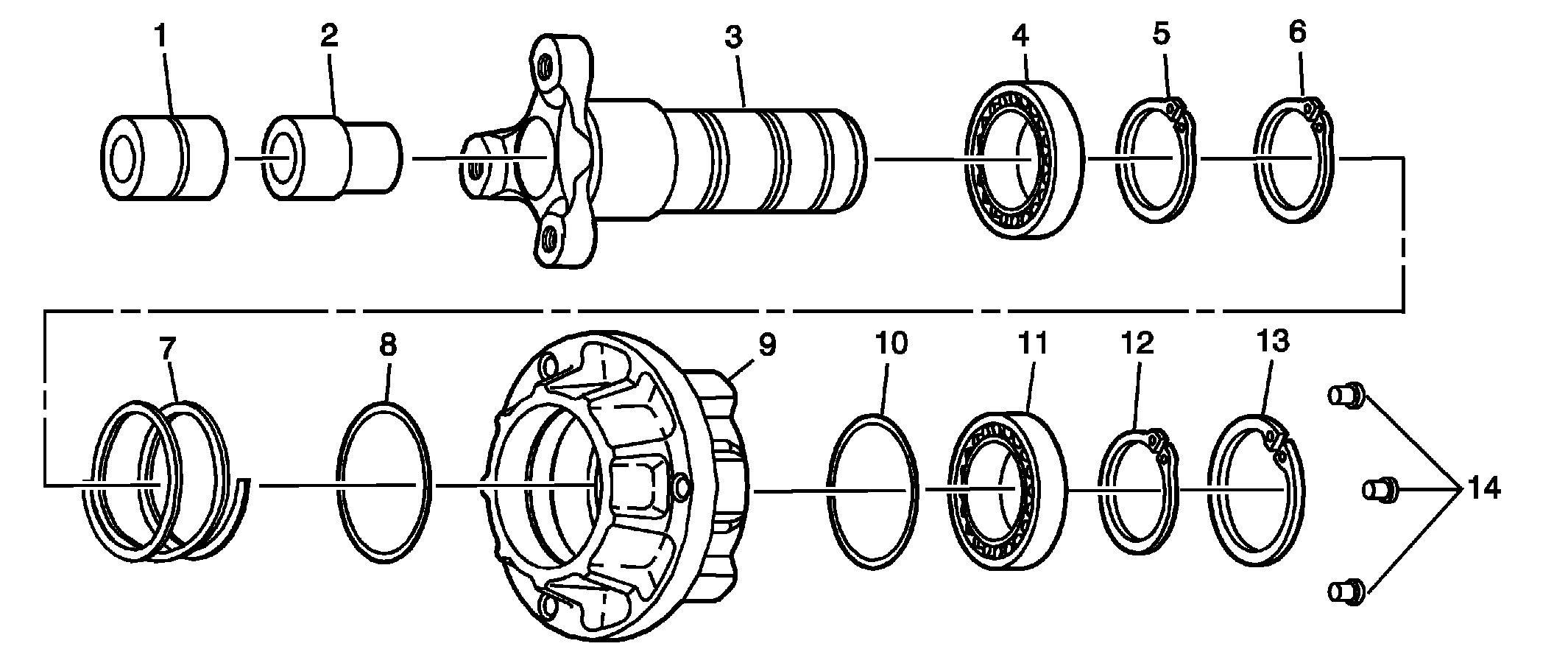

Fig 3: Rear Bearing Housing Assembly Component View - Manual Transmission

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Bushing
2	Bushing
3	Hub
4	Bearing
5	Snap Ring
6	Snap Ring
7	Wave Washer
8	O-Ring
9	Bearing Housing
10	O-Ring
11	Bearing
12	Snap Ring
13	Snap Ring
14	Plugs

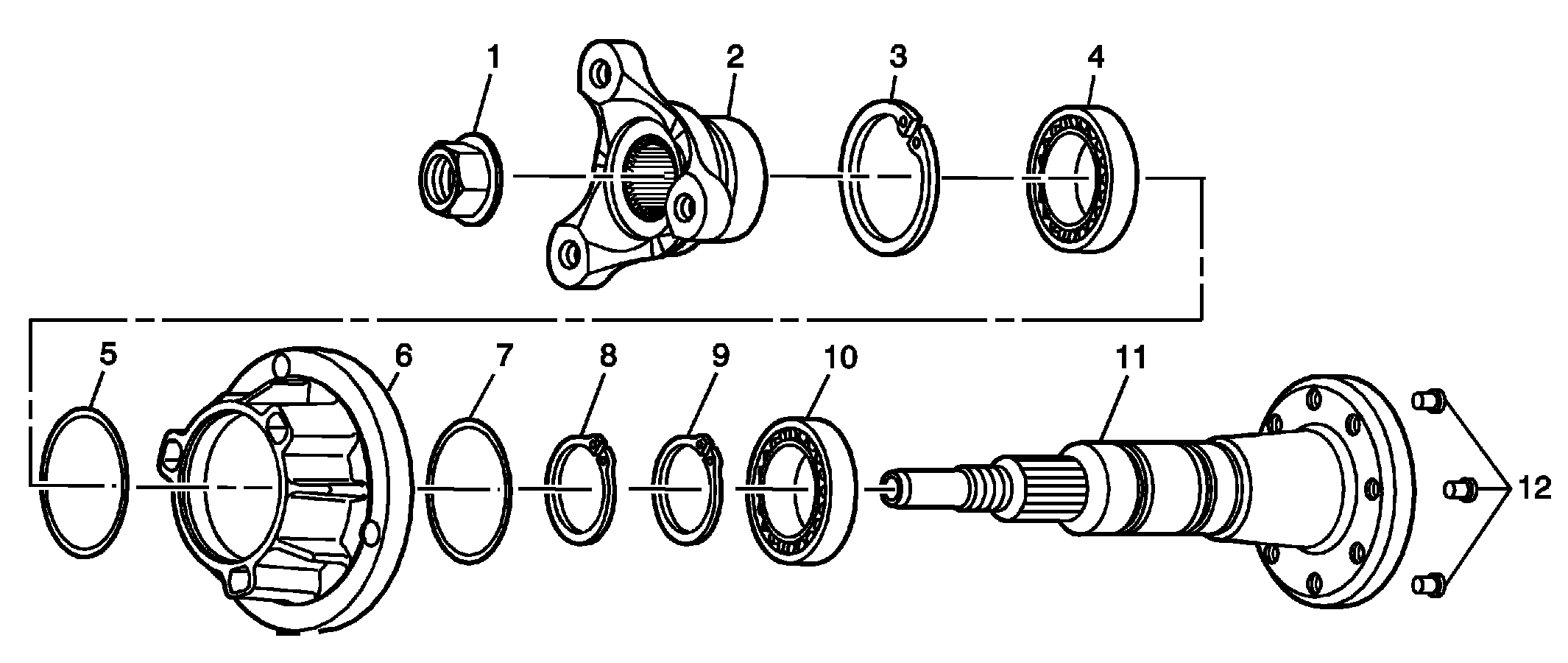

Fig 4: Rear Bearing Housing Assembly Component View - Automatic Transmission

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Nut
2	Hub
3	Snap Ring
4	Bearing
5	O-Ring
6	Bearing Housing
7	O-Ring
8	Snap Ring
9	Snap Ring
10	Bearing
11	Flexplate Spindle
12	Plugs
