Test F: Remote Keyless Entry System Inoperative

For test procedure, refer to illustration. See Fig 1 .

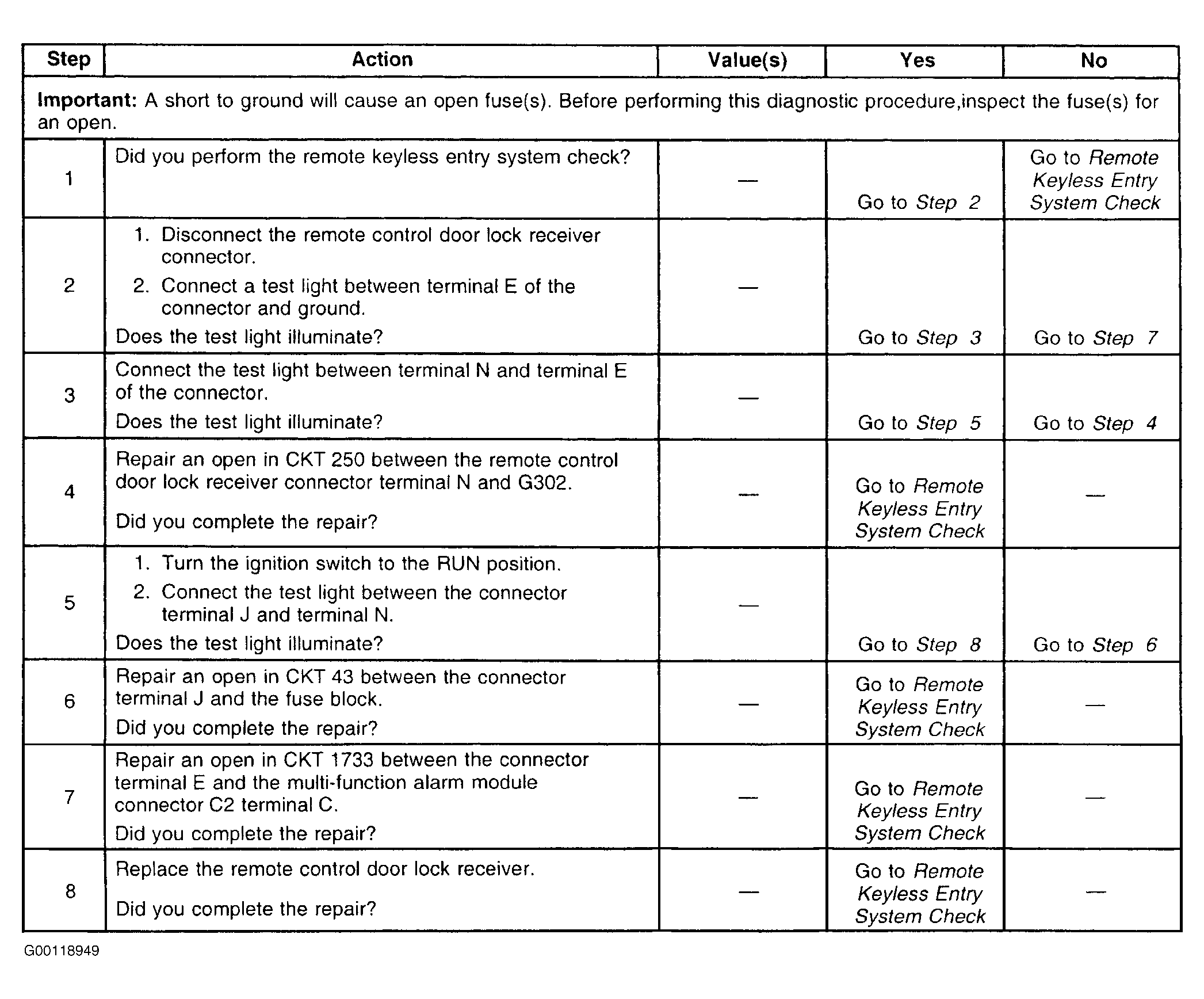

Fig 1: Test F: Remote Keyless Entry System Inoperative
G00118949Courtesy of GENERAL MOTORS CORP.
