Connector Identification

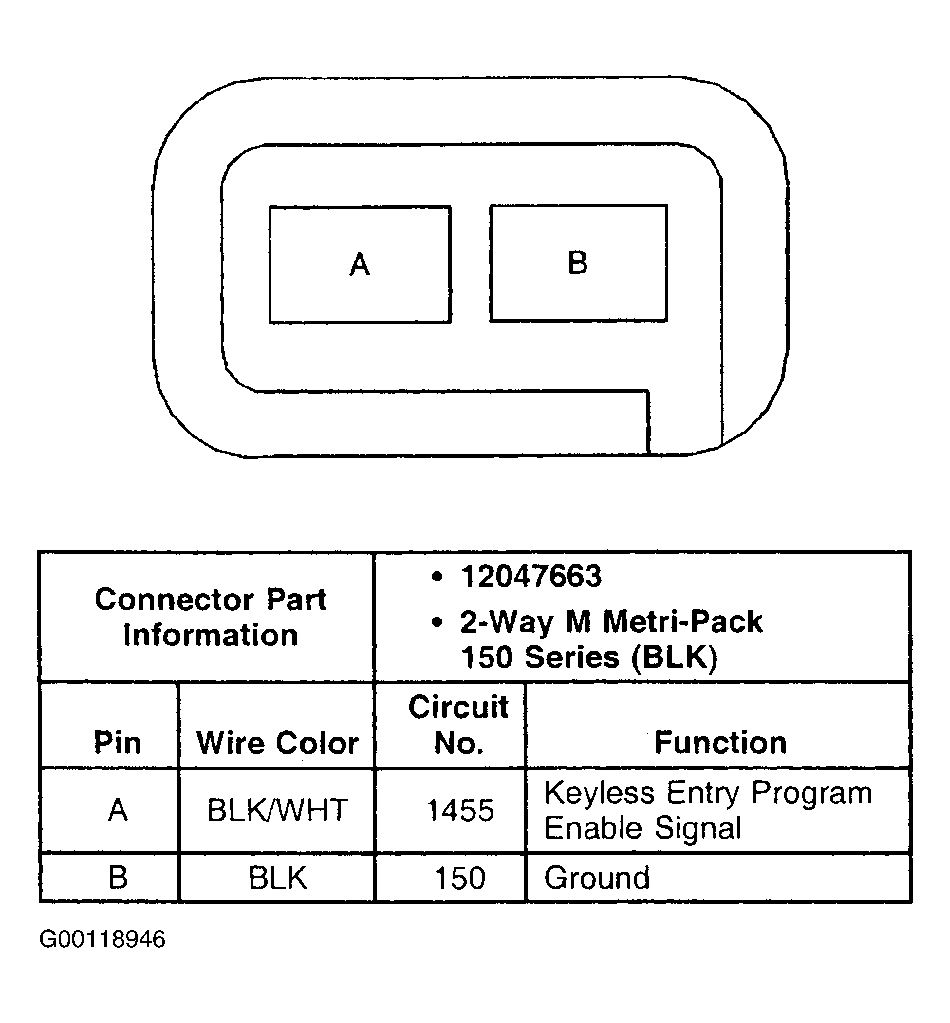

Fig 1: Identifying Program Connector Terminals
G00118946Courtesy of GENERAL MOTORS CORP.

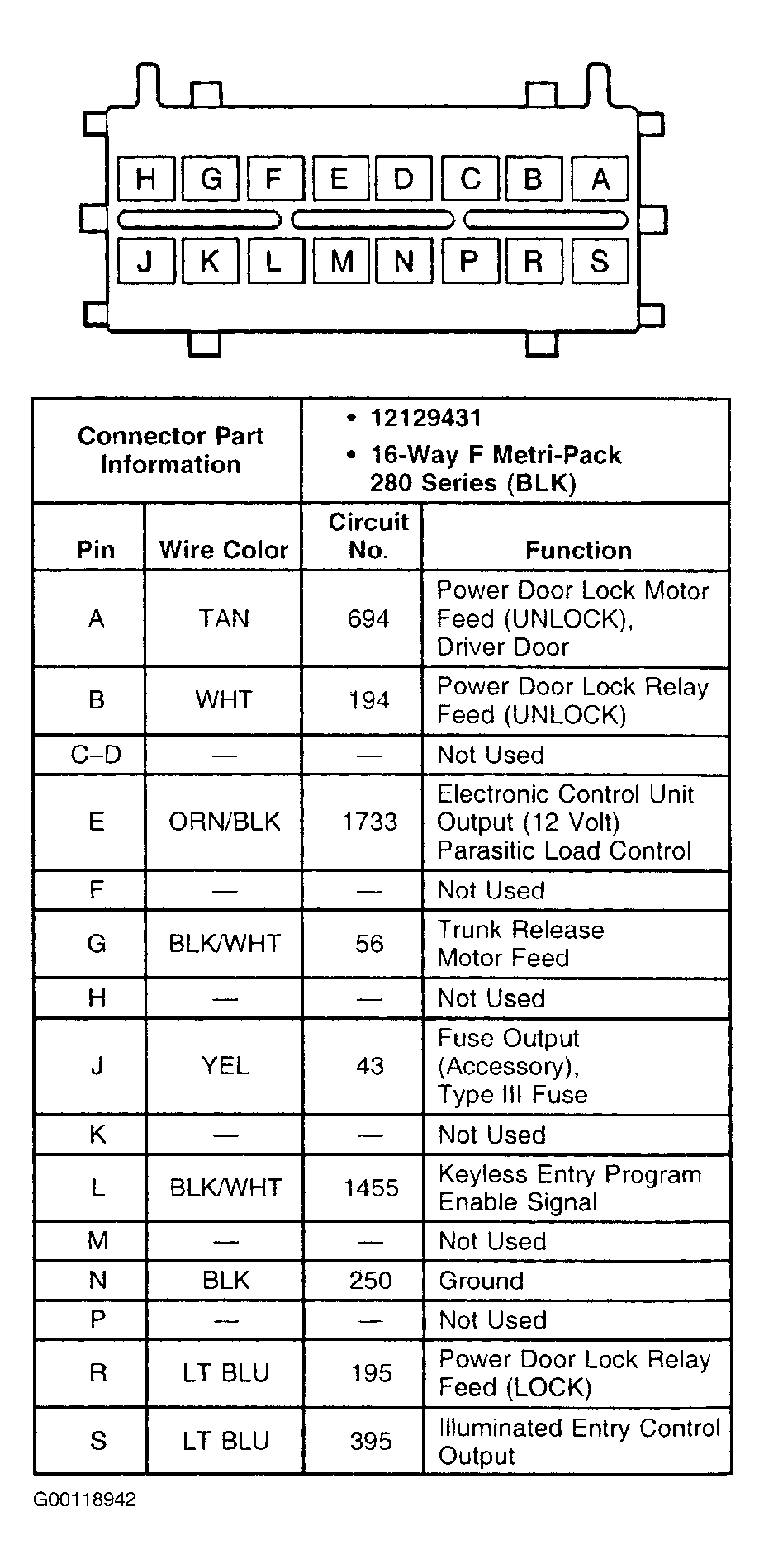

Fig 2: Identifying Remote Control Door Lock Receiver Connector Terminals
G00118942Courtesy of GENERAL MOTORS CORP.
