Test E: Rear Release Inoperative With Transmitter

For test procedure, refer to illustration. See Fig 1 .

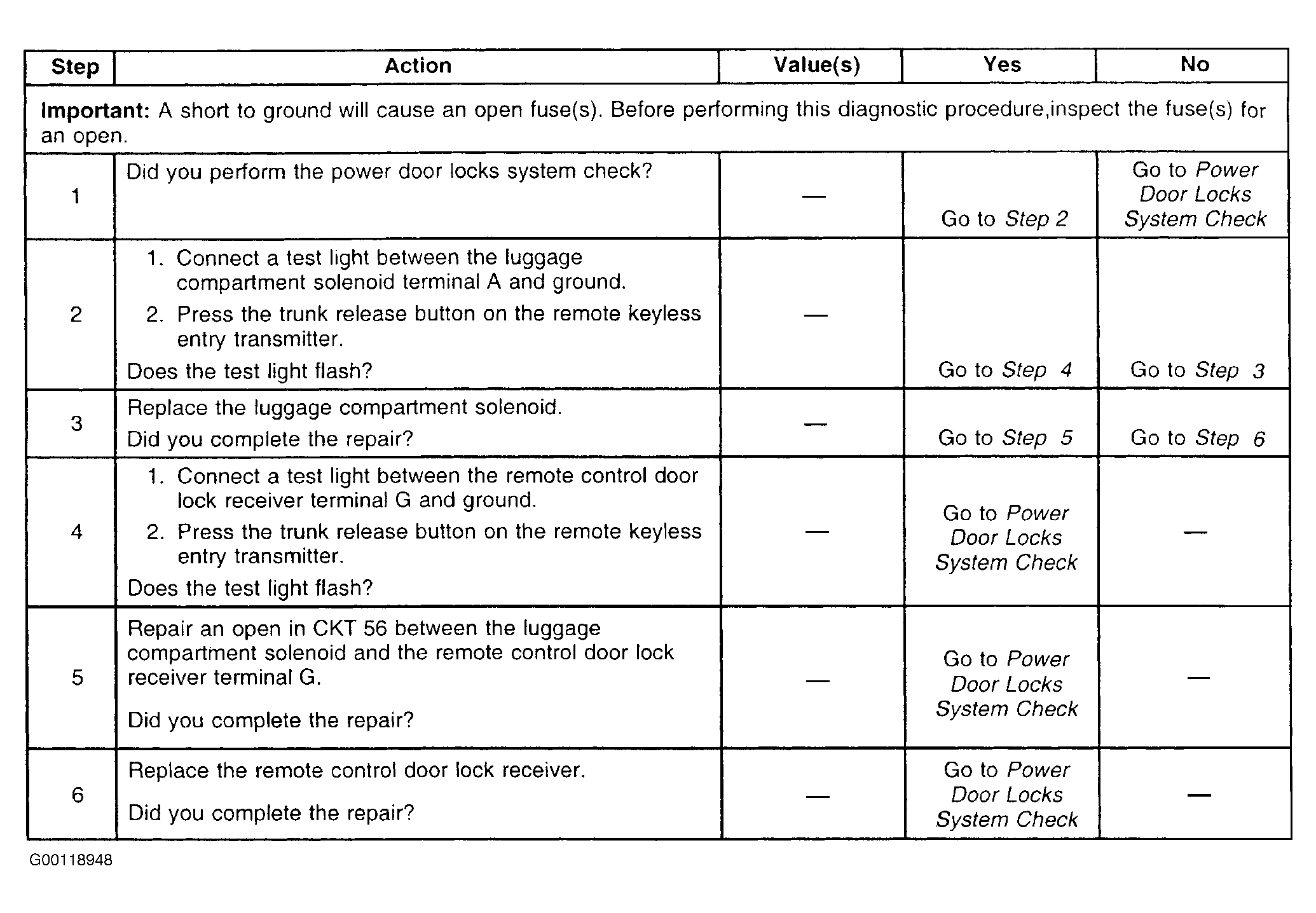

Fig 1: Test E: Rear Release Inoperative With Transmitter
G00118948Courtesy of GENERAL MOTORS CORP.
