Connector Identification

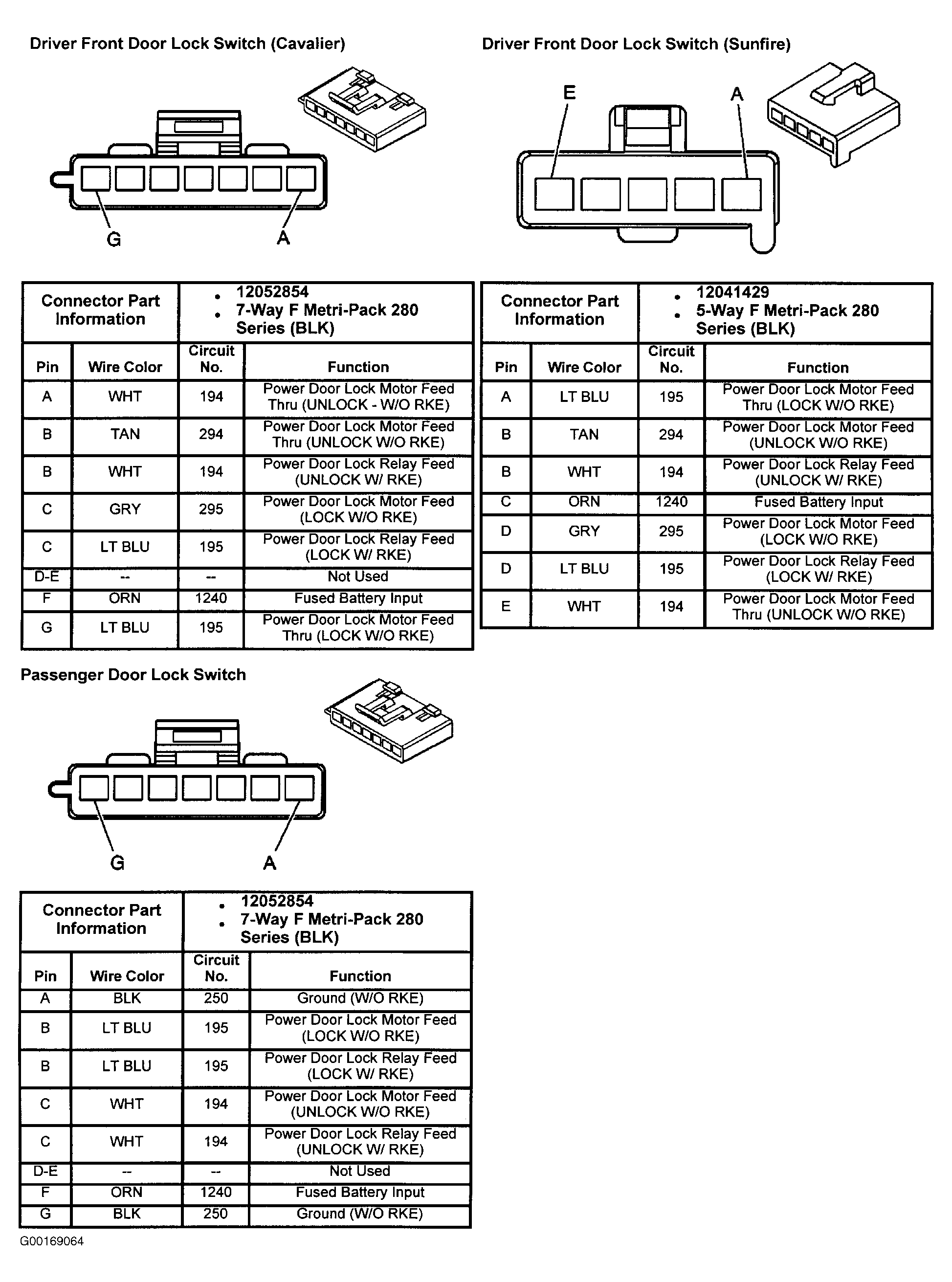

Fig 1: Identifying Power Door Lock Switch Terminals
G00169064Courtesy of GENERAL MOTORS CORP.

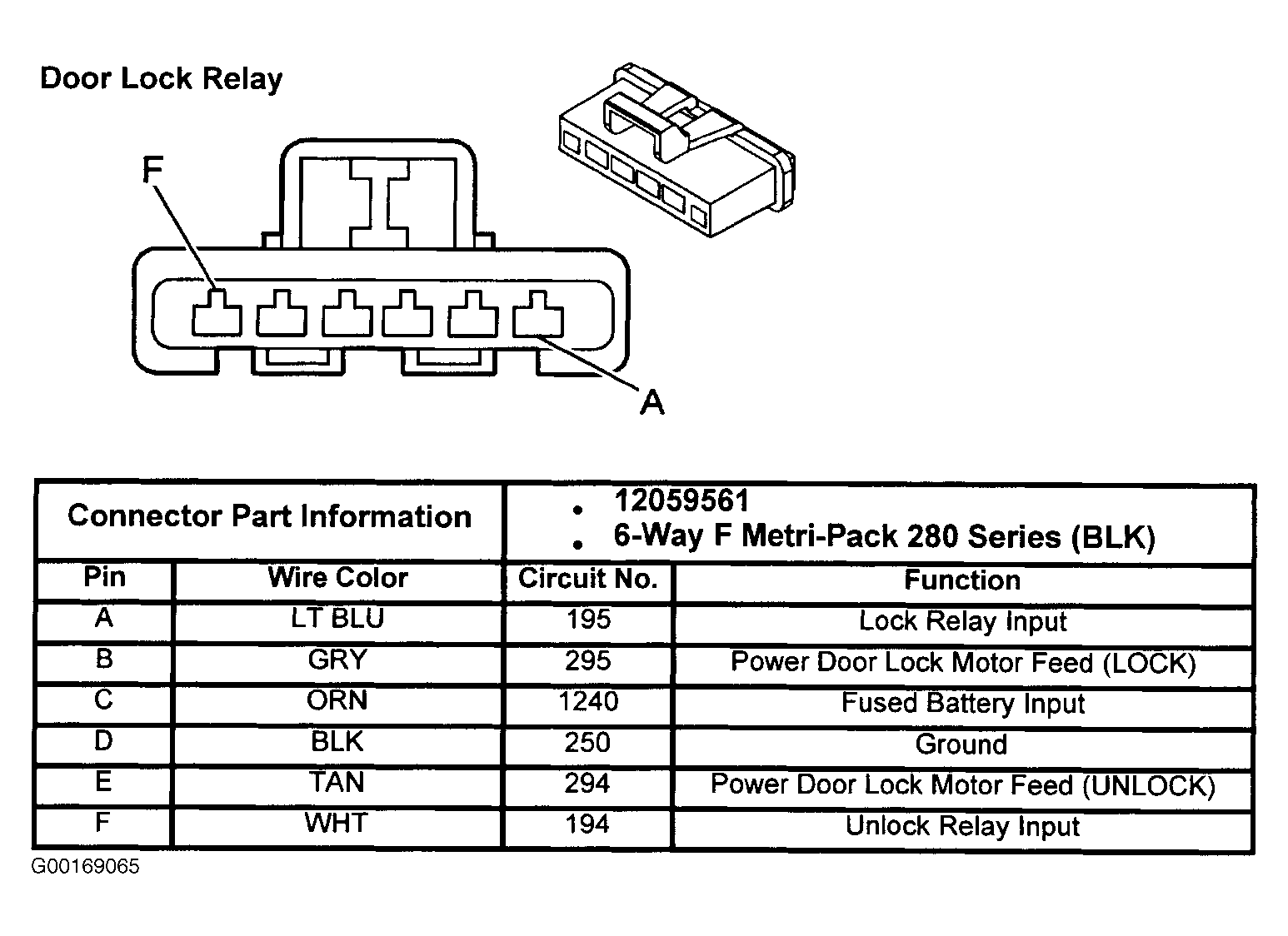

Fig 2: Identifying Door Lock Relay Terminals
G00169065Courtesy of GENERAL MOTORS CORP.

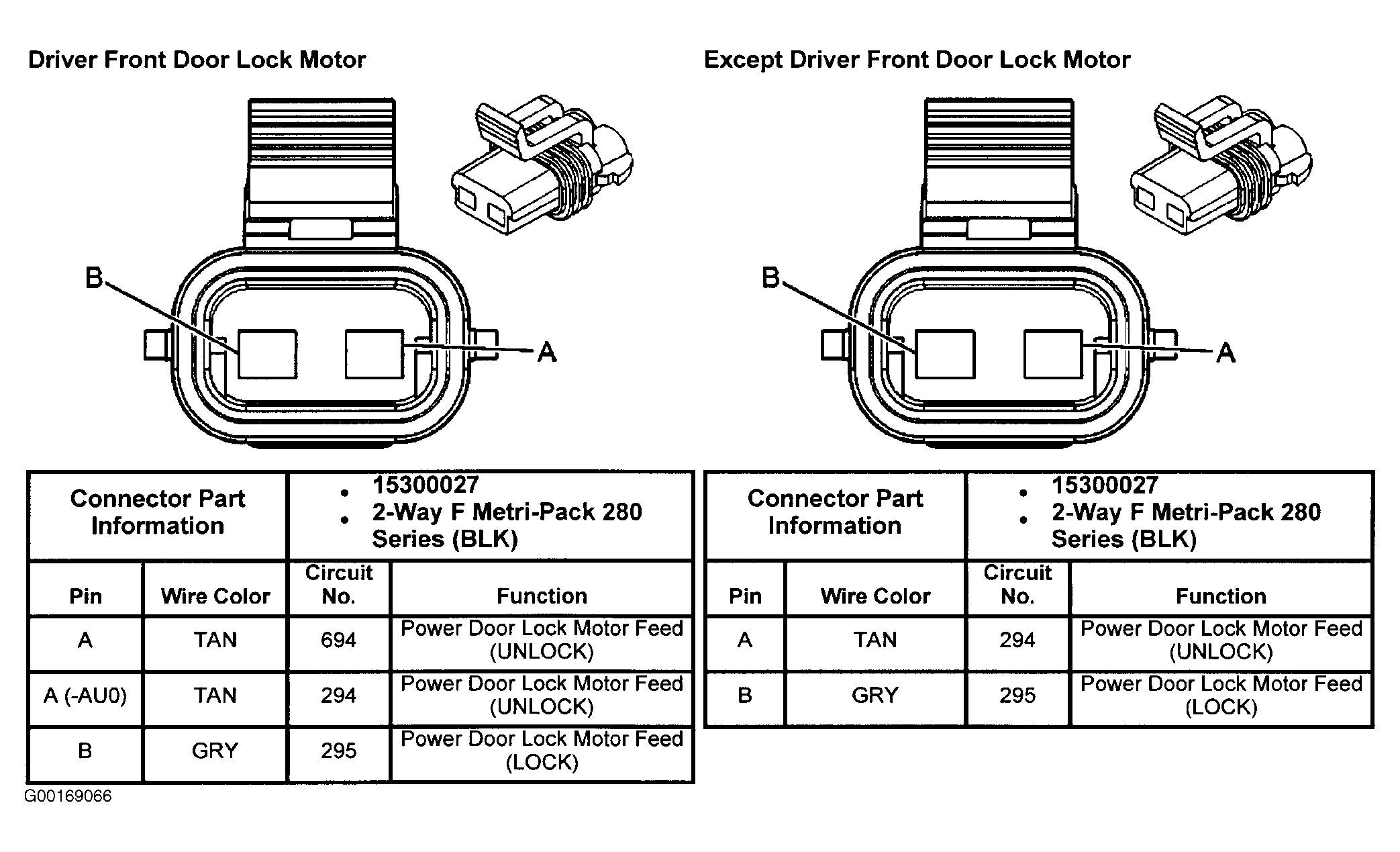

Fig 3: Identifying Door Lock Motor Terminals
G00169066Courtesy of GENERAL MOTORS CORP.
