Test C: Door Lock/Unlock Inoperative (Left Front)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1999 GMC Yukon, 1999 GMC Suburban, 1999 GMC Pickup, 1999 Chevrolet Tahoe, and 1999 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.

For test procedure, refer to illustrations. See Fig 1 and Fig 2 .

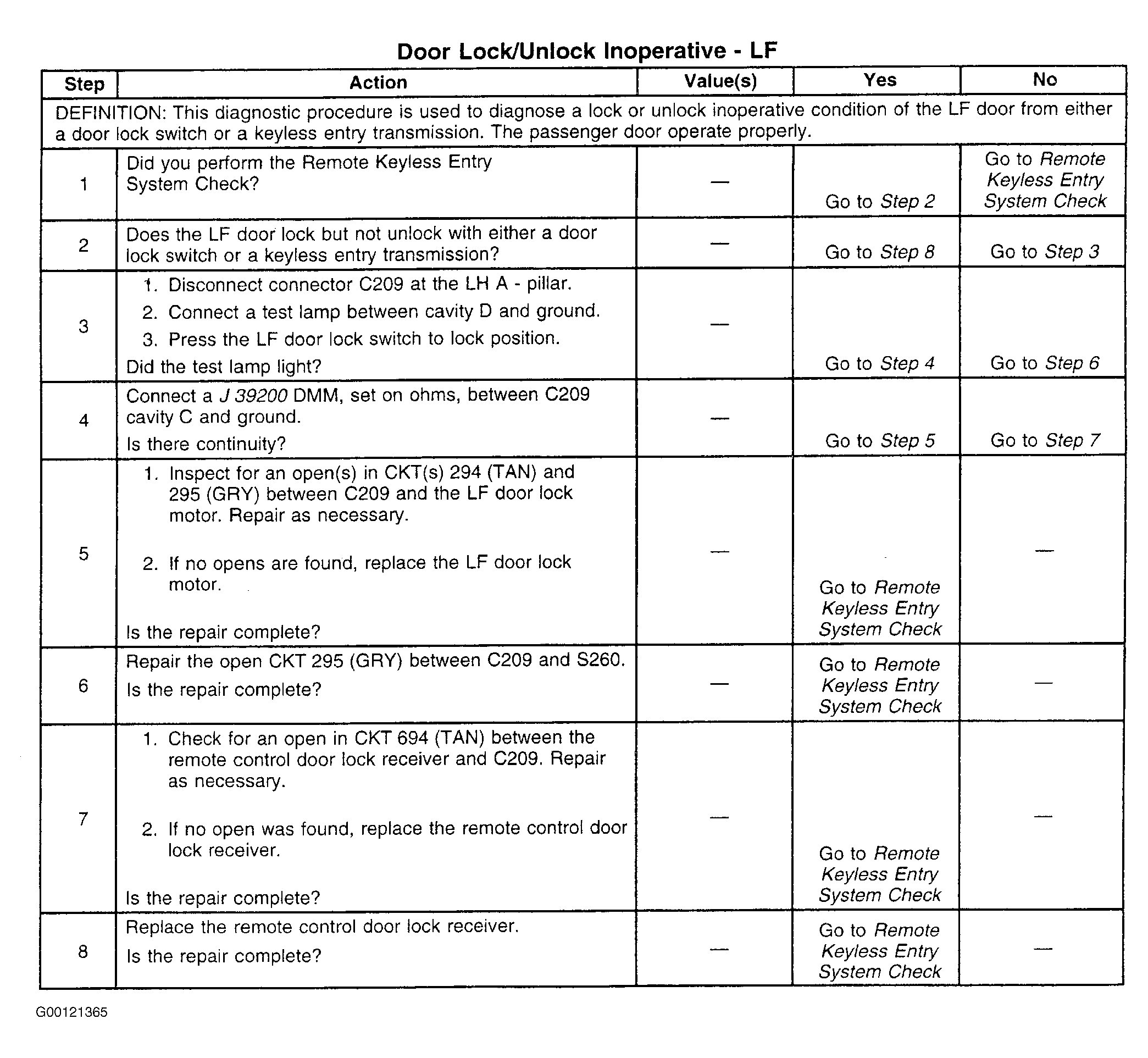

Fig 1: Test C: Door Lock/Unlock Inoperative (Left Front)

Courtesy of GENERAL MOTORS CORP.

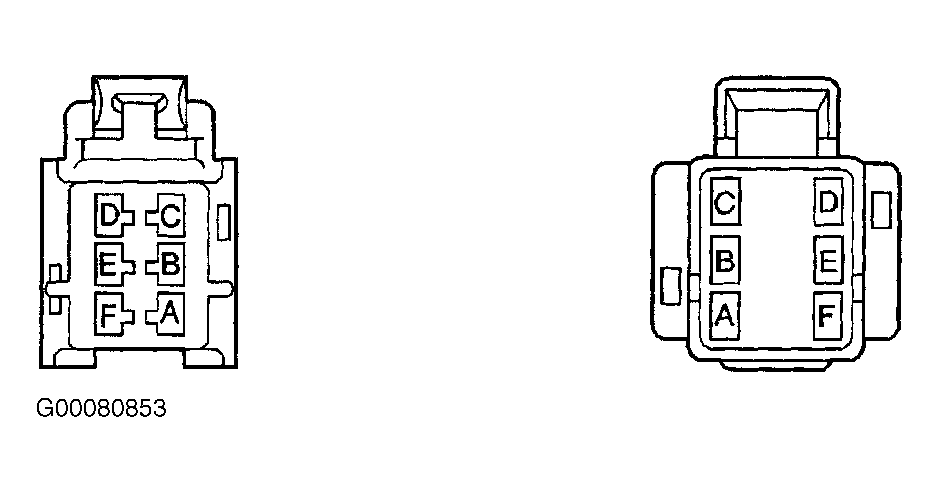

Fig 2: Identifying C209 In-Line Connector Terminals

Courtesy of GENERAL MOTORS CORP.
