Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

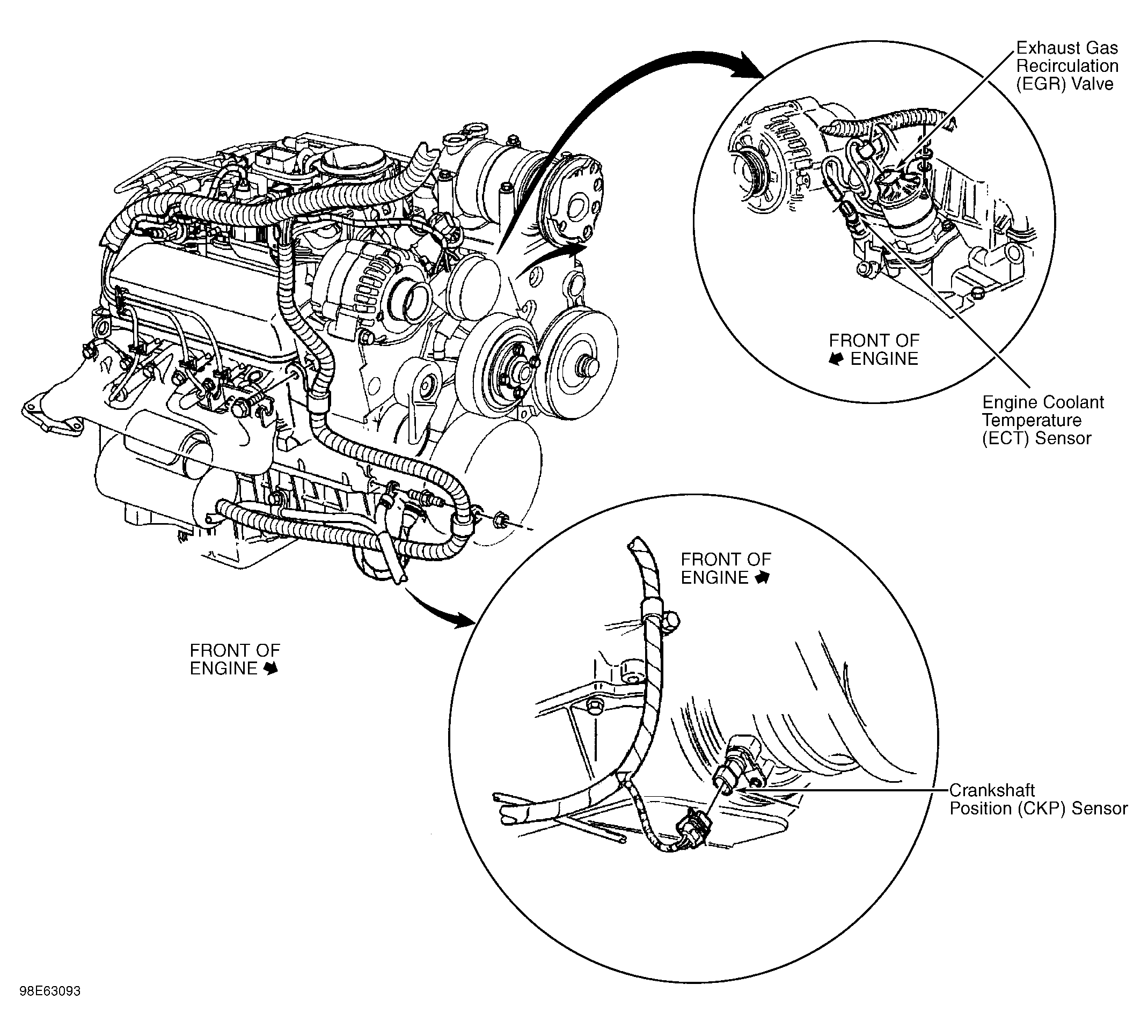

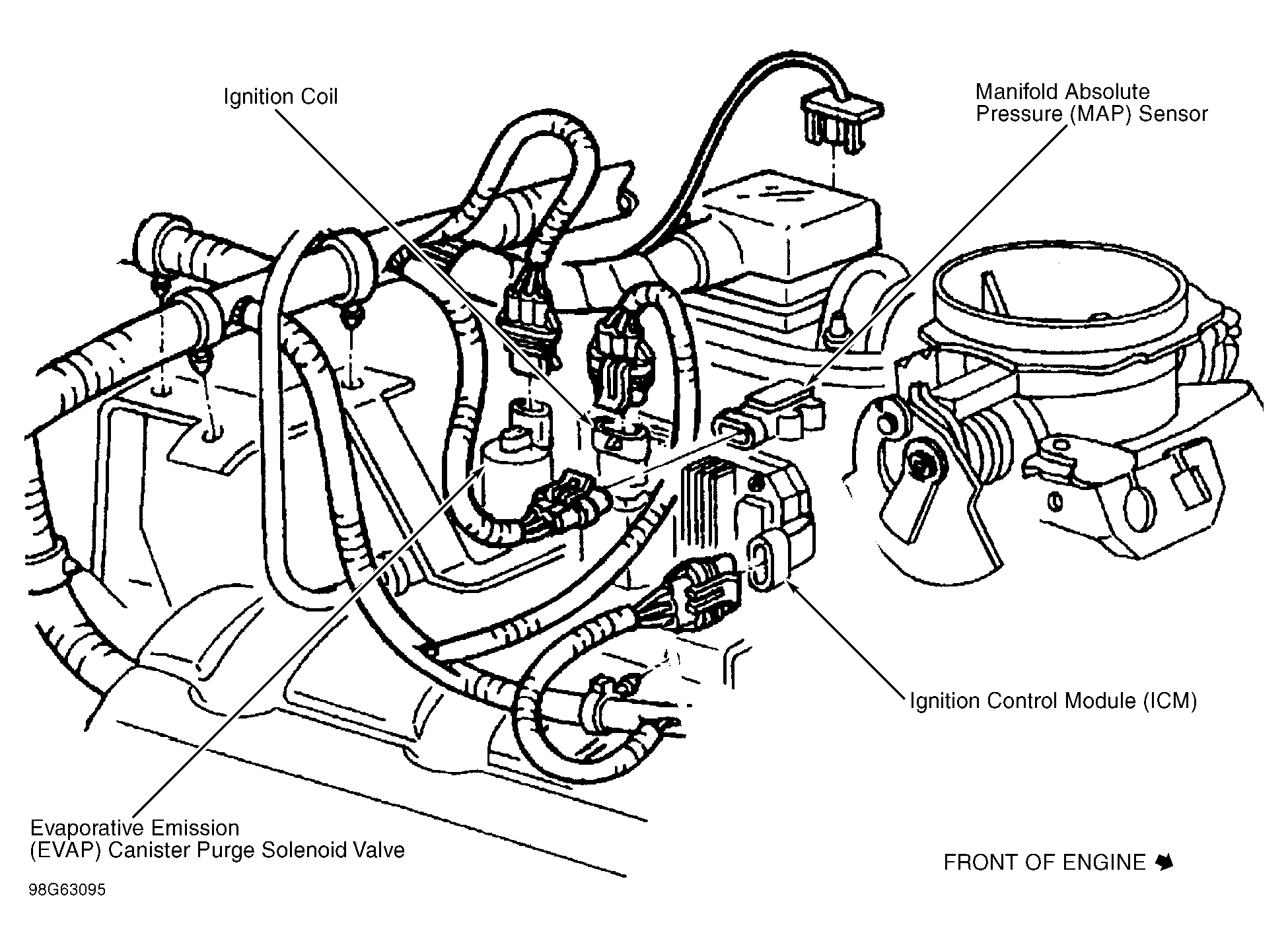

Fig 1: Right Front Side Of Engine

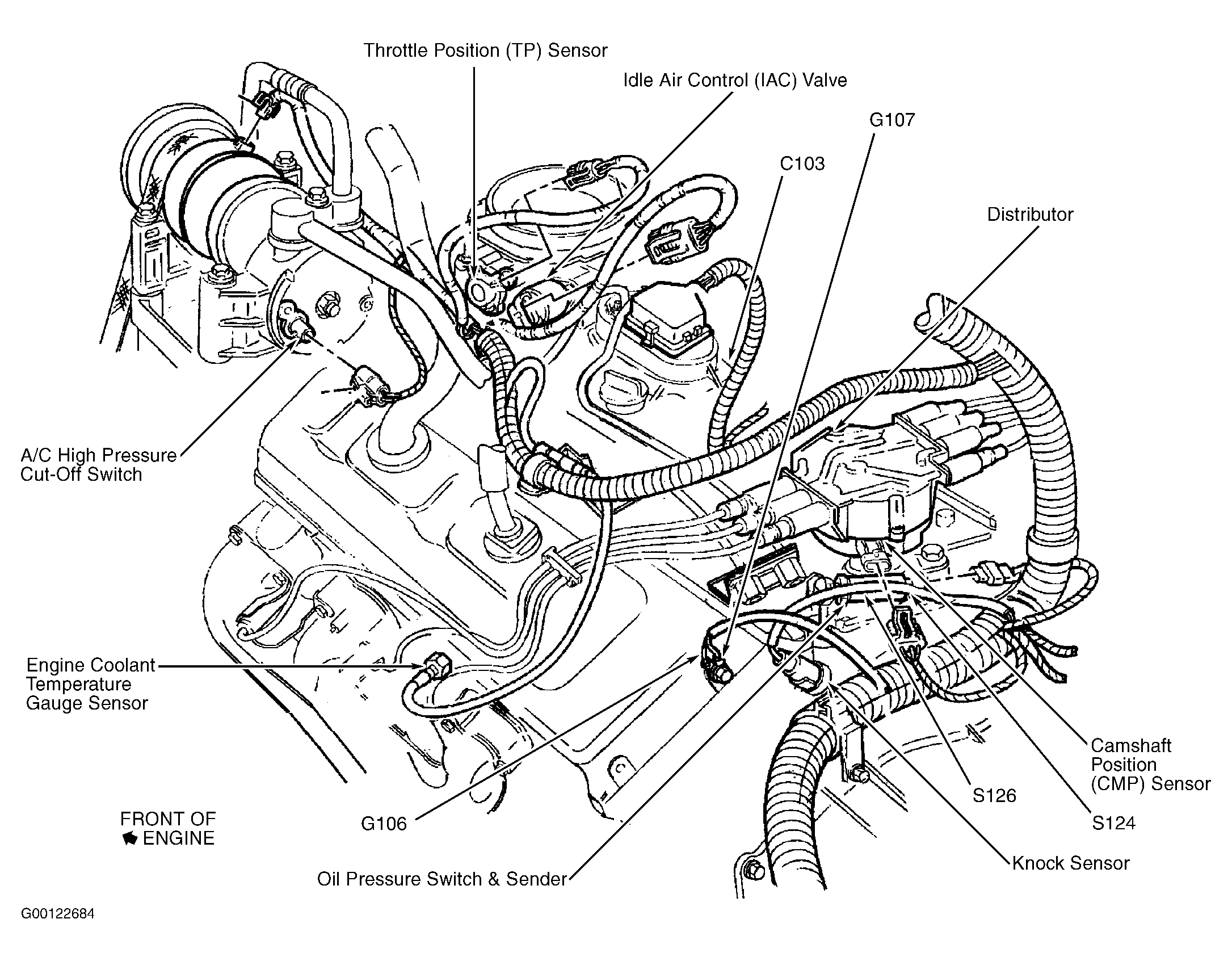

Fig 2: Top Of Engine

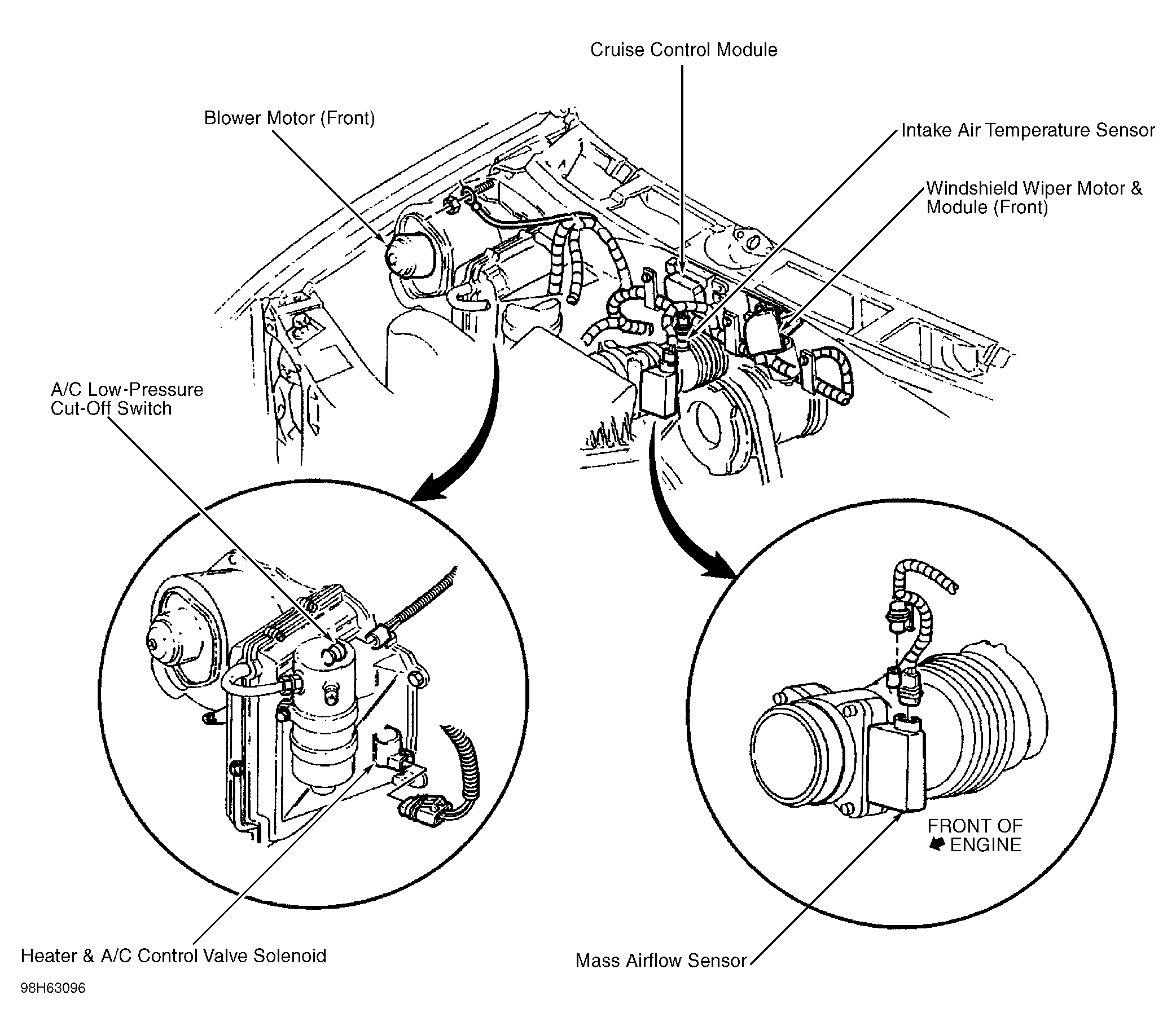

Fig 3: Top Rear Of Engine

Fig 4: Engine Compartment

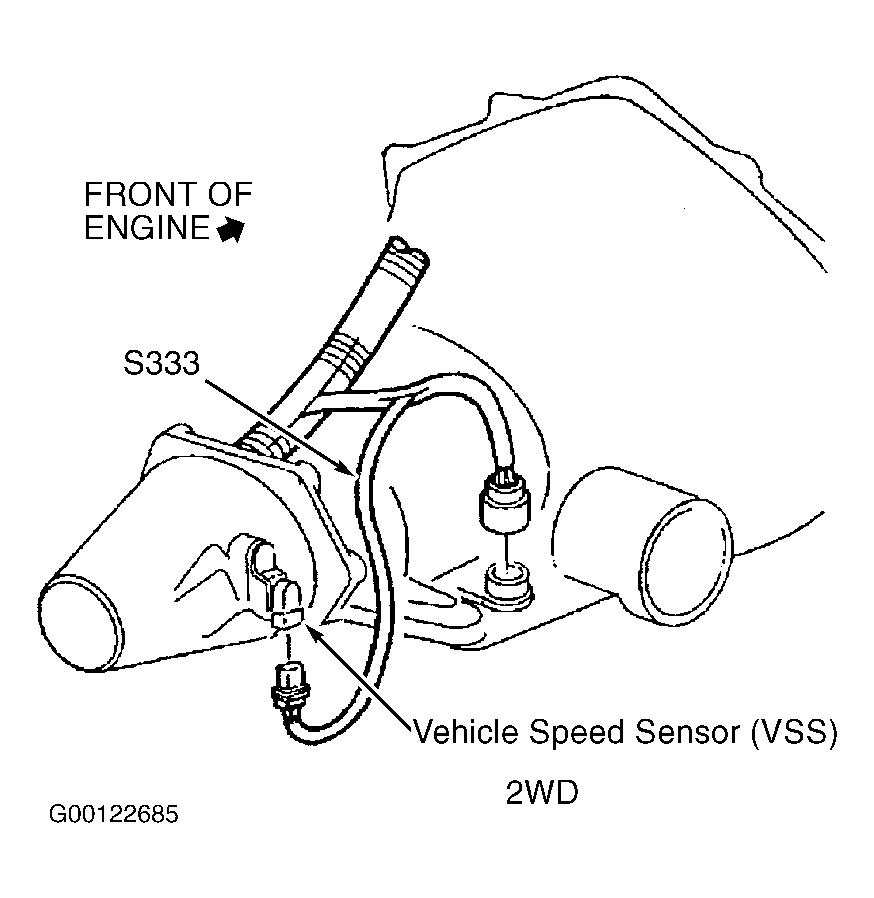

Fig 5: Right Side Of Transmission (2WD)

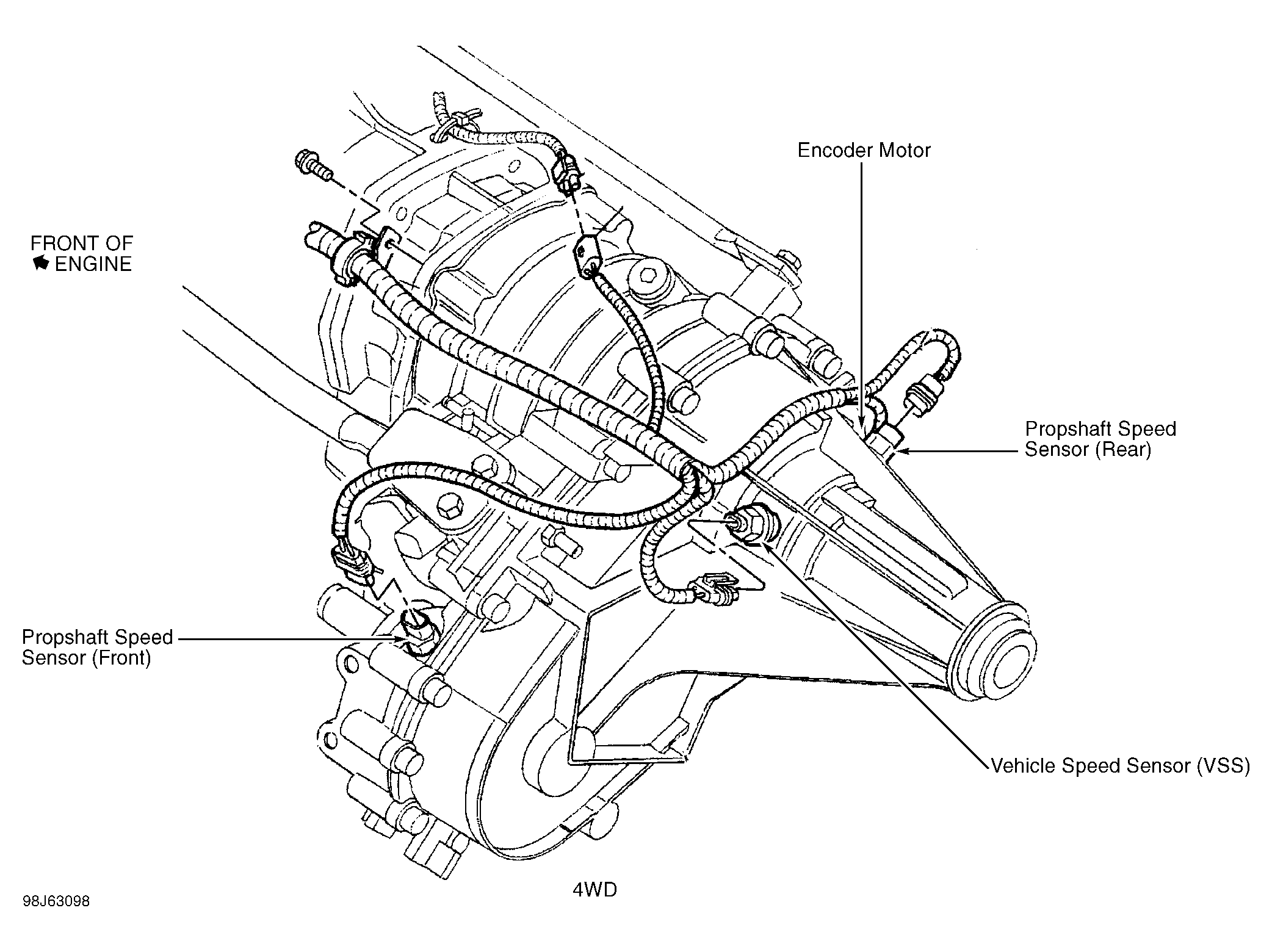

Fig 6: Transmission & Transfer Case (4WD)

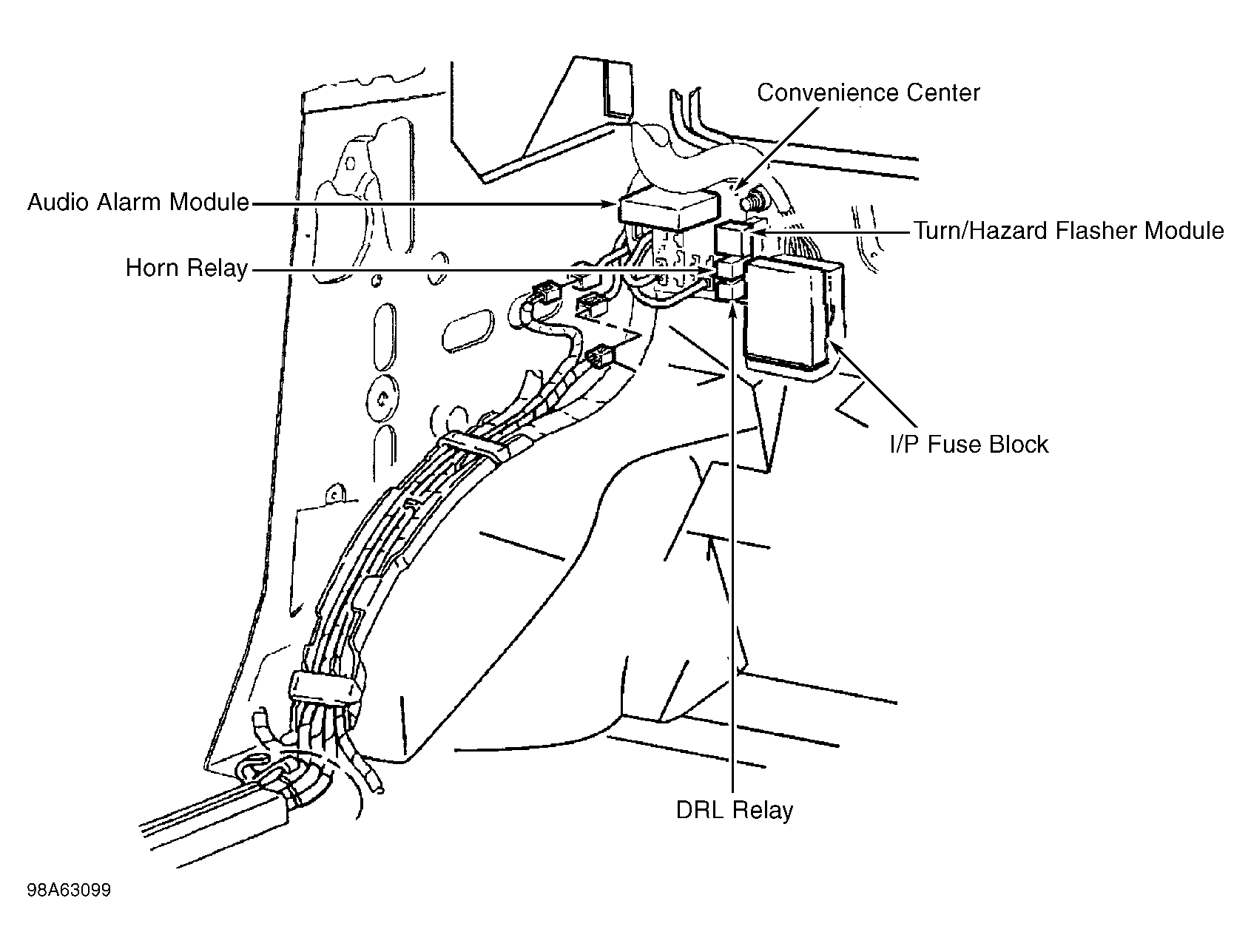

Fig 7: Left Side Of Dash

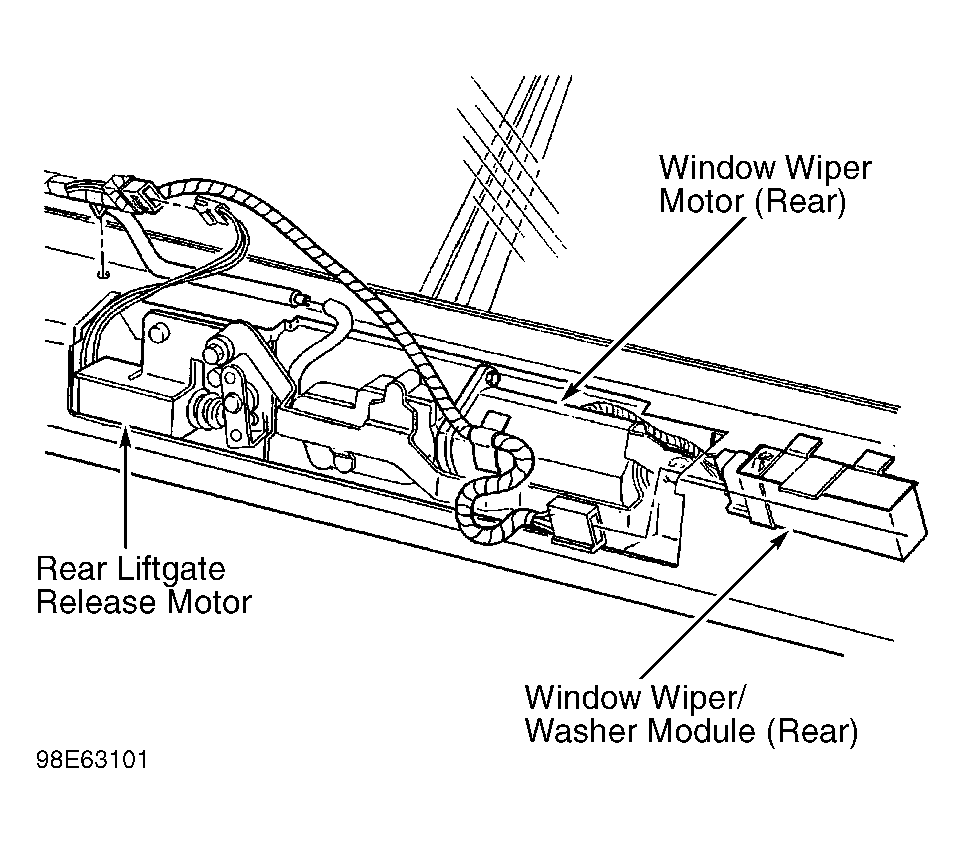

Fig 8: Center Of Liftgate

Fig 9: Left Side Of Vehicle
