Scan Tool Will Not Communicate With Components

For testing procedure, refer to flowchart. See Fig 1 .

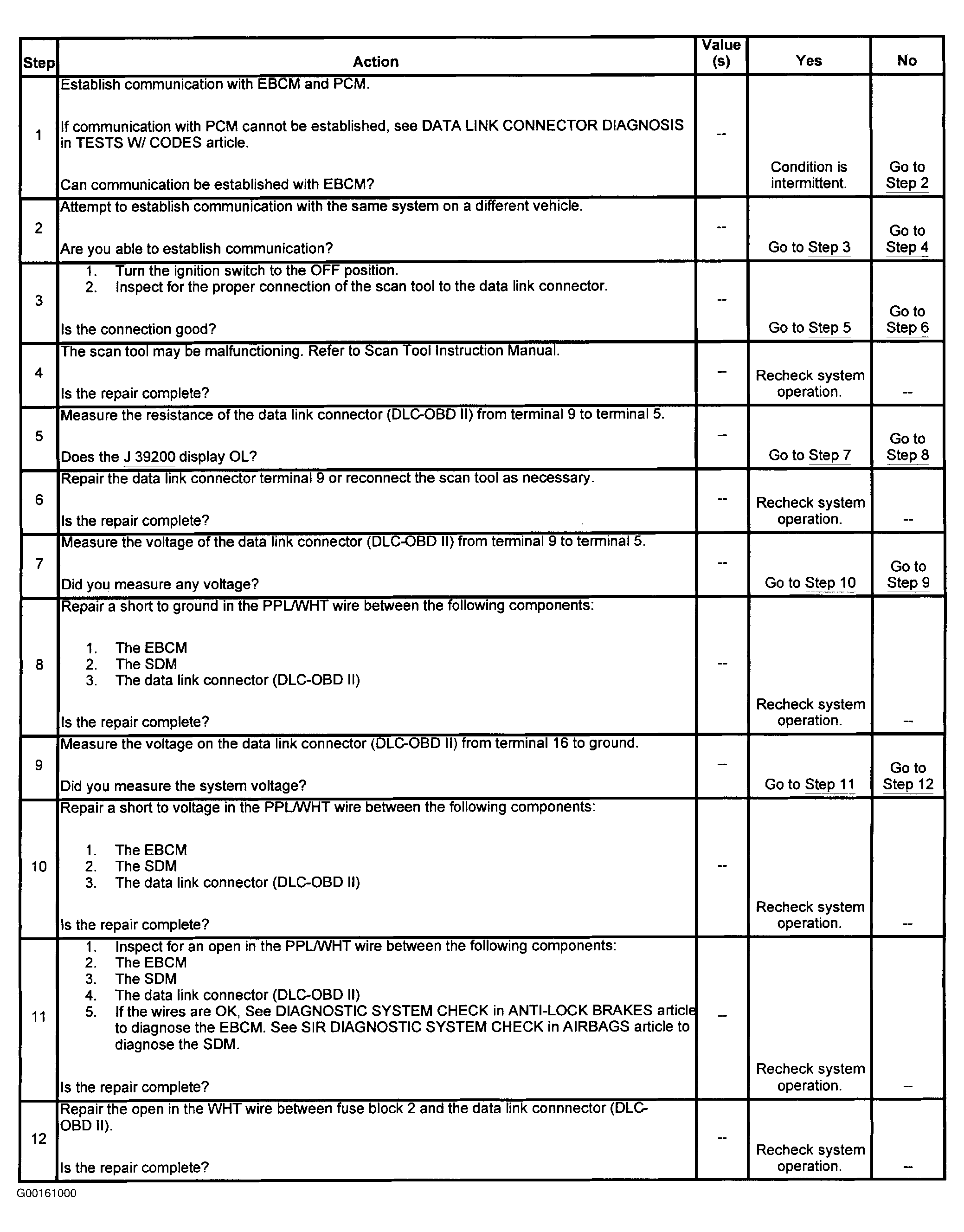

Fig 1: Scan Tool Will Not Communicate With Components Diagnostic Flowchart

Courtesy of GENERAL MOTORS CORP.
