Ride Height Specifications
NOTE:
Corvette ride height specification is not available from manufacturer.
On "C", "G", "H", and "J" body, maximum variation between side-to-side and front-to-rear should not exceed .75" (19 mm). On "N" body, maximum variation between side-to-side should not exceed 0.24" (6 mm). On all other models, maximum variation between side-to-side and front-to-rear should not exceed .47" (12 mm).

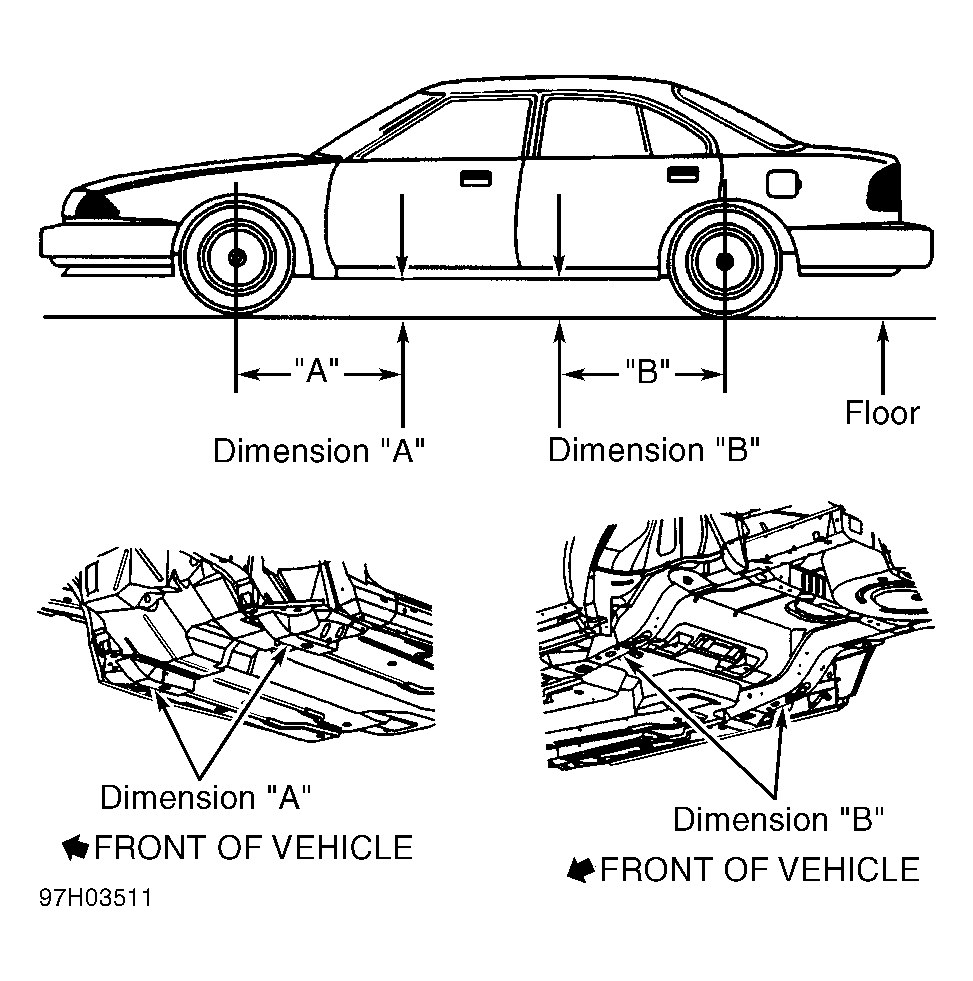

RIDE HEIGHT SPECIFICATIONS ("C" & "G" BODIES & SEVILLE)
| Application |
In. (mm) |
| Dimension "A" |
| "C" & "G" Body |
23.5 (597) |
| Seville |
23.62 (600) |
| Dimension "B" |
| "C" & "G" Body |
23.13 (588) |
| Seville |
23.22 (590) |
| Dimension "J" |
| "C" Body |
6.44 To 7.25 (164 To 184) |
| "G" Body |
6.69 To 7.5 (170 To 190) |
| Seville |
| Standard Suspension (KS) |
7.05 (179) |
| Touring Suspension (KY) |
6.65 (169) |
| Dimension "K" |
| "C" Body |
8.38 To 9.19 (213 To 233) |
| "G" Body |
8.63 To 9.41 (219 To 239) |
| Seville |
| Standard Suspension (KS) |
9.02 (229) |
| Touring Suspension (KY) |
8.58 (218) |

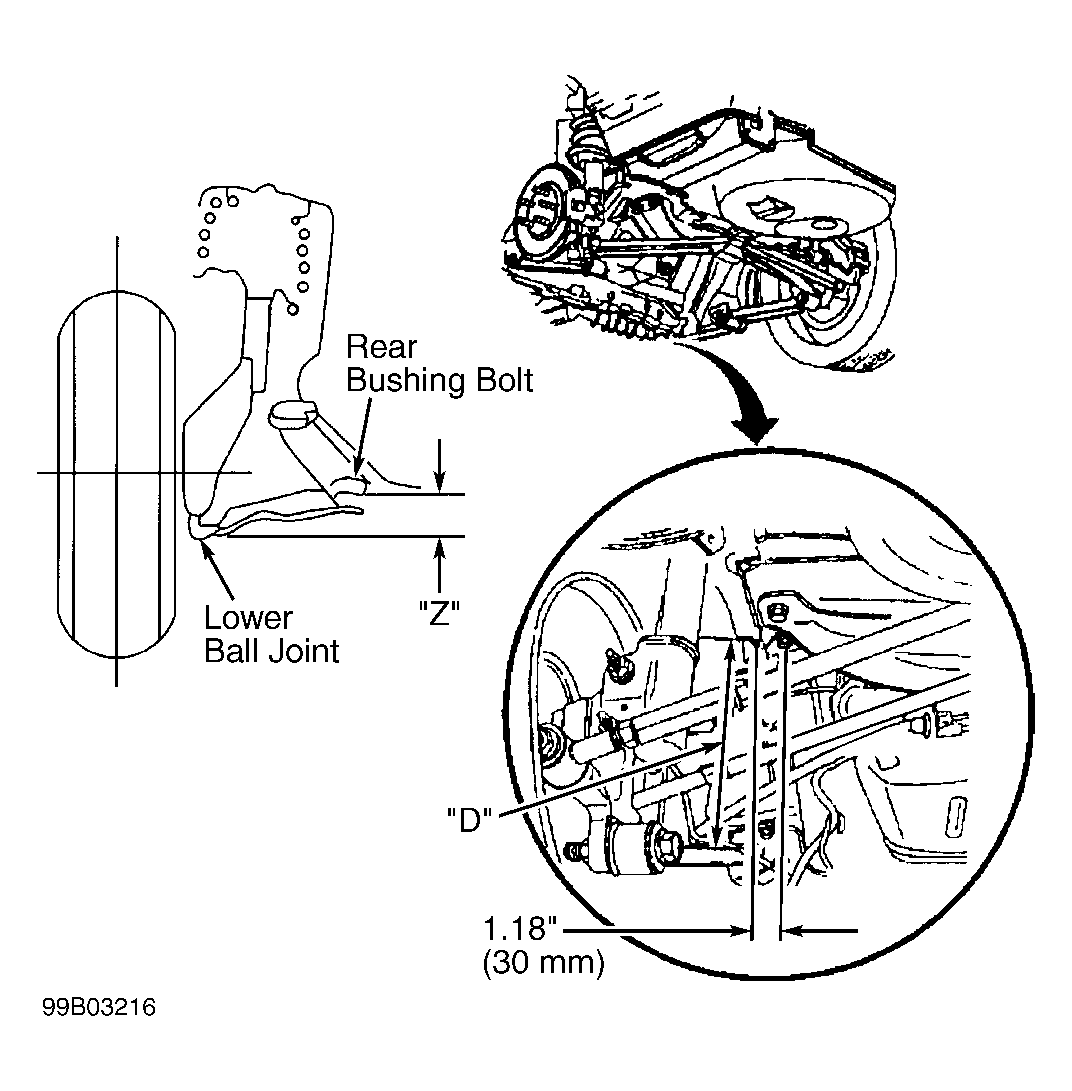

| Dimension "Z" |
| "C" & "G" Bodies |
1.19 To 2.0 (30 To 50) |
| |
Seville |
| Standard Suspension (KS) |
1.57 (39.88) |
| Touring Suspension (KY) |
1.18 (29.97) |
| Dimension "D" |
| "C" & "G" Bodies |
3.0 To 3.75 (79 To 96) |
| |
Seville |
| Standard Suspension (KS) |
3.39 (86) |
| Touring Suspension (KY) |
2.99 (76) |
RIDE HEIGHT SPECIFICATIONS ("E" & "K" BODIES - EXCEPT SEVILLE)
| Application |
In. (mm) |
| Concours, DeVille & Eldorado |
| Dimension "A" |
22.84 (580) |
| Dimension "B" |
22.17 (563) |
| Dimension "J" |
| Concours |
6.77 To 7.57 (172 To 192) |
| DeVille |
7.16 To 7.96 (182 To 202) |
| Eldorado |
8.26 To 9.06 (210 To 230) |
| Dimension "K" |
| Concours |
7.96 To 7.16 (162 To 182) |
| DeVille |
8.35 To 7.55 (172 To 192) |
| Eldorado |
8.03 To 8.83 (204 To 224) |
| Dimension "E" |
| Concours |
27.04 To 27.84 (687 To 707) |
| DeVille |
27.43 To 28.23 (697 To 717) |
| Eldorado |
27.75 To 28.55 (705 To 725) |
| Dimension "F" |
| Concours |
17.79 To 18.59 (452 To 472) |
| DeVille |
20.98 To 21.78 (533 To 553) |
| Eldorado |
27.51 To 28.31 (699 To 719) |
| Dimension "Z" |
| Concours |
1.25 To 2.05 (32 to 52) |
| DeVille |
1.61 To 2.41 (41 To 61) |
| Eldorado |
1.57 To 2.37 (40 To 60) |
| Dimension "D" |
| Concours |
0.7 To 1.5 (28 To 38) |
| DeVille |
1.06 To 1.86 (27 To 47) |
| Eldorado |
0.74 To 1.54 (19 To 39) |

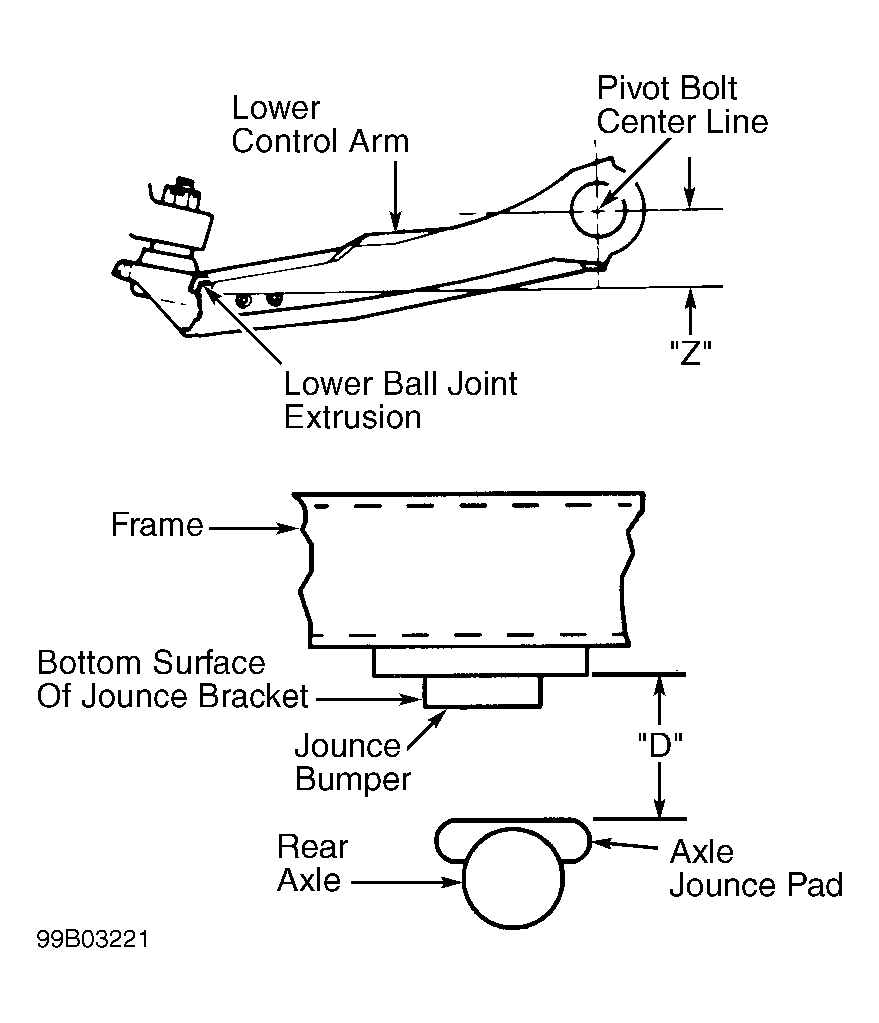

RIDE HEIGHT SPECIFICATIONS (1998 "F" BODY)
| Application |
In. (mm) |
| 1998 Camaro & Firebird |
| Dimension "A" |
16.5 (420) |
| Dimension "B" |
14.4 (367) |
| Dimension "J" |
7.6 To 8.4 (194 To 214) |
| Dimension "K" |
8.0 To 8.8 (204 To 212) |
| Dimension "D" |
4.2 To 5.0 (108 To 128) |
| Dimension "Z" |
| With 235-55 Tires |
0.8 To 1.6 (20 To 40) |
| With 245-50 Tires |
1.1 To 1.9 (27 To 47) |
RIDE HEIGHT SPECIFICATIONS (1999 "F" BODY)
| Application |
In. (mm) |
| 1999 Camaro & Firebird |
| Dimension "1" (Side Rocker Panel) |
8.0 (203) |
| Dimension "2" (Side Rocker Panel) |
8.2 (208) |
| Dimension "3" (Front Fascia) |
| Camaro |
17.0 To 17.8 (432 To 452) |
| Firebird Except Trans Am With 235/55 Tires |
13.0 To 13.8 (330 To 351) |
| Trans Am With 235/55 Tires |
15.9 To 16.7 (404 To 424) |
| Dimension "4" (Rear Fascia) |
| Camaro |
14.0 To 14.8 (356 To 376) |
| Firebird |
14.3 To 15.1 (363 To 384) |
RIDE HEIGHT SPECIFICATIONS ("H" BODY)
| Application |
In. (mm) |
| Bonneville, Eighty Eight, LeSabre, LSS & Regency |
| Dimension "A" |
23.5 (597) |
| Dimension "B" |
23.5 (597) |
| Dimension "J" |
9.0 To 9.8 (229 To 249) |
| Dimension "K" |
9.3 To 10.1 (236 To 256) |
| Dimension "D" |
2.69 To 3.44 (68 To 88) |
| Dimension "Z" |
1.94 To 2.75 (50 To 70) |

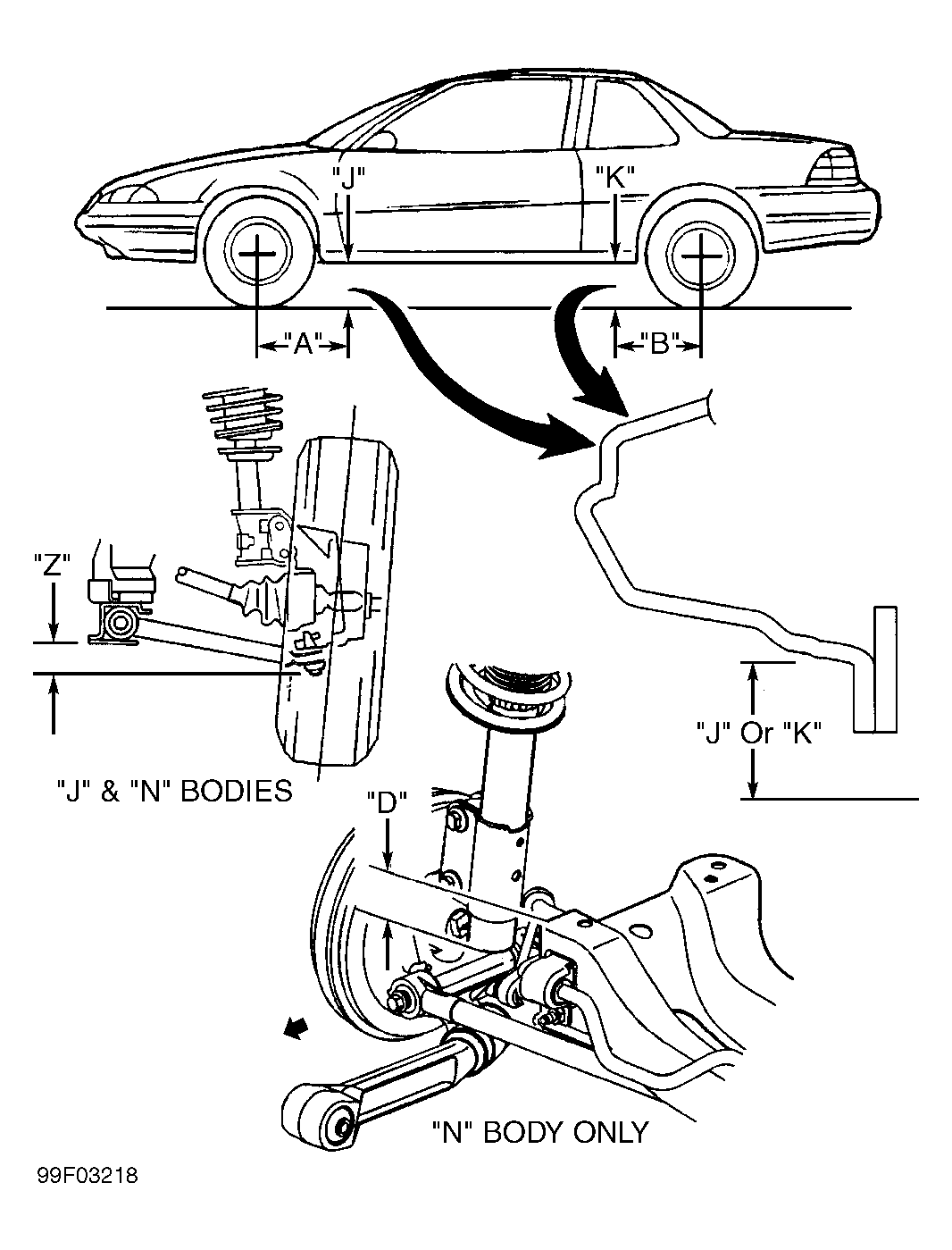

RIDE HEIGHT SPECIFICATIONS ("J" BODY)
| Application |
In. (mm) |
| 1998 Cavalier & Sunfire |
| Dimension "A" |
| Cavalier |
31.5 (800) |
| Sunfire |
32.16 (817) |
| Dimension "B" |
22.05 (560) |
| Dimension "J" |
8.77 To 957 (223 To 243) |
| Dimension "K" |
9.05 To 9.85 (230 To 250) |
| Dimension "Z" |
| With 14" Tires |
-0.07 To 0.87 (2 To 22) |
| With 15" Tires |
-0.15 To 0.65 (-4 To 16) |
| With 16" Tires |
-0.24 To 0.56 (-6 To 14) |
| 1999 Cavalier & Sunfire |
| Dimensions "A" & "B" |
|
| Dimension "J" |
8.77 To 9.57 (223 To 243) |
| Dimension "K" |
| Except Convertible |
9.04 To 9.84 (230 To 250) |
| Convertible |
9.24 To 10.04 (235 To 255) |
| Dimension "Z" |
| With 14" Tires |
-0.24 To 0.56 (-6 To 14) |
| With 15" Tires |
| Cavalier 2.2L 4-Door |
-0.4 To 0.4 (-10 To 10) |
| Cavalier 2.4L 2-Door , Sunfire 2.2L 4-Door & 2.4L 2-Door |
-0.32 To 0.48 (-8 To 18) |
| Cavalier 2.4L 4-Door , Sunfire 2.4L 2 & 4-Door |
-0.35 To 0.45 (-9 To 11) |
| Convertible 2.2L |
-0.2 To 0.6 (-5 To 15) |
| Convertible 2.4L |
-0.12 To 0.68 (-3 To 17) |
RIDE HEIGHT SPECIFICATIONS (METRO & FIREFLY (CANADIAN))
| Application |
In. (mm) |
| Metro & Firefly (Canadian) |
| Dimension "A" |
17.75 (450) |
| Dimension "B" |
17.75 (450) |
| Dimension "J" |
8.45 To 9.25 (215 To 235) |
| Dimension "K" |
7.85 To 8.65 (200 To 220) |
| Dimension "Z" |
1.35 To 2.10 (35 To 55) |
RIGHT HEIGHT SPECIFICATIONS ("N" BODY)
| Application |
In. (mm) |
| 1998 Achieva, Grand Am & Skylark |
| Dimension "A" |
31.5 (800) |
| Dimension "B" |
21.4 (560) |
| Dimension "J" |
8.99 To 9.75 (228 To 248) |
| Dimension "K" |
9.19 To 9.95 (233 To 253) |
| Dimension "D" |
|
| Dimension "Z" |
| 14" Wheels |
| Achieva, Grand Am & Skylark |
0.19 To 0.94 (4.83 To 23.88) |
| 15" Wheels |
| Achieva |
-.063 To .69 (-1.6 To 17.53) |
| Grand Am & Skylark |
-0.03 To 0.72 (-3.56 To 18.26 |
| 16" Wheels |
| Achieva & Grand Am |
-0.14 To 0.61 (-3.56 To 15.5) |
| Skylark |
-0.09 To 0.66 (-2.29 To 16.8) |
| 1998-99 Cutlass & Malibu, 1999 Alero & Grand Am |
| Dimension "A" |
|
| Dimension "B" |
|
| Dimension "J" |
8.96 To 971 (227 To 247) |
| Dimension "K" |
9.23 To 9.99 (234 TO 254) |
| Dimension "D" |
| 15" Wheels (Except Grand Am 4-Door) |
4.47 To 5.22 (113 To 133) |
| 15" Wheels Grand Am 4-Door |
4.38 To 5.13 (110 To 130) |
| 16" Wheels |
4.40 To 5.15 (111 To 131) |
| Dimension "Z" |
| 15" Wheels (Except Grand Am 4-Door) |
-0.38 To 0.38 (-10 To 10) |
| 15" Wheels Grand Am 4-Door |
-0.15 To 0.61 (-16 To 4) |
| 16" Wheels |
-0.18 To 0.58 (-15 To 5) |

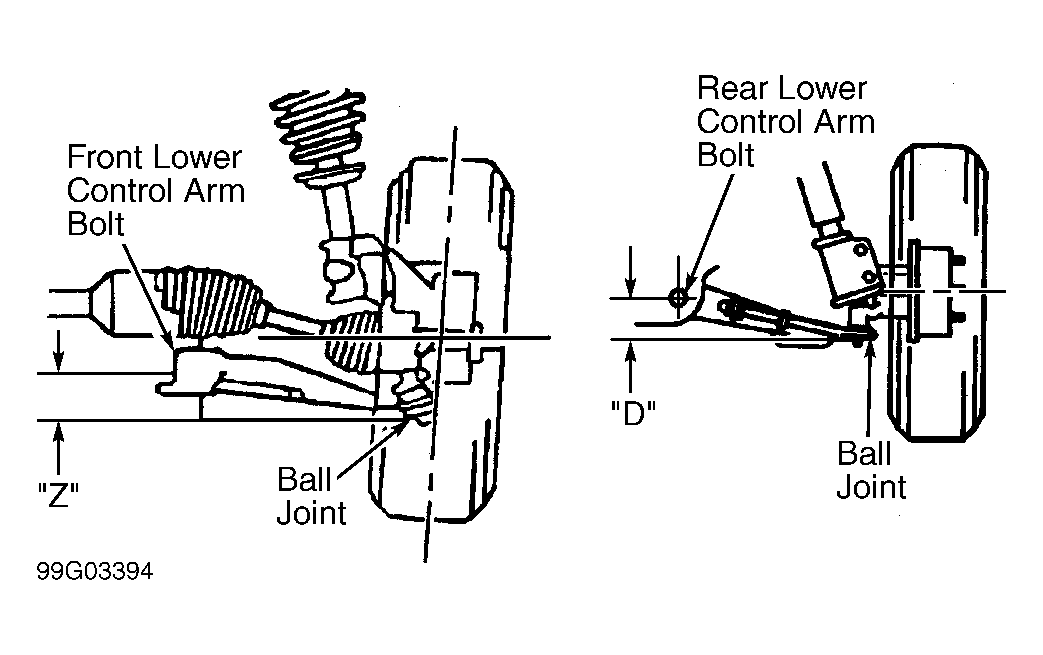

RIDE HEIGHT SPECIFICATIONS (1999 PRIZM )
| Application |
In. (mm) |
| Dimension "Z" |
| With P175/64R14 Tires |
6.88 To 7.68 (175 To 195) |
| With P185/64R14 Tires |
7.08 To 7.88 (180 To 200) |
| Dimension "D" |
| With P175/64R14 Tires |
9.25 To 10.05 (235 To 255) |
| With P185/64R14 Tires |
9.44 To 10.24 (240 To 260) |
RIDE HEIGHT SPECIFICATIONS ("V" BODY)
| Application |
In. (mm) |
| Catera |
| Dimension "P" |
27.3 (693) |
| Dimension "J" |
6.9 (175) |
| Dimension "K" |
6.5 (165) |
| Dimension "R" |
27.3 (693) |
RIDE HEIGHT SPECIFICATIONS ("W" BODY)
| Application |
In. (mm) |
| 1998 Lumina & Monte Carlo |
| Dimension "A" |
23.8 (605) |
| Dimension "B" |
20.7 (526) |
| Dimension "J" |
9.6 To 10.4 (244 To 264) |
| Dimension "K" |
9.8 To 10.06 (249 TO 269) |
| Dimension "Z" |
| Lumina & Monte Carlo , 205/70R15 Tires; Lumina Police & Taxi , 215/65R15 Tires |
2.56 To 3.36 (65 To 85) |
| Lumina LS & Police , 205/70R15 Tires |
2.6 To 3.4 (66 To 86) |
| Lumina LS , 225/60R16 |
2.36 To 3.16 (60 To 80) |
| Lumina , Lumina LS, , 225/60R16 Tires; Monte Carlo Z34, 225/60R16 Tires & Monte Carlo LS 255/60R16 Tires, |
2.32 To 3.12 (59 To 79) |
| Dimension "D" |
| Lumina & Monte Carlo , 205/70R15 Tires; Lumina Police & Taxi , 215/65R15 Tires |
10.3 To 11.1 (262 To 282) |
| Lumina LS & Police , 205/70R15 Tires; Lumina LS , 225/60R16 |
10.35 To 11.15 (263 To 283) |
| Lumina , Lumina LS , 225/60R16 Tires |
10.12 To 10.92 To (257 To 277) |
| Monte Carlo Z34, 225/60R16 Tires & Monte Carlo LS 255/60R16 Tires, |
10.09 To 10.89 (256 To 276) |
| 1998-99 Century & Regal; 1999 Lumina & Monte Carlo, |
| Dimension "A" |
23.8 (605) |
| Dimension "B" |
20.7 (526) |
| Dimension "J" & "K" |
8.00 To 8.80 (203 To 223)
8.00 To 8.80 (203 To 223) |
| Dimension "Z" |
| Century, Lumina, Monte Carlo & Regal With 225/60R16 Tires |
1.49 To 2.29 (38 To 58) |
| Lumina & Monte Carlo With 225/70R15 Tires |
1.73 To 2.53 (45 To 65) |
| Dimension "D" |
| Century, Lumina, Monte Carlo & Regal With 225/60R16 Tires |
9.64 To 10.44 (245 To 265) |
| Lumina & Monte Carlo With 225/70R15 Tires |
9.88 To 10.68 (251 To 271) |
| Intrigue |
| Dimension "A" |
23.8 (605) |
| Dimension "B" |
20.7 (526) |
| Dimension "J" |
| 1998 |
8.00 To 8.80 (203 To 223) |
| 1999 |
8.18 To 8.98 (208 To 228) |
| Dimension "K" |
| 1998 |
8.00 To 8.80 (203 To 223) |
| 1999 |
8.38 To 9.18 (213 To 233) |
| Dimension "Z" |
| 1998 With Soft Ride Suspension |
1.68 To 2.48 (43 To 63) |
| 1998 With Firm Ride Suspension |
1.43 To 2.23 (36.3 To 56.3) |
| 1999 |
1.57 To 2.37 (40 To 60) |
| Dimension "D" |
| 1998 With Soft Ride Suspension |
9.94 To 10.74 (252.7 To 277.7) |
| 1998 With Form Ride Suspension |
9.73 To 10.53 (247.4 To 267.4) |
| 1999 |
10.15 To 10.95 (258 To 278) |
RIDE HEIGHT SPECIFICATIONS ("Y" BODY)
| Application |
In. (mm) |
| Corvette |
| Dimension "A" |
35 (889) |
| Dimension "B" |
31 (787) |
| Dimension "J" |
5.73 To 6.23 (146 To 158 |
| Dimension "K" |
5.93 To 6.43 (151 To 163) |
| Dimension "D" |
4.0 To 4.5 (102 To 114) |
| Dimension "Z" |
1.48 To 1.98 (38 To 50) |
Courtesy of GENERAL MOTORS CORP.
