Front-End Discriminating Sensor: Removal

1. Before proceeding, see SERVICE PRECAUTIONS . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .
2. Remove CPA clip and disconnect sensor connector. Disconnect pigtail from pigtail clips. Remove sensor mounting fasteners and sensor from vehicle. See Fig 1.

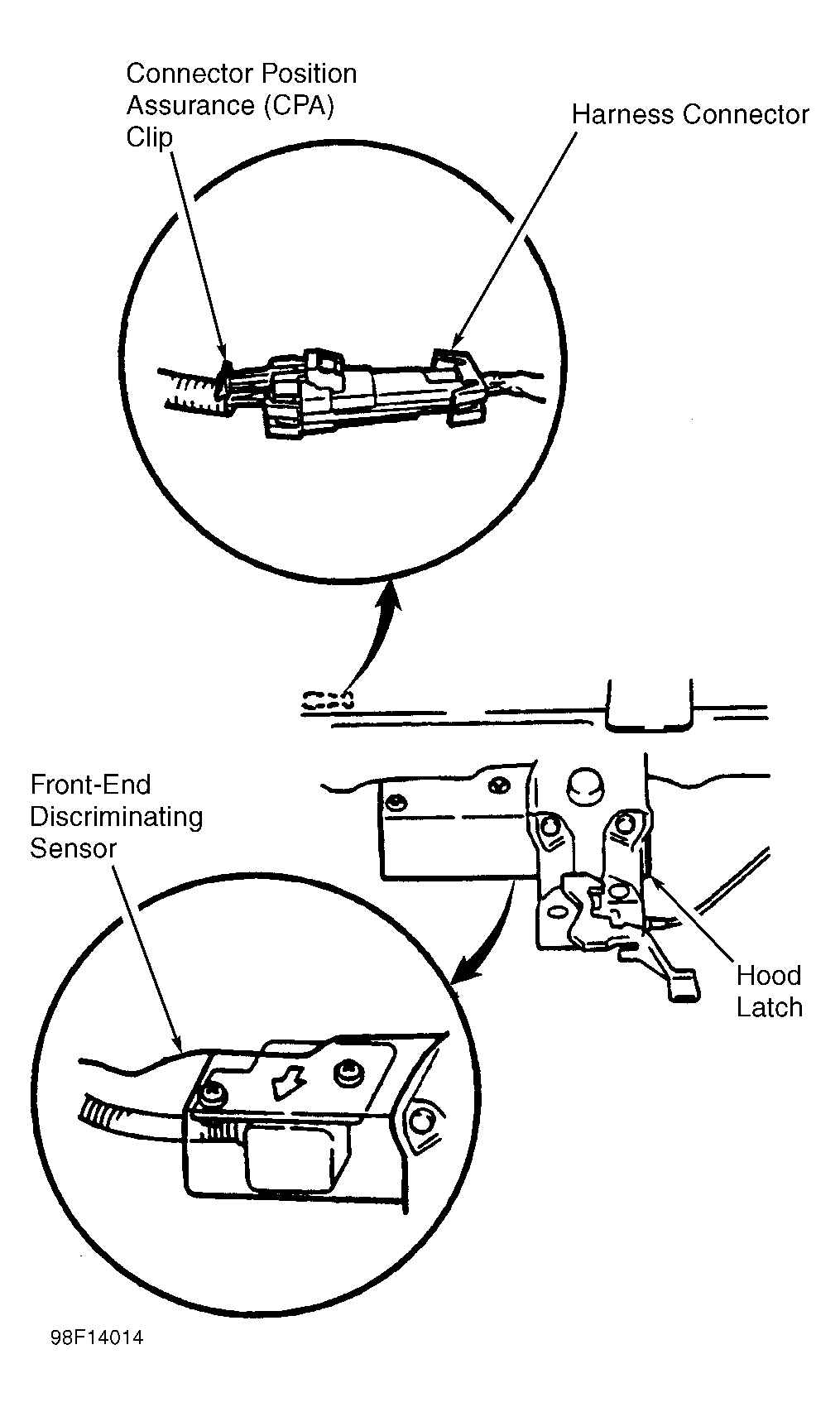

Fig 1: Removing Front-End Discriminating Sensor

Courtesy of GENERAL MOTORS CORP.
