Piston & Rod Assembly

Install piston with arrow on top of piston toward timing belt end of engine. If rod is equipped with oil hole, the oil hole should point toward intake manifold side. See Fig 1.

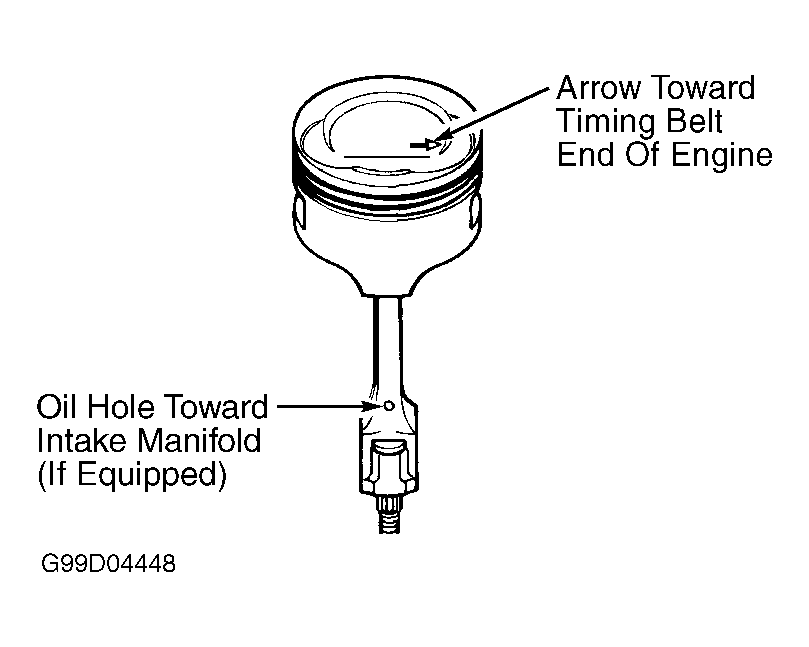

Fig 1: Aligning Piston & Connecting Rod

Courtesy of GENERAL MOTORS CORP.
