Wipers Continue To Operate With Wiper Switch In OFF Position

Disconnect junction block Black 18-pin connector C6. See Fig 1 and Fig 2 . Turn ignition switch to ON position. If wipers stop, replace front wiper motor. If wipers do not stop, check for short to battery voltage in Blue wire or Blue/Red wire between combination switch and front wiper motor. If circuits are okay, replace combination switch.

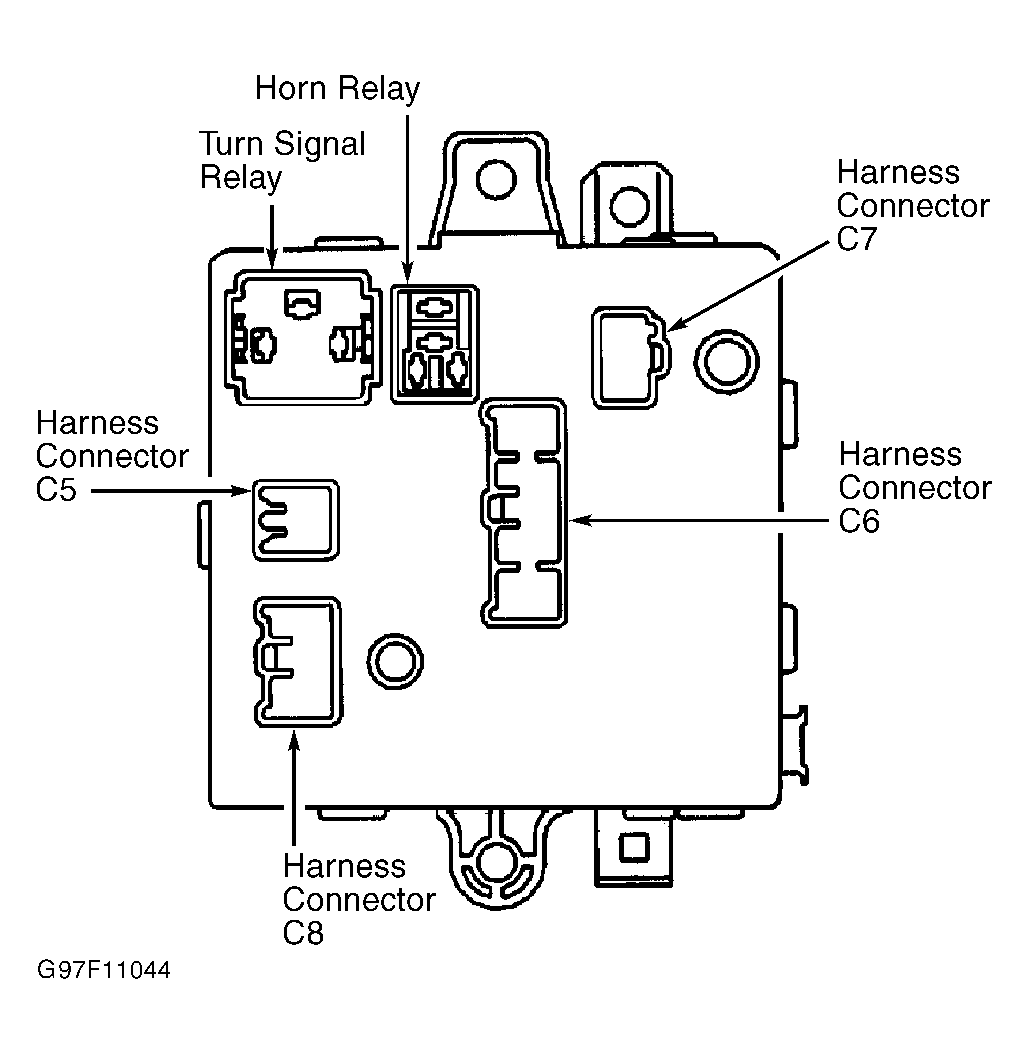

Fig 1: Locating Top Junction Block Connectors

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Junction Block 18-Pin Connector C6 Terminals

Courtesy of GENERAL MOTORS CORP.
