Spring Bushing: Installation

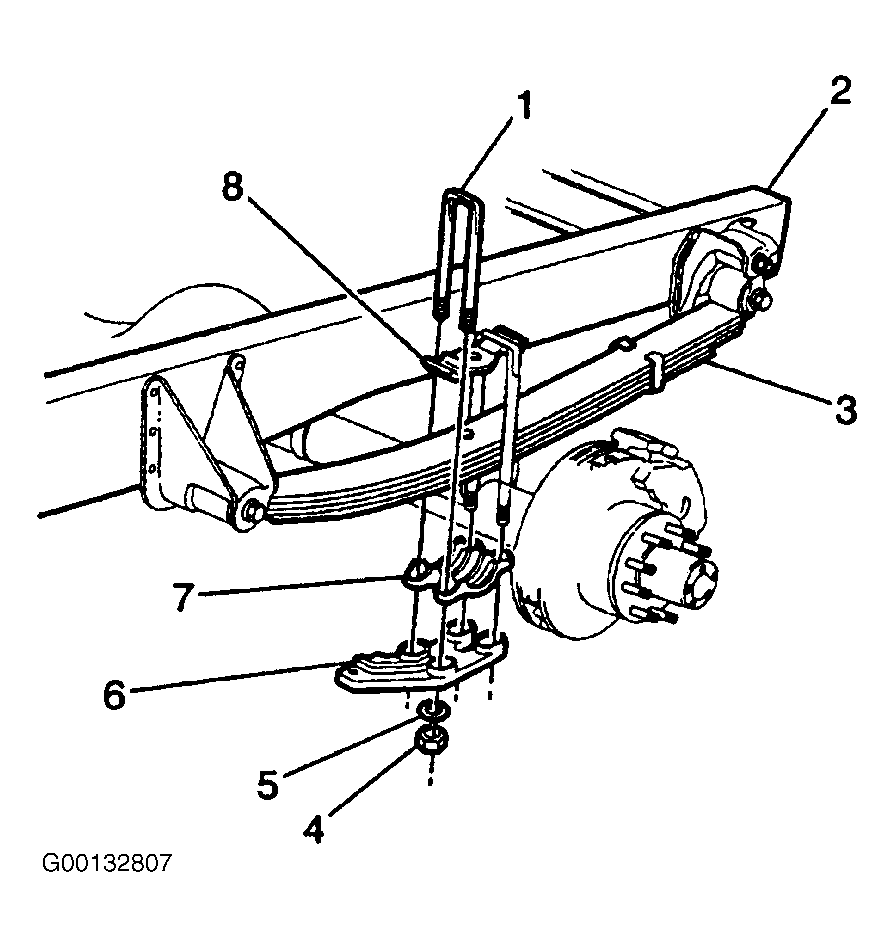

Install the bushing into the leaf spring (3). See
Figure
. Use a press to properly position the bushings.
Install the leaf spring to the vehicle.
