Component Locations

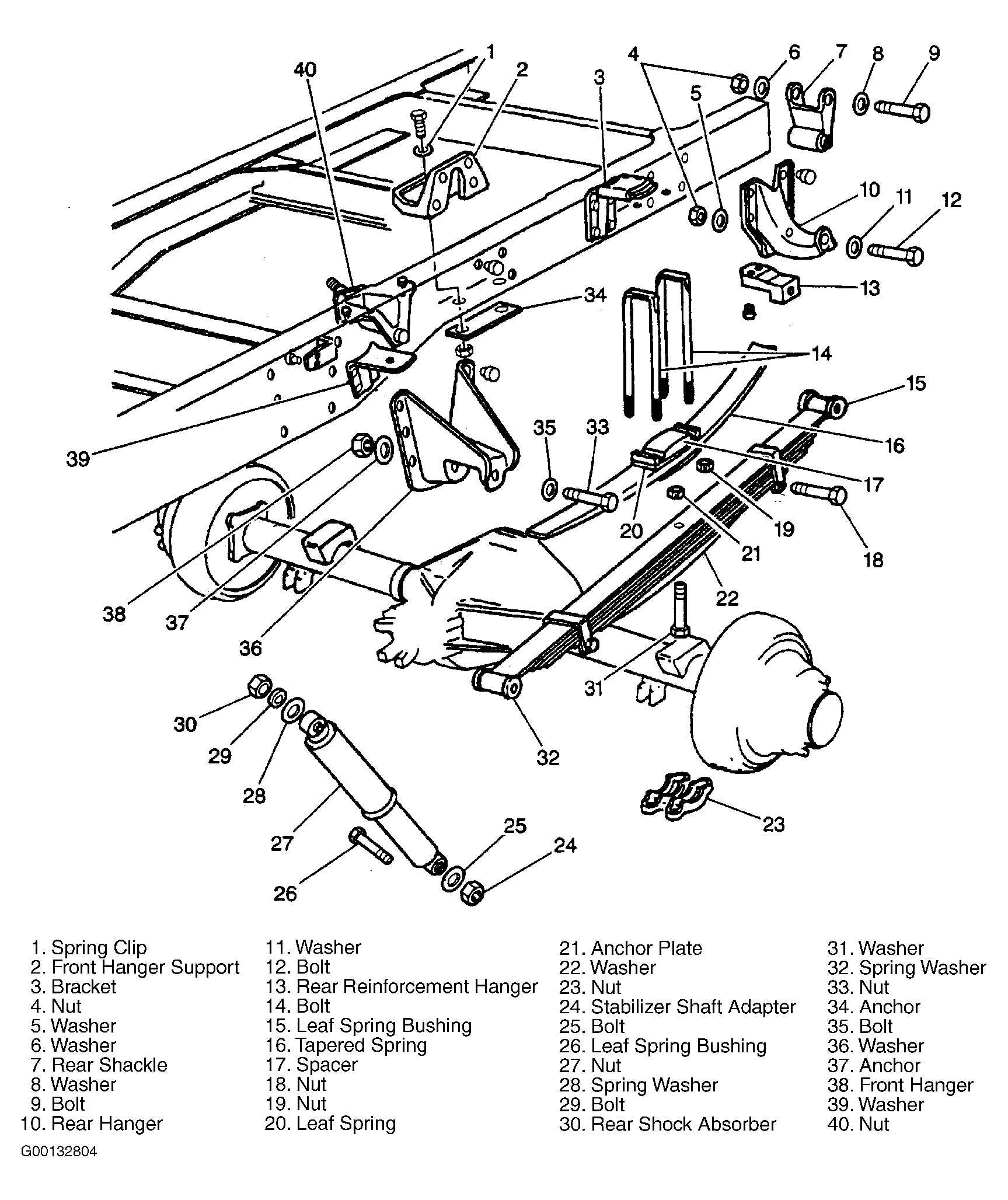

Fig 1: Exploded View Of Rear Suspension (Commercial Models)
G00132804Courtesy of GENERAL MOTORS CORP.

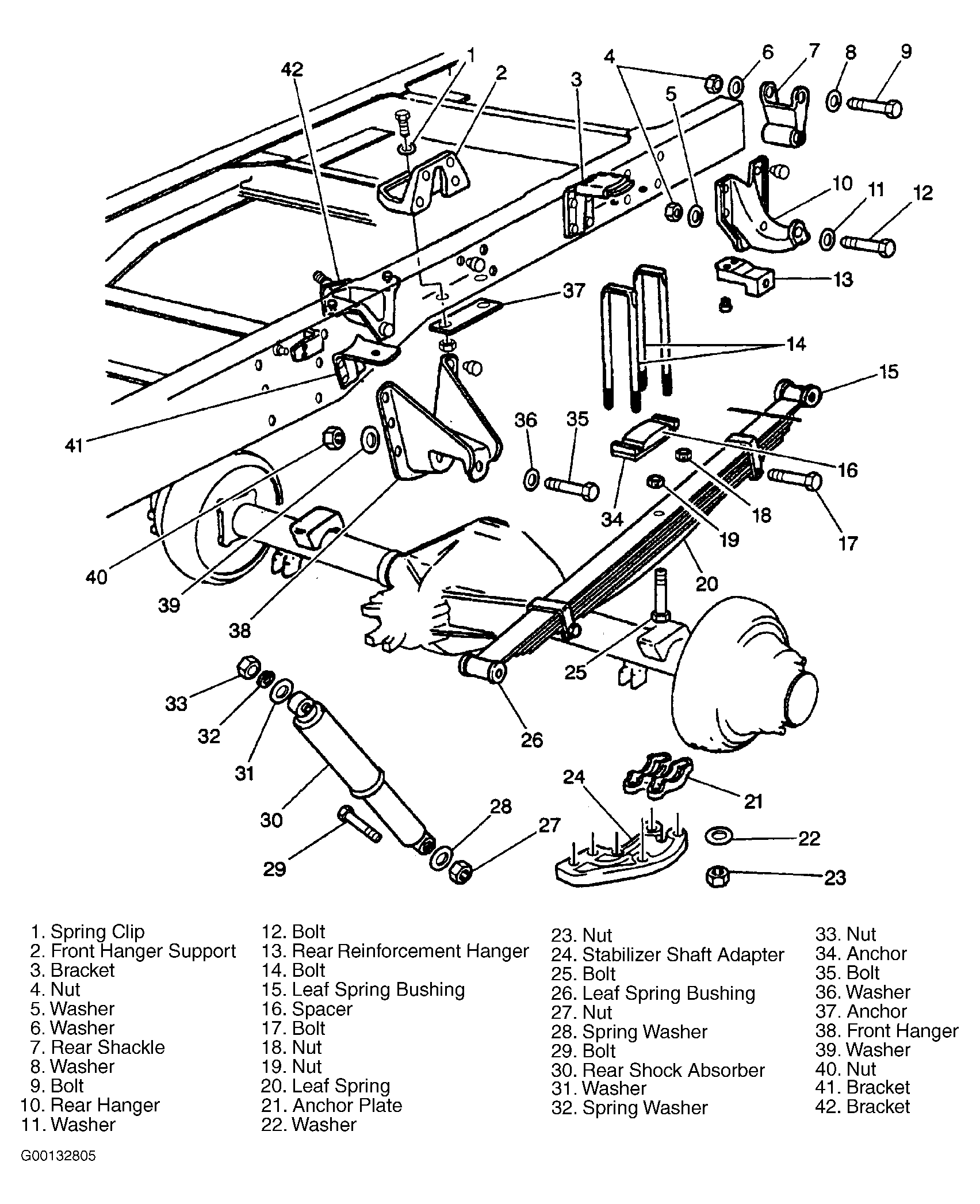

Fig 2: Exploded View Of Rear Suspension (Motorhome Models)
G00132805Courtesy of GENERAL MOTORS CORP.
