Connector Identification

WARNING: This page is about a different car, the 1997 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: To identify SIR wiring connector terminals, see Fig 1 .

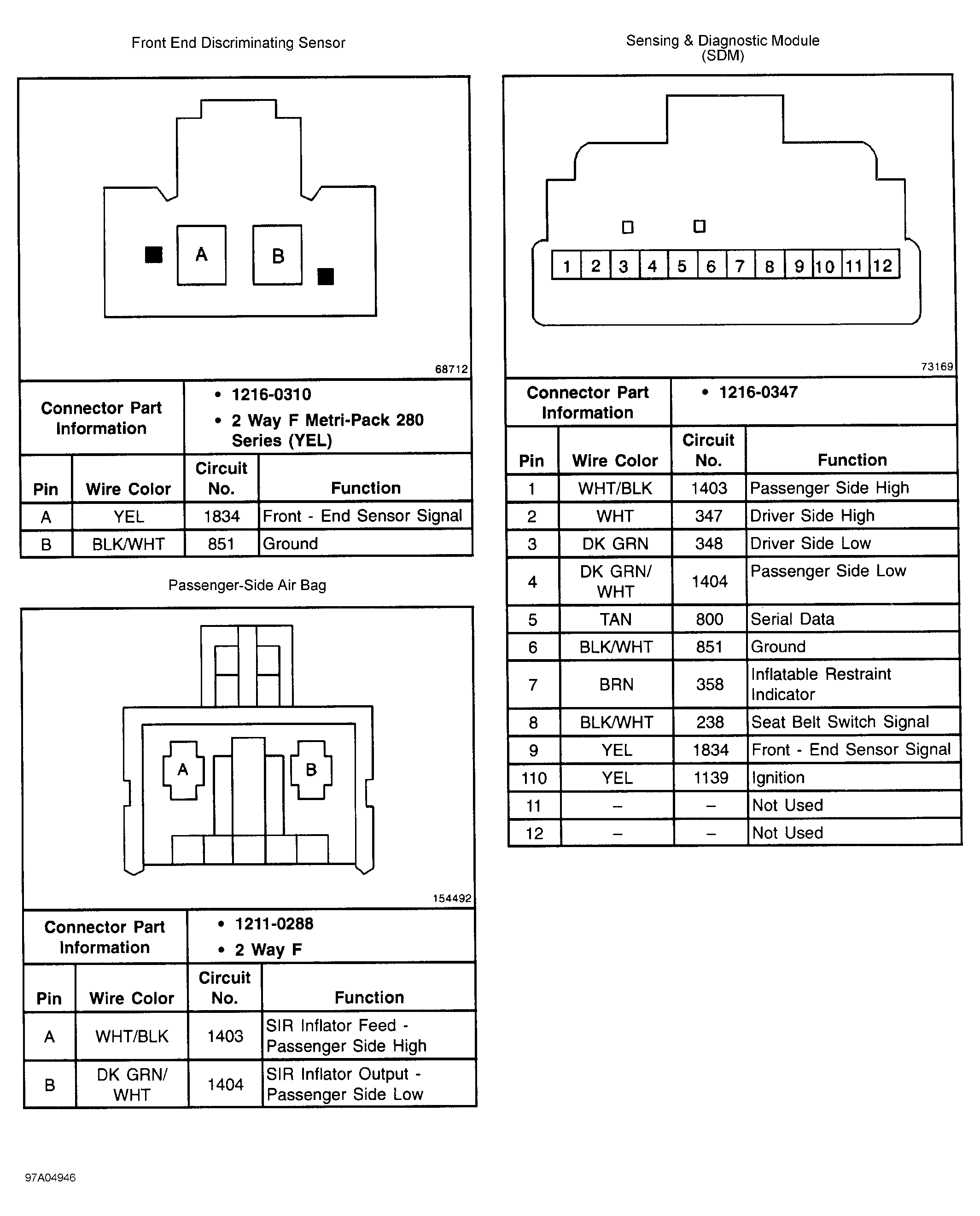

Fig 1: Connector Terminal Identification

Courtesy of GENERAL MOTORS CORP.
