Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Convenience Center | Under Driver Side Of Instrument Panel. See Fig 1. |
| Data Link Connector (DLC) | Under Driver Side Of Instrument Panel Mounted To Bottom Of Knee Bolster. See Fig 2. |
| Electric Brake Control Module (EBCM) | On Driver Side Frame Rail, Near Center Of Vehicle. See Fig 3. |

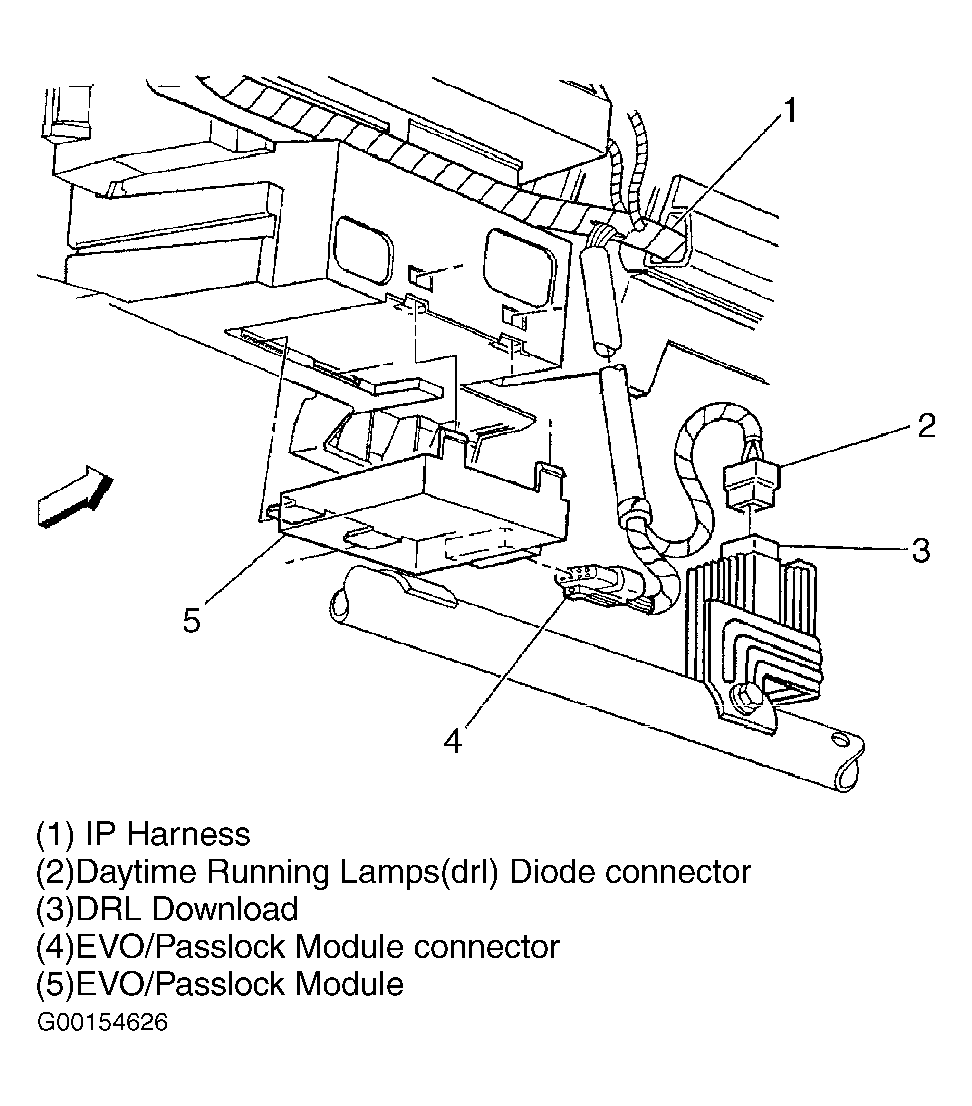

| Electronic Variable Orifice (EVO)/Passlock™ Module | Under Center Of Instrument Panel. See Fig 4. |
| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Under Driver Seat. See Fig 5. |
| Instrument Panel Fuse Block | Behind Lower Driver Side Kick Panel. See Fig 6. |
| Powertrain Control Module (PCM) | Behind Center Of Instrument Panel. See Fig 7. |
| Remote Control Door Lock Receiver (RCDLR) | Behind Instrument Panel, In Center Of Bulkhead. See Fig 8. |
| Vehicle Control Module (VCM) | Engine Compartment, On Left Fender. See Fig 9. |
| C100 | Driver Rear Of Engine Compartment At Bulkhead. See Fig 6 & Fig 9 . |
| C210 | Crossbody Harness, Under Driver Side Of Instrument Panel Near Brake Pedal, At Convenience Center. See Fig 1. |
| G101 (6.5L) | Engine Harness, Near Thermostat Housing. See Fig 10. |
| G101 ( 7.4L) | Engine Harness, Near Thermostat Housing. See Fig 11. |

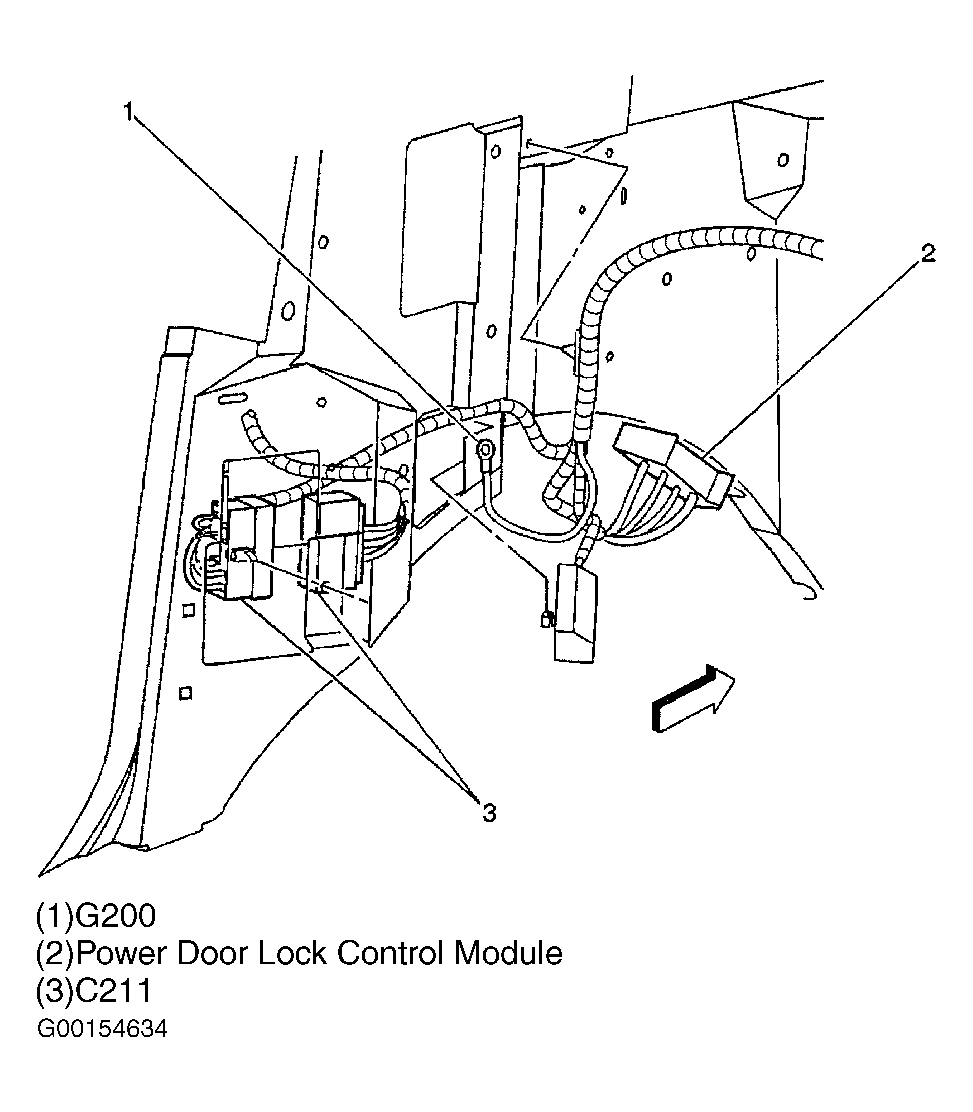

| G200 | Instrument Panel Harness, Behind Left Kick Panel, Near Instrument Panel Fuse Block. See Fig 12. |
| P100 | In Driver Rear Of Engine Compartment, At Bulkhead. See Fig 9. |
| P101 | Under Passenger Side Of Instrument Panel |
| S102 (4.3L) | Engine Harness, Near Underhood Fuse-Relay Center, Toward A/C Compressor Breakout |
| S102 (5.0L, 5.7L) | Engine Harness, Near A/C Compressor Breakout, Toward MAF Sensor Breakout |
| S102 (6.5L) | Engine Harness, Near Main Harness Breakout Leading To Blower Motor, Toward C100 Breakout |
| S102 (7.4L) | Engine Harness, Near Main Harness That Leads To A/C Compressor Breakout, Toward Generator Breakout |
| S112 | Instrument Panel Harness, Near Instrument Cluster Breakout, Toward Radio Connectors |
| S153 (4.3L) | Engine Harness, Near A/C Compressor Breakout, Toward Transmission |
| S153 (5.0 & 5.7L) | Engine Harness, Near Ignition Coil Breakout, Toward Transmission |
| S153 (6.5L) | Engine Harness, Near Main Harness Breakout Leading To Underhood Fuse/Relay Center and C100 |
| S153 (7.4L) | Engine Harness, Near C100 Breakout, Toward EGR Sensor Breakout |
| S201 | Instrument Panel Harness, Near Parking Brake Warning Switch Breakout, Toward DLC Breakout |
| S207 | Instrument Panel Harness, On VSS Buffer Breakout |
| S208 | Instrument Panel Harness, On SDM Breakout |
| S218 | Instrument Panel Harness, Near Instrument Cluster Breakout, Toward HVAC Switch Breakout |
