Connector Identification

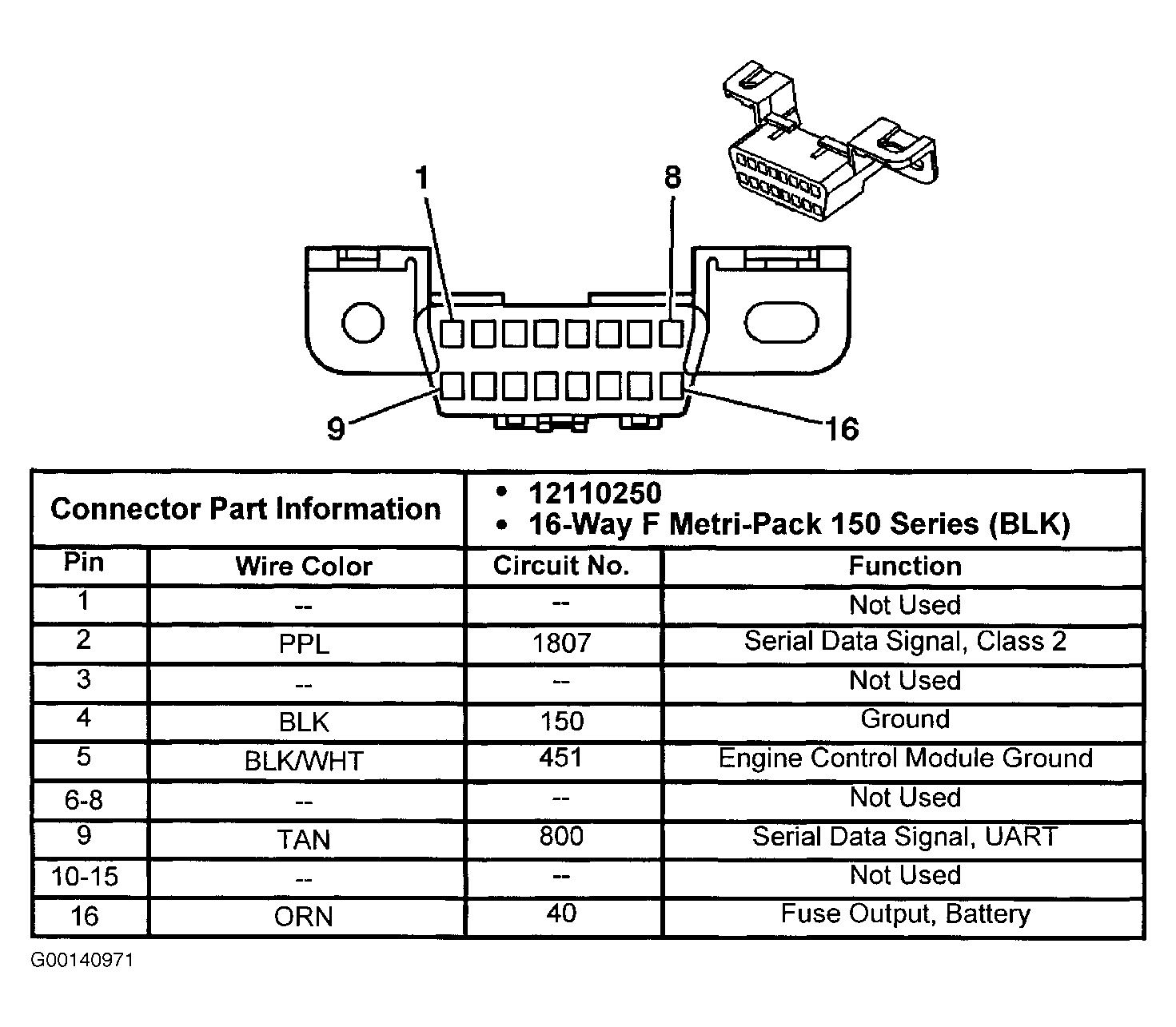

Fig 1: Identifying Data Link Connector Terminals

G00140971

Courtesy of GENERAL MOTORS CORP.
