Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|

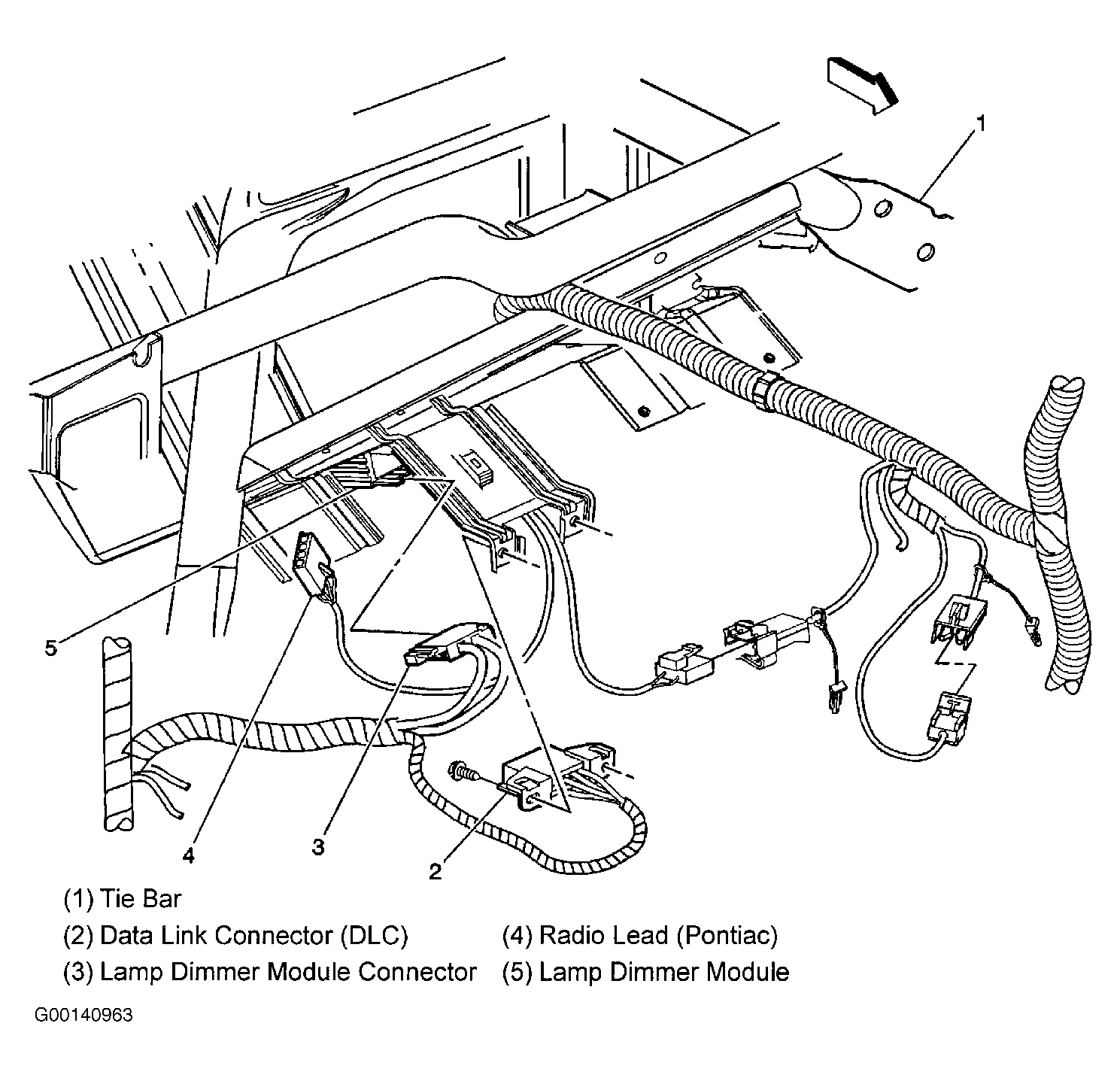

| Data Link Connector (DLC) | Driver Side Lower Instrument Panel Tie Bar. See Fig 1 . |

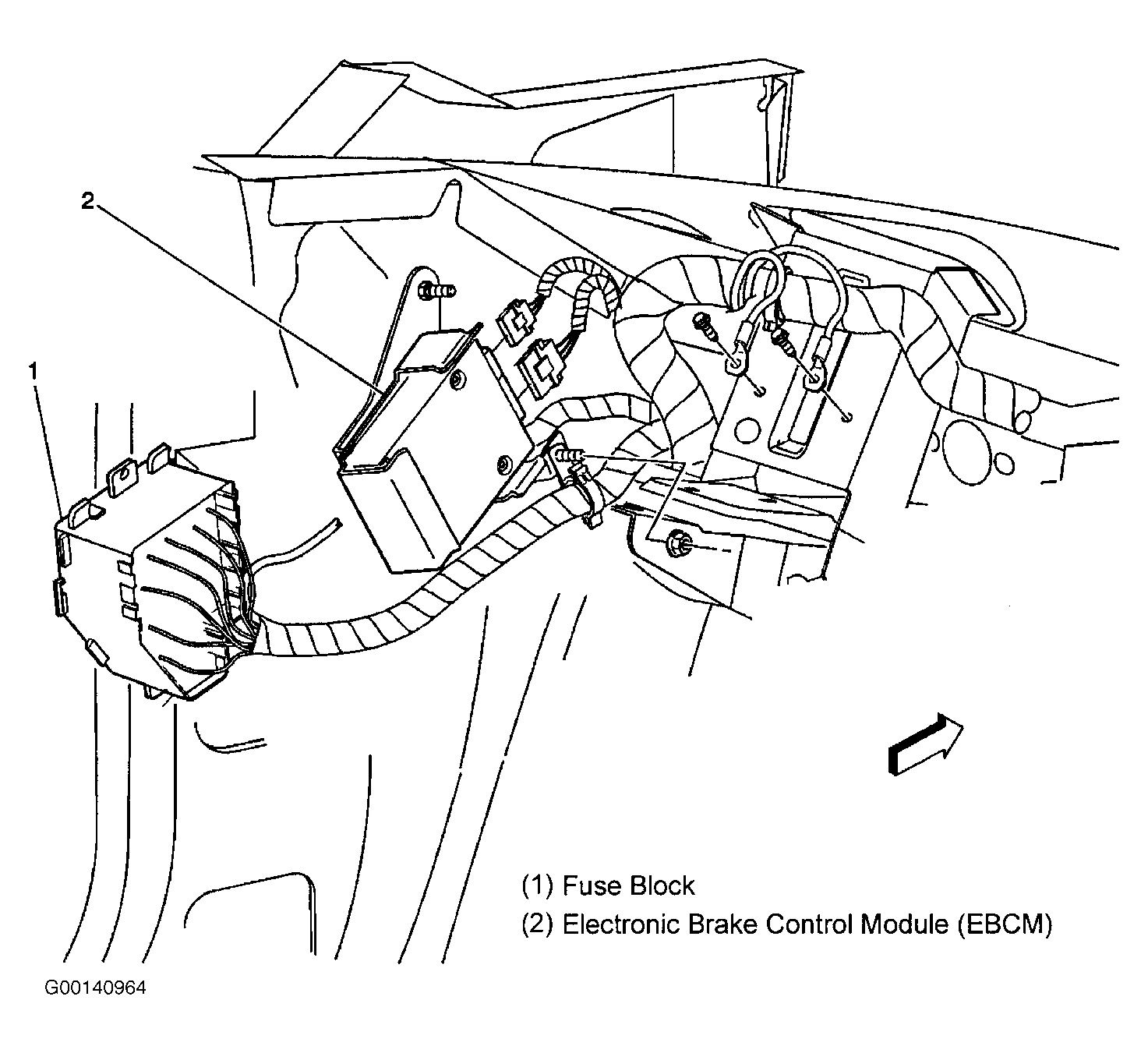

| Electric Brake Control Module (EBCM) | Driver Side Lower Instrument Panel. See Fig 2 . |
| Fuse Block | Driver Side End Of Instrument Panel Tie Bar. See Fig 2 . |

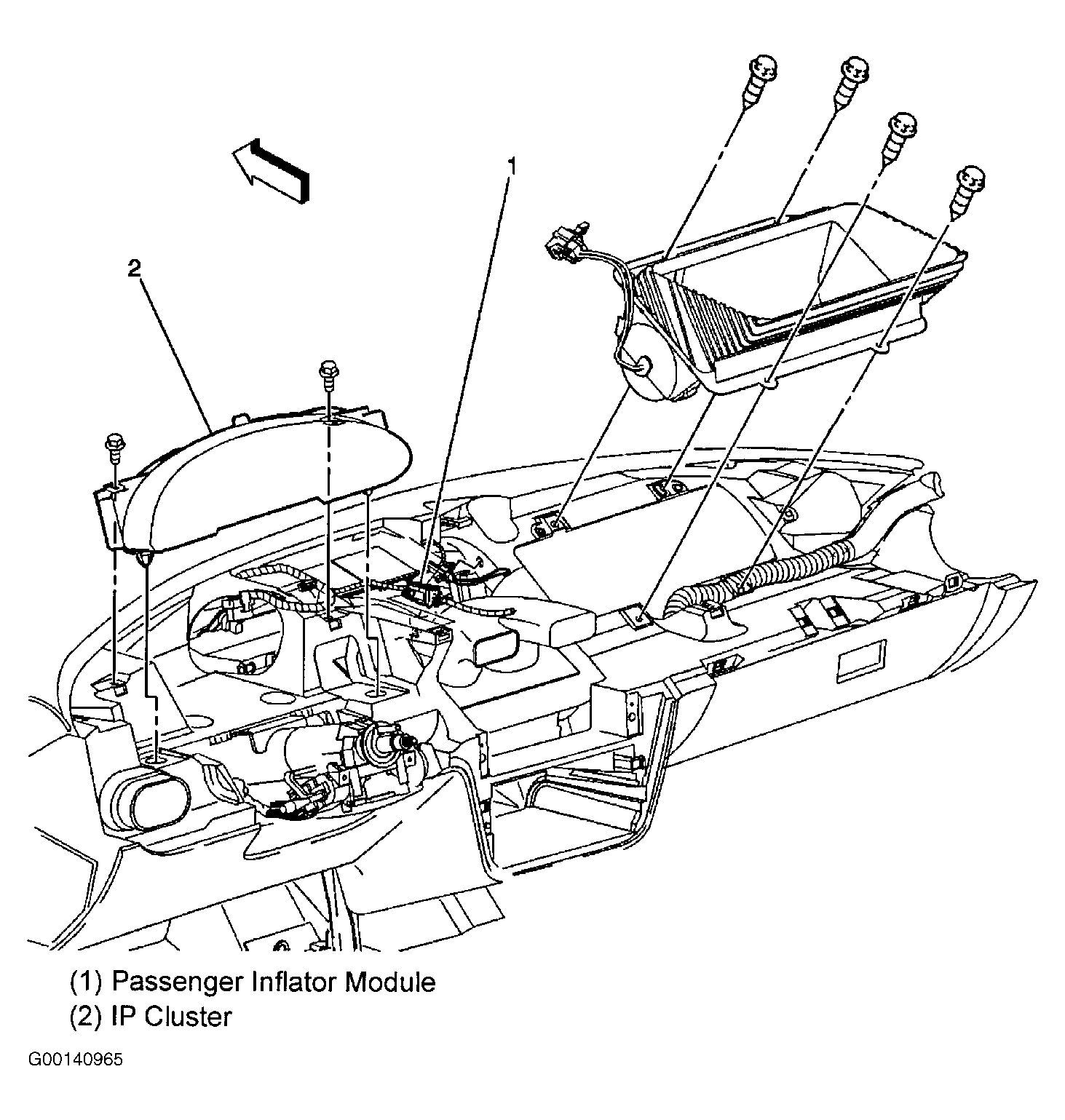

| Instrument Panel Cluster | Driver Side Instrument Panel. See Fig 3 . |

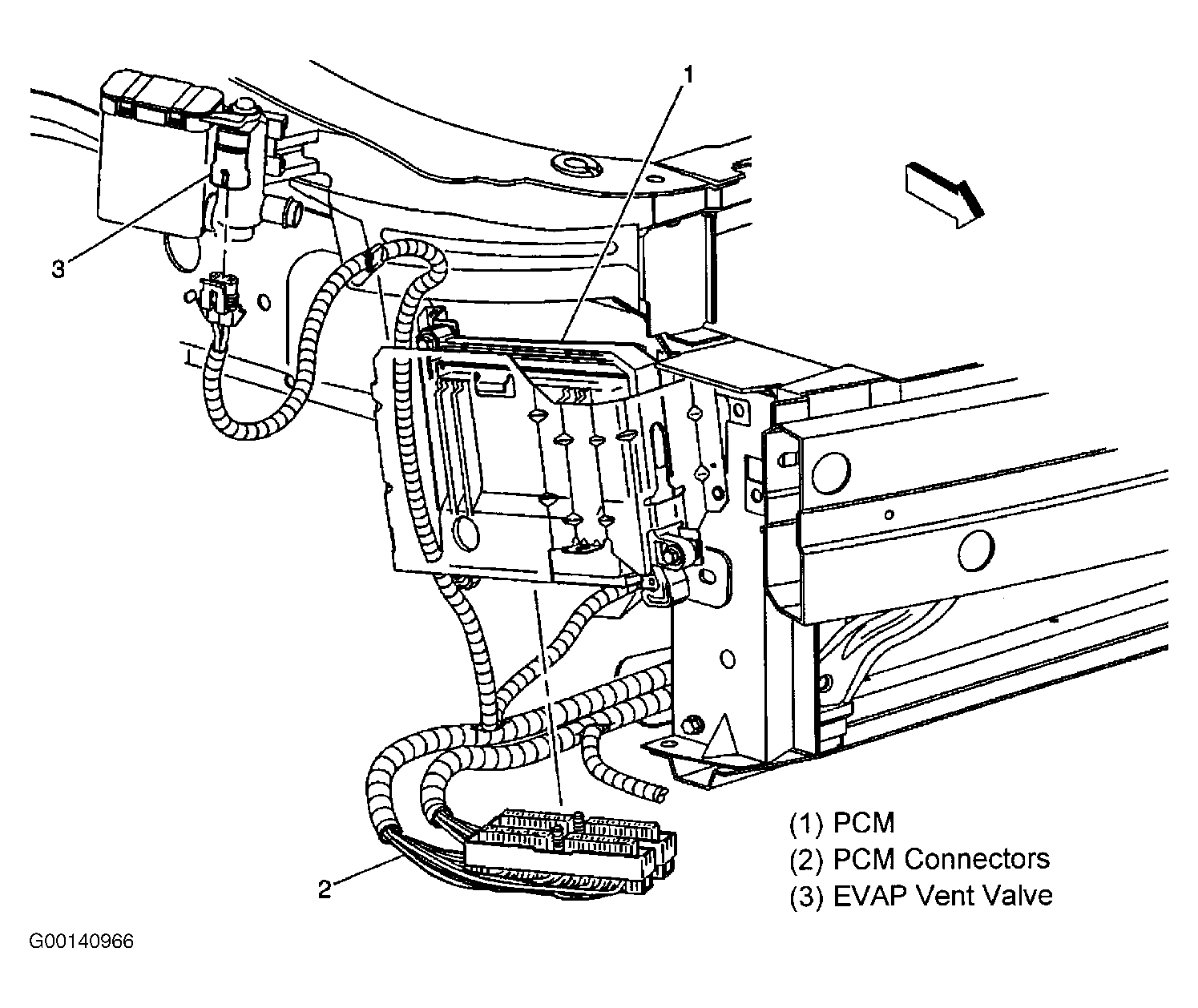

| Powertrain Control Module (PCM) | Passenger Side Front Corner Of Cabin, Behind Fascia. See Fig 4 . |

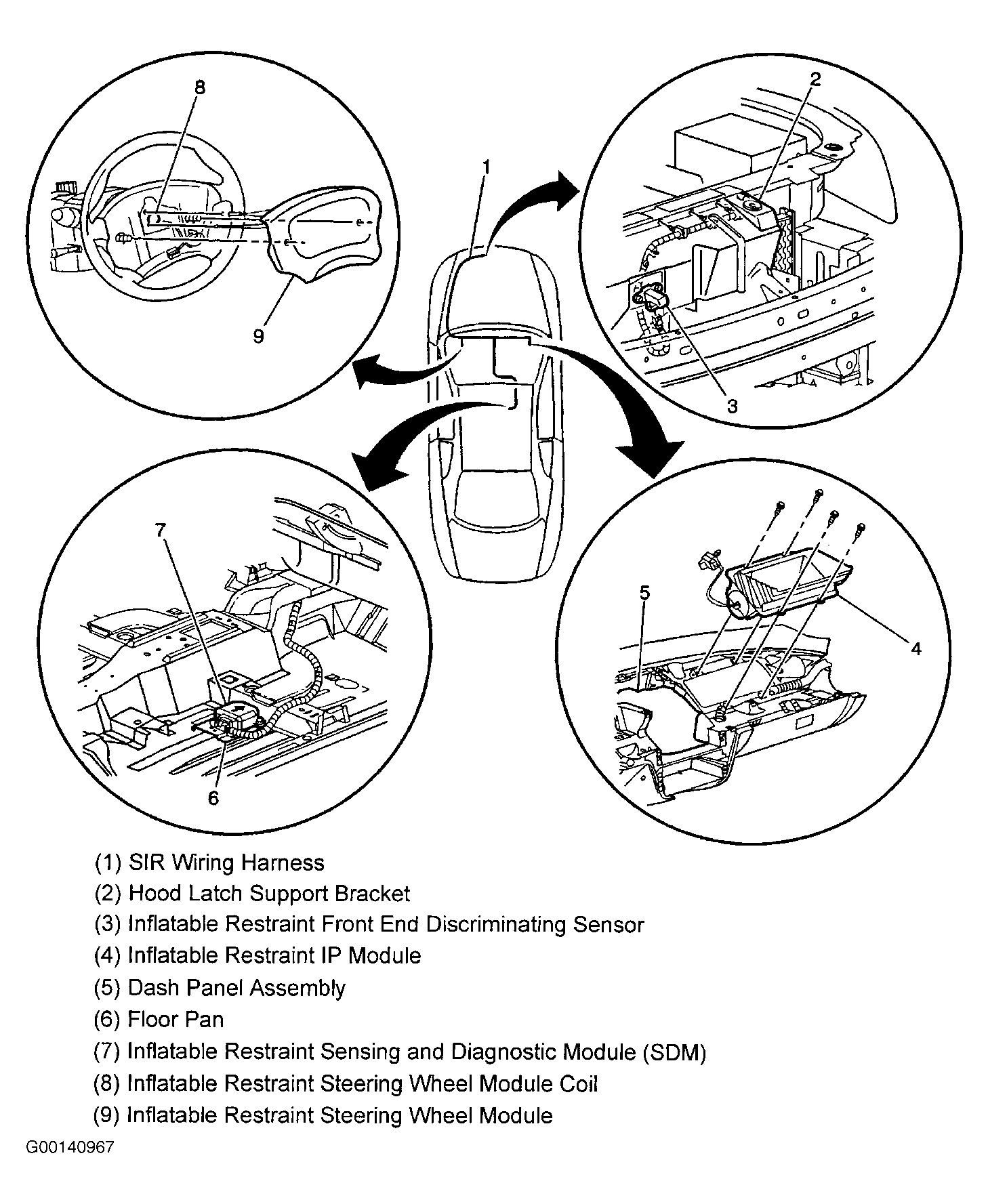

| Sensing And Diagnostic Module (SDM) | Under The Passenger Side Seat. See Fig 5 |

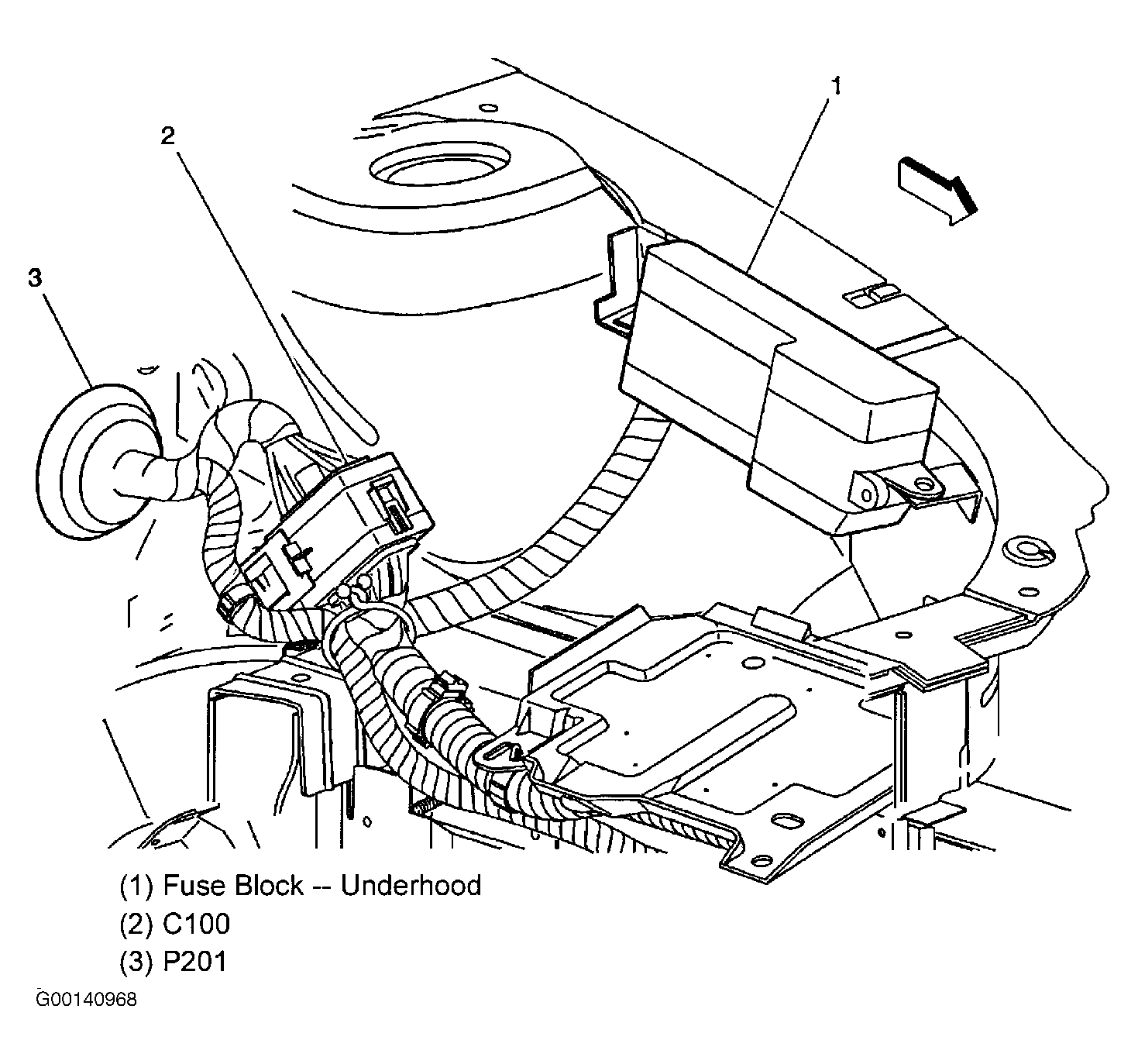

| C100 (38 Terminals) | Driver Rear Side Of Engine Compartment. See Fig 6 . |

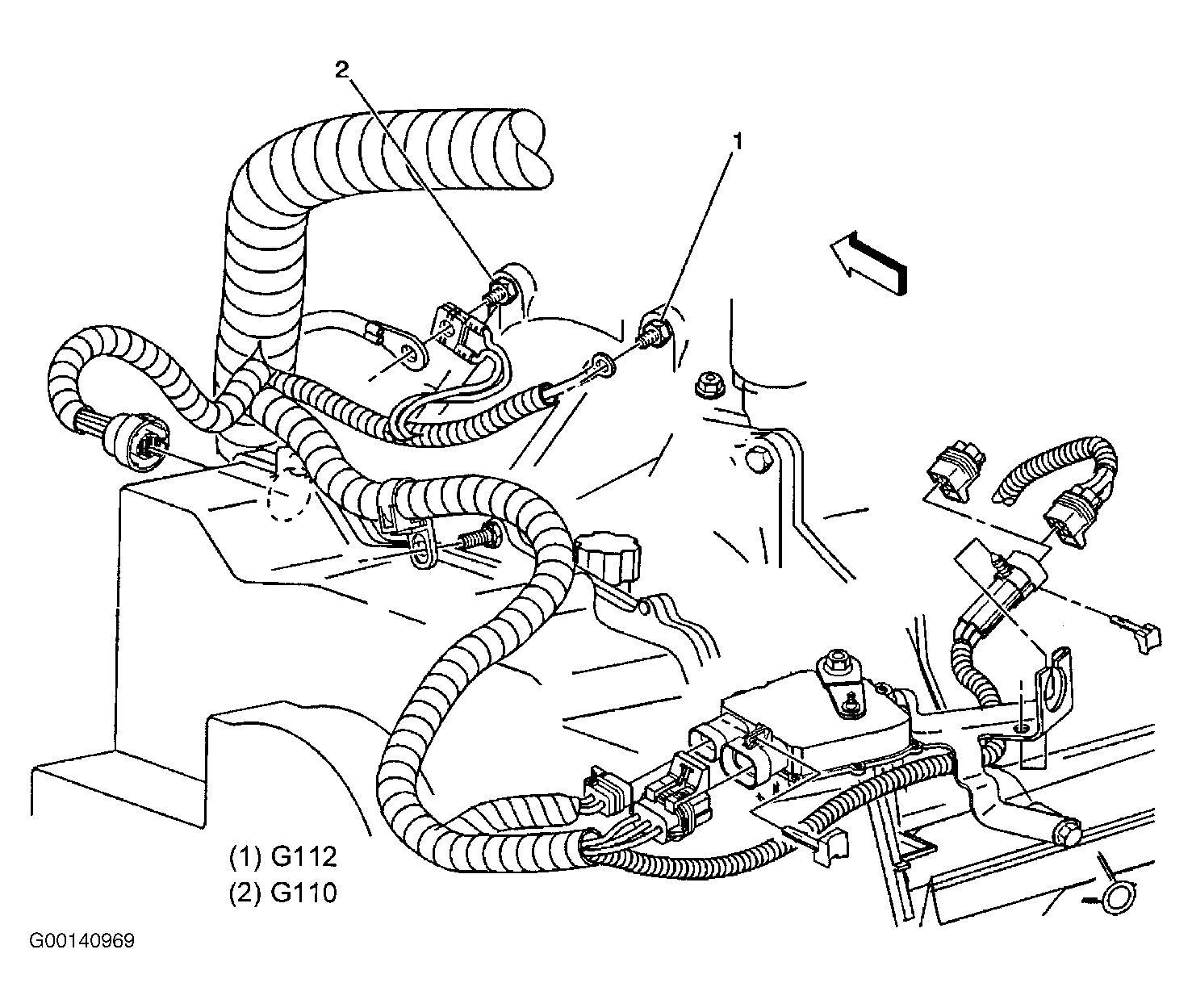

| G110 | On The Driver Side Of Engine/Transmission. See Fig 7 . |
| G204 | On Driver Side Steering Column Support Bracket |
| P201 | Driver Side Lower Instrument Panel, Below The Steering Column. See Fig 6 . |
| S171 (VIN 4) | Engine Harness, Near C100 |
| S171 (VIN 4) | Engine Harness, Near C101 |
| S205 | Dash harness, Near P201 Toward Instrument Cluster Connectors |
| S209 | Dash harness, Near P201 Toward Data Link Connector |
| S217 | Dash harness, Near P210 Toward Instrument Cluster Connectors |
| S277 | Dash harness, Near P201 Toward Data Link Connector |
