Disabling System

WARNING: This page is about a different car, the 1997 GMC Safari and 1997 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn steering wheel to place vehicle wheels in straight-ahead position. Turn ignition switch to LOCK position and remove key.

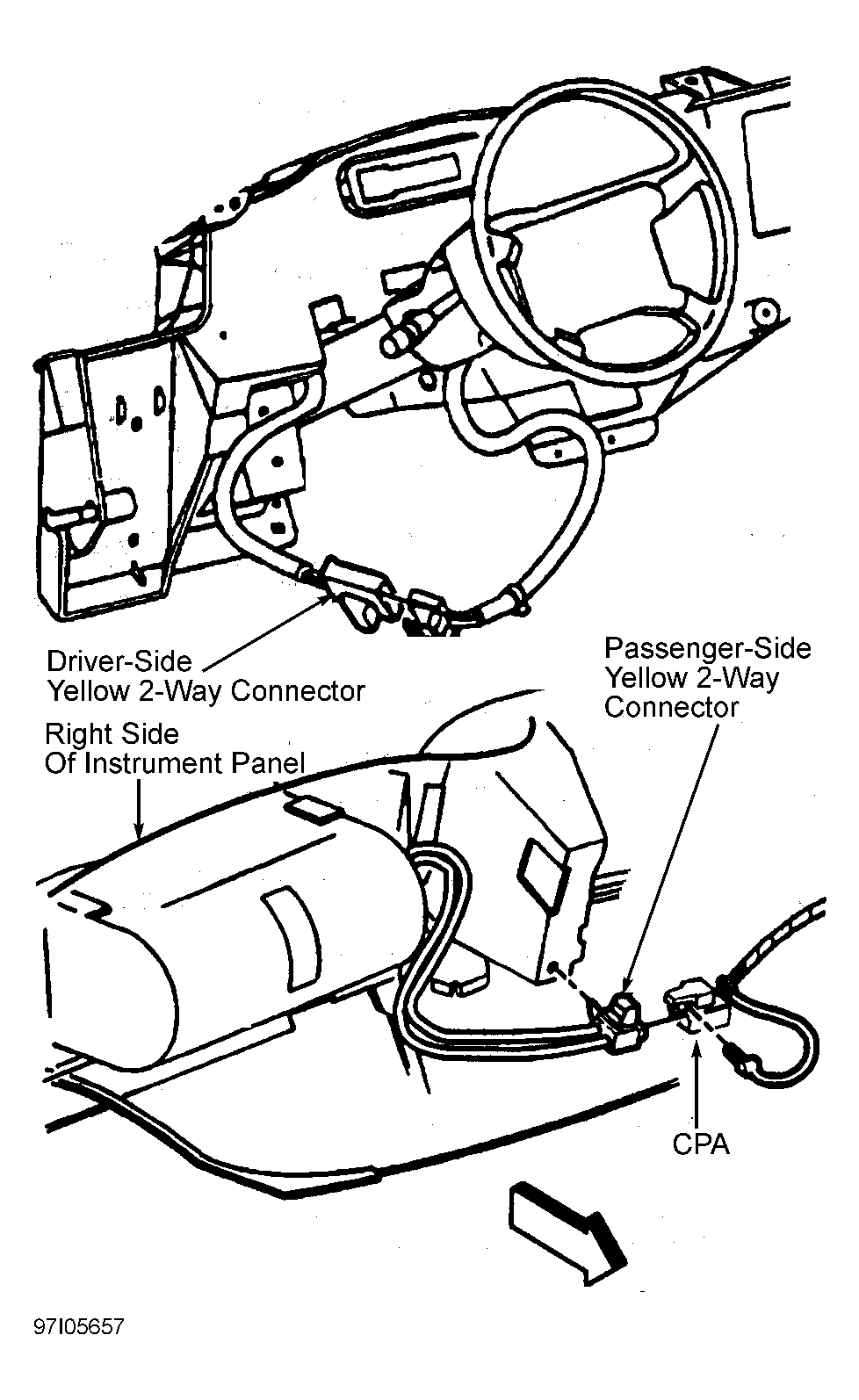

  2. Remove AIRBAG fuse from instrument panel fuse block. Remove Connector Position Assurance (CPA) clip and disconnect Yellow  2-way SIR connector at base of steering column. Remove right instrument panel extension. Disconnect CPA clip and Yellow  SIR 2-way connector under right instrument panel extension. See Figure .
  3. Wait 10 minutes before beginning service. All connectors in SIR system use CPA clips to ensure connector retention. Even if system is disconnected, use caution when working near air bags.
