Test C: Scan Tool Inoperative
Test C: Scan Tool Inoperative
Refer to flowchart. See
Fig 1
.

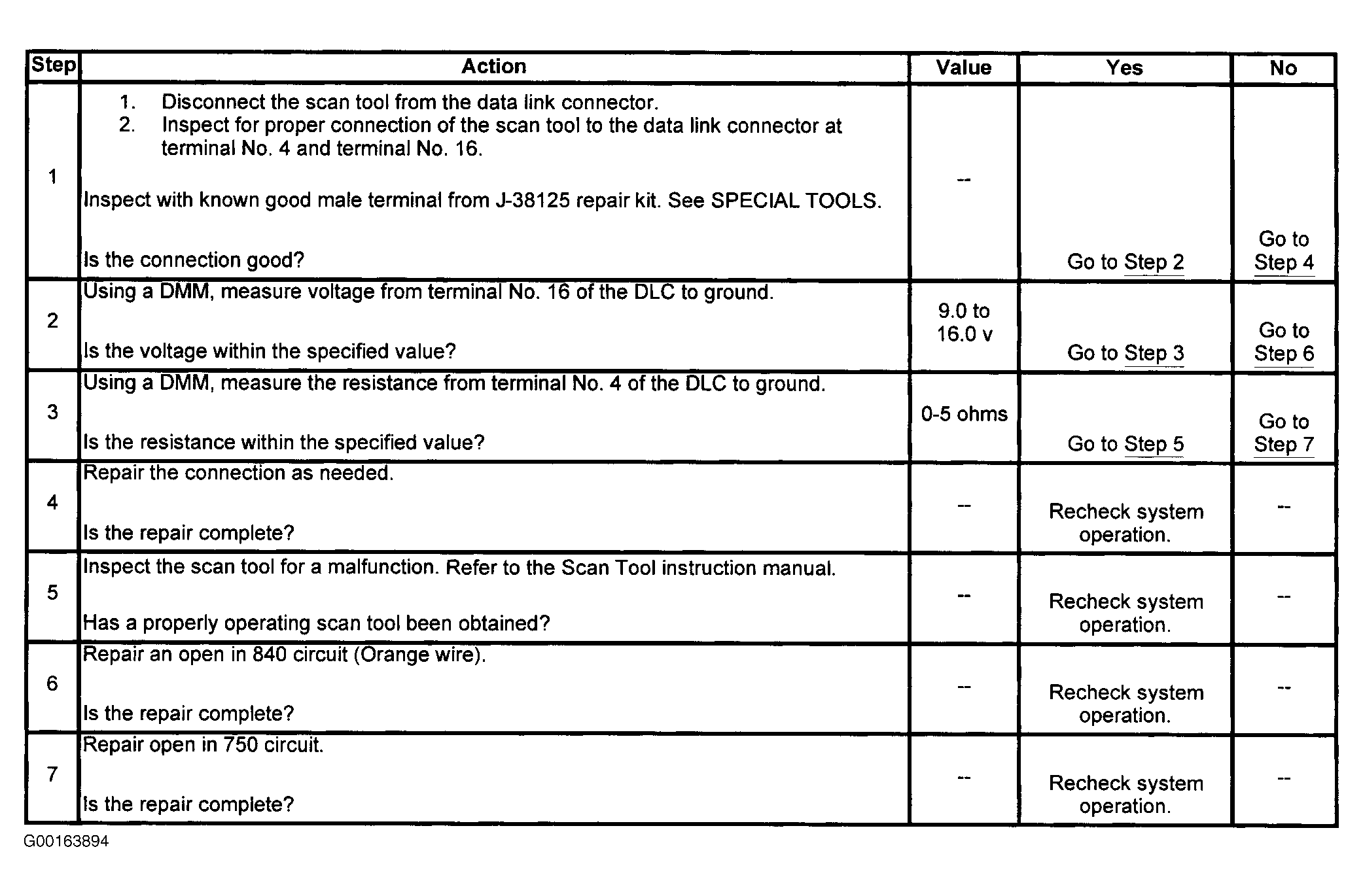

Fig 1: Scan Tool Inoperative Diagnostic Flowchart
Courtesy of GENERAL MOTORS CORP.
